PRODUCTS DETAILS

Home > Products >

Heavy Duty Insulated High Speed Door Aluminum Alloy Rapid Garage Door For Logistics Center Aisle

Products

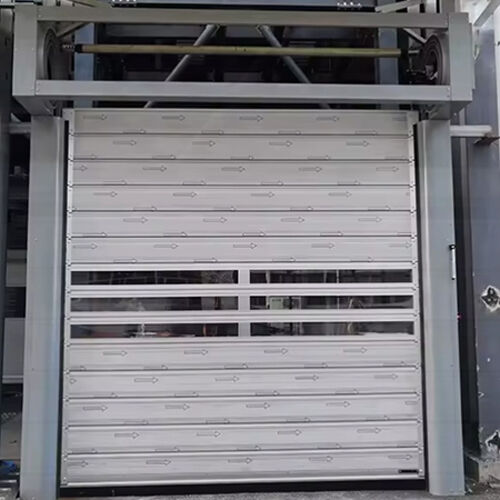

Heavy Duty Insulated High Speed Door Aluminum Alloy Rapid Garage Door For Logistics Center Aisle

MOQ:	IUNIT
Price:	Negotiable
Standard Packaging:	plywood package
Delivery Period:	10~15DAYS
Payment Method:	T/T
Supply Capacity:	300 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

ISO 9001/CE

Model Number

High Speed Spiral Door

Product Name:

Insulated High Speed Door

Opening Method:

Electric Side Opening

Material:

PVC, Aluminum

Door Type:

Polymer

Max Size:

Door Width: 1000–7000 Mm，Door Height: 1500–5000 Mm

Opening Times Of Every Day:

Less Than 500-800times

Size:

Customized Size Acceptable

Power:

0.75-1.5KW

Door Material:

Composite

Control System:

Special Servo System

Safety Device:

Buffer Device At The Bottom Of Door To In Sure Of The Safety

Structure Of Door:

Five Type ,Elliptical Helical Structure ，complex Called Elliptical Helical Structure,L Shape Structure. Vertical Structure And Horizontal Structure.

Opening Speed:

0.6-1.5 M/S (adjustable)

Closing Speed:

0.6 M/S (adjustable)

Wind Resistance:

Maximum Wind Speed Of 8

Application:

Logistics Center Aisle

Highlight:

Heavy Duty Insulated High Speed Door

High Speed Aluminum Insulated Door

Aluminum Alloy Rapid Garage Door

Product Description

Aluminum Alloy Rapid Spiral Door High Speed Heavy Duty Insulated For Logistics Center Aisle

Product Overview

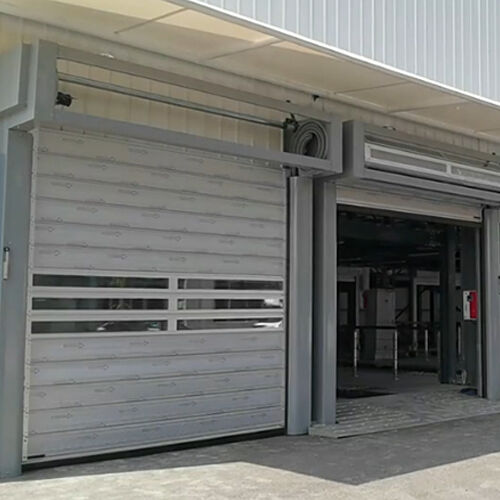

The Spiral High Speed Door is widely used in logistics center passages, where forklifts, pallet trucks, and automated vehicles move continuously between different functional zones.
In high-throughput logistics environments, a Rigid Spiral High Speed Door ensures fast opening, stable operation, and long service life under intensive daily use.

Also known as a Turbo High Speed Door or Spiral Lift High Speed Door, this solution is designed for modern logistics hubs and distribution centers.

Product Specifications

Parameter	Description
Maximum Available Size	Door width: 1000–7000 mm Door height: 1500–5000 mm
Lifting Mechanism	The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel.
Operating speed	Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable)
Door panel materials	The aluminum alloy door panel has a width of 120mm and a standard thickness of 24mm, with two reinforcing ribs inside. The door panel is filled with polyurethane foam, the aluminum alloy door sheet thickness is 1.2mm, the door hinge thickness is 45mm, and the spiral track thickness is 10mm. Various colors are available.
Sealing performance	Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door.
Wind resistance	Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale.
Manual functions	In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction.
Switching method	Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation.
Reserved port	The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility.

Details Parts of Door

Heavy Duty Insulated High Speed Door Aluminum Alloy Rapid Garage Door For Logistics Center Aisle 0

Heavy Duty Insulated High Speed Door Aluminum Alloy Rapid Garage Door For Logistics Center Aisle 1

Advantages of Spiral High Speed Doors in Logistics Passages

Supports continuous forklift and AGV traffic
Reduces congestion in logistics corridors
Operates as a Low Noise High Speed Door
Handles thousands of cycles per day
Requires minimal maintenance
Enhances safety and operational efficiency

Detailed Feature Focus: High-Cycle Servo Control System

In logistics centers, doors may open and close thousands of times daily.
The Rigid Spiral High Speed Door uses a servo-driven system with closed-loop control for torque, speed, and position, ensuring accurate operation even under constant use.

This makes it a reliable High Cycle Industrial High Speed Door for logistics environments.

Comparison with Other High Speed Door Types

Spiral High Speed Door vs PVC Roll-Up Door

PVC doors wear quickly under frequent forklift impact and lack rigidity.

Spiral High Speed Door vs Sectional Door

Sectional doors cannot meet the speed and cycle requirements of logistics passages.

Spiral High Speed Door vs Stacking Door

Stacking doors are suitable for very large openings but operate at lower speeds.

FAQs – Spiral High Speed Door for Logistics Center Passages

Q1: Is this door suitable for high-frequency forklift traffic?
Yes. It is designed as a High Cycle Industrial High Speed Door.

Q2: Can it integrate with logistics automation systems?
Yes. It supports radar, loop sensors, and interlock signals.

Q3: Does it improve safety in busy corridors?
Yes. Vision panels and fast response reduce collision risks.

Q4: Do you support OEM and export projects?
Yes. We provide OEM Spiral High Speed Door solutions worldwide.

Get a Quote for Spiral High Speed Door

Looking for a reliable Spiral High Speed Door Supplier for logistics center passages?
Contact our Turbo High Speed Door Factory to receive technical support, drawings, and competitive pricing.

Heavy Duty Insulated High Speed Door Aluminum Alloy Rapid Garage Door For Logistics Center Aisle 2

Heavy Duty Insulated High Speed Door Aluminum Alloy Rapid Garage Door For Logistics Center Aisle 3
