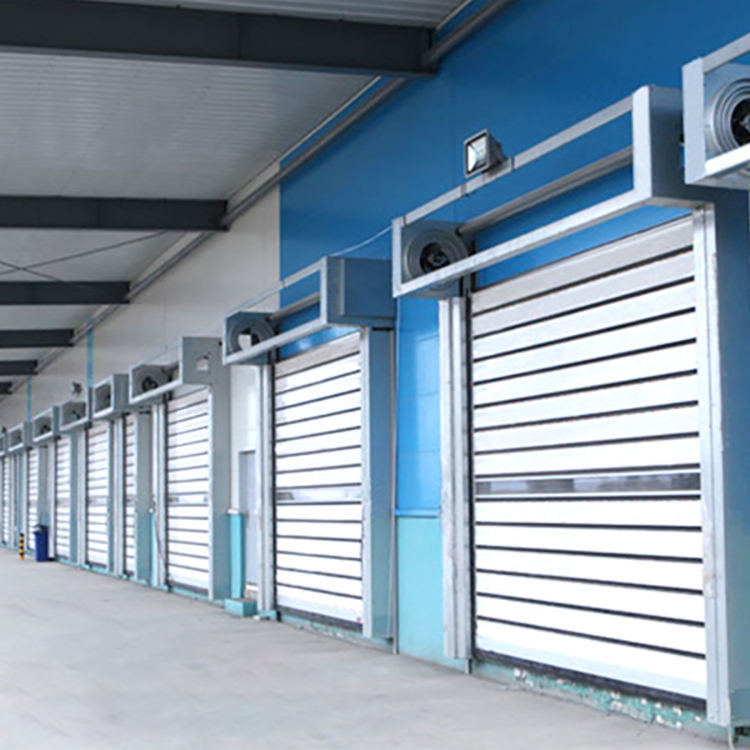

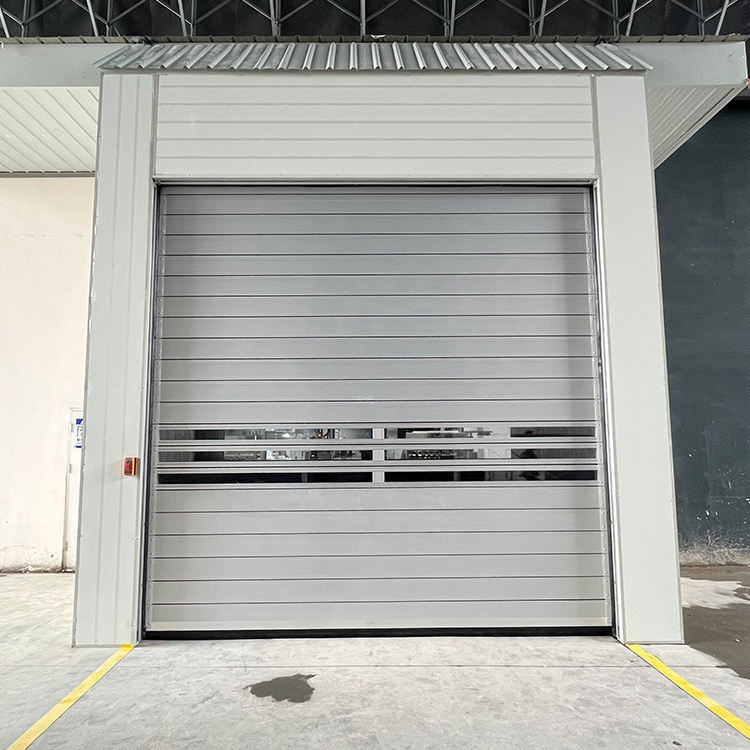

Automatic Commercial Spiral High Speed Door Exterior Aluminum Rapid Garage Door
  • name
  • name

Automatic Commercial Spiral High Speed Door Exterior Aluminum Rapid Garage Door

MOQ: IUNIT
Price: Negotiable
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Spiral Door
Product Name:
Spiral High Speed Door
Opening Method:
Electric Side Opening
Material:
PVC, Aluminum
Door Type:
Polymer
Max Size:
Door Width: 1000–7000 Mm，Door Height: 1500–5000 Mm
Opening Times Of Every Day:
Less Than 500-800times
Size:
Customized Size Acceptable
Power:
0.75-1.5KW
Door Material:
Composite
Control System:
Special Servo System
Safety Device:
Buffer Device At The Bottom Of Door To In Sure Of The Safety
Structure Of Door:
Five Type ,Elliptical Helical Structure ，complex Called Elliptical Helical Structure,L Shape Structure. Vertical Structure And Horizontal Structure.
Opening Speed:
0.6-1.5 M/S (adjustable)
Closing Speed:
0.6 M/S (adjustable)
Wind Resistance:
Maximum Wind Speed Of 8
Application:
Electronic Manufacturing Factories
Highlight:

Automatic Spiral High Speed Door

,

Commercial Spiral High Speed Door

,

Exterior Aluminum Rapid Garage Door

Product Description

Electrical Control System Automatic Commercial Quick Speed Exterior Aluminum Rapid Spiral Garage Door For Electronic Manufacturing Factories

Product Overview

Electronic manufacturing factories demand clean, stable, and highly efficient production environments. From PCB assembly and component processing to final testing and packaging, frequent internal logistics must be controlled without introducing dust, airflow disturbance, or operational delays.

The Spiral High Speed Door is designed to meet the strict requirements of electronic manufacturing plants. With a rigid aluminum structure, non-contact spiral track, and servo motor control, it enables fast access between production zones while supporting clean and controlled environments.

Also known as a Turbo High Speed Door, Rigid Spiral High Speed Door, or Spiral Lift High Speed Door, it is widely adopted in modern electronics factories.

Product Specifications

Parameter Description
Maximum Available Size Door width: 1000–7000 mm
Door height: 1500–5000 mm
Lifting Mechanism The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel.
Operating speed Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable)
Door panel materials The aluminum alloy door panel has a width of 120mm and a standard thickness of 24mm, with two reinforcing ribs inside. The door panel is filled with polyurethane foam, the aluminum alloy door sheet thickness is 1.2mm, the door hinge thickness is 45mm, and the spiral track thickness is 10mm. Various colors are available.
Sealing performance Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door.
Wind resistance Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale.
Manual functions In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction.
Switching method Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation.
Reserved port The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility.

Typical Applications in Electronic Manufacturing Plants

  • PCB assembly workshops

  • SMT production areas

  • Electronic component processing zones

  • Clean production corridors

  • Finished product packaging areas

  • Internal logistics channels

These areas benefit from controlled airflow and rapid access, making spiral doors an ideal solution.

Key Features of Spiral High Speed Doors

Rigid Aluminum Door Panels

High-strength aluminum panels offer excellent rigidity and long service life, suitable for high-traffic electronics factories.

Non-Contact Spiral Track System

The spiral track allows panels to lift without friction, reducing wear, noise, and particle generation.

Servo Motor Drive Technology

A servo motor system ensures precise positioning, fast response, and smooth acceleration during frequent cycles.

Low Noise Operation

Quiet performance helps maintain a stable working environment for precision electronic assembly.

Advantages of Spiral High Speed Doors in Electronics Factories

  • Improves production efficiency and logistics flow

  • Supports clean zone separation

  • Reduces dust and airflow interference

  • Suitable for large openings and high-frequency use

  • Lower maintenance compared to fabric doors

This makes it a preferred high speed door for electronic manufacturing plants.

Detailed Parts Of Door

Automatic Commercial Spiral High Speed Door Exterior Aluminum Rapid Garage Door 0

Automatic Commercial Spiral High Speed Door Exterior Aluminum Rapid Garage Door 1

FAQs

Is a Spiral High Speed Door suitable for electronic manufacturing plants?
Yes, it is ideal for PCB, SMT, and electronic assembly workshops.

Can it operate continuously throughout the day?
Yes, it is designed for high-cycle industrial applications.

Does it help reduce dust movement?
Yes, fast operation and rigid panels help limit airflow disturbance.

Do you support OEM and export projects?
Yes, we are an experienced Spiral High Speed Door manufacturer and supplier.

Automatic Commercial Spiral High Speed Door Exterior Aluminum Rapid Garage Door 2

Automatic Commercial Spiral High Speed Door Exterior Aluminum Rapid Garage Door 3
Get a Quote for Spiral High Speed Door

Looking for a Spiral High Speed Door for electronic manufacturing factories?
Contact a professional Spiral High Speed Door supplier for technical support and customized pricing.
