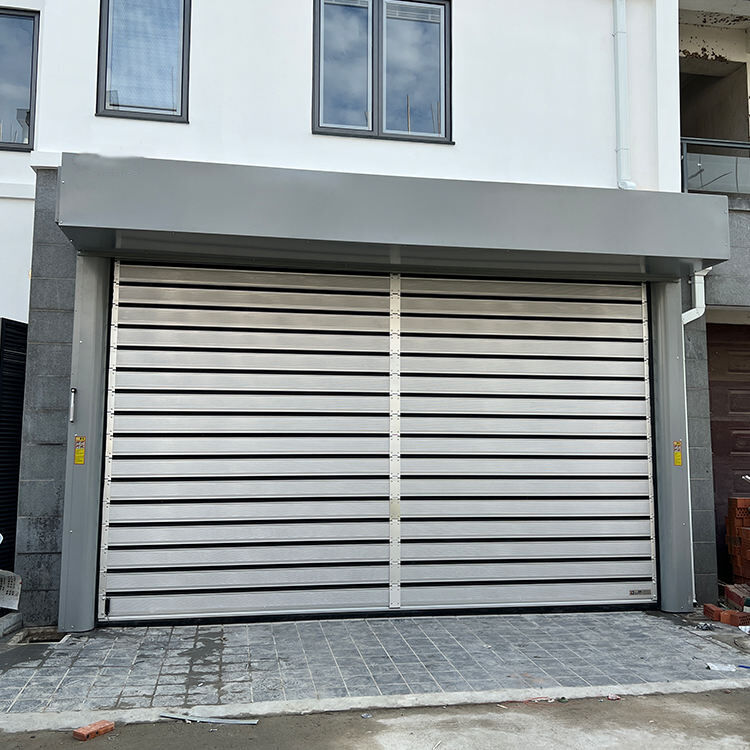

High Speed Turbo Garage Door 0.75KW-1.5KW Spiral Rolling Door With Galvanized Frame
  • name
  • name

High Speed Turbo Garage Door 0.75KW-1.5KW Spiral Rolling Door With Galvanized Frame

MOQ: IUNIT
Price: Negotiable
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Spiral Door
Product Name:
Turbo Garage Door
Opening Method:
Electric Side Opening
Material:
PVC, Aluminum
Door Type:
Polymer
Max Size:
Door Width: 1000–7000 Mm，Door Height: 1500–5000 Mm
Opening Times Of Every Day:
Less Than 500-800times
Size:
Customized Size Acceptable
Door Material:
Composite
Power:
0.75-1.5KW
Control System:
Special Servo System
Safety Device:
Buffer Device At The Bottom Of Door To In Sure Of The Safety
Structure Of Door:
Five Type ,Elliptical Helical Structure ，complex Called Elliptical Helical Structure,L Shape Structure. Vertical Structure And Horizontal Structure.
Opening Speed:
0.6-1.5 M/S (adjustable)
Closing Speed:
0.6 M/S (adjustable)
Wind Resistance:
Maximum Wind Speed Of 8
Application:
Automotive Manufacturing Workshops
Highlight:

High Speed Turbo Garage Door

,

Turbo Garage Door 0.75KW

,

1.5KW Spiral Rolling Door

Product Description

High Performance Spiral Roll Up Fast Door Turbo Speed Industrial Door With Galvanized Frame For Automotive Manufacturing Workshops

Product Overview

The Spiral High Speed Door is engineered for automotive manufacturing workshops, where production efficiency, high traffic flow, and operational reliability are essential.
Installed in body shops, assembly lines, and internal logistics corridors, this Rigid Spiral High Speed Door provides fast opening speed, stable performance, and excellent durability for continuous industrial operation.

Also referred to as a Turbo High Speed Door or Spiral Lift High Speed Door, it is widely used in automotive plants to support high-frequency forklift and AGV movement while maintaining clear separation between production zones.

Product Specifications

Parameter Description
Maximum Available Size Door width: 1000–7000 mm
Door height: 1500–5000 mm
Lifting Mechanism The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel.
Operating speed Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable)
Door panel materials The aluminum alloy door panel has a width of 120mm and a standard thickness of 24mm, with two reinforcing ribs inside. The door panel is filled with polyurethane foam, the aluminum alloy door sheet thickness is 1.2mm, the door hinge thickness is 45mm, and the spiral track thickness is 10mm. Various colors are available.
Sealing performance Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door.
Wind resistance Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale.
Manual functions In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction.
Switching method Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation.
Reserved port The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility.

Details Parts of Door

High Speed Turbo Garage Door 0.75KW-1.5KW Spiral Rolling Door With Galvanized Frame 0

High Speed Turbo Garage Door 0.75KW-1.5KW Spiral Rolling Door With Galvanized Frame 1

Why Choose a Spiral High Speed Door for Automotive Plants

Automotive manufacturing environments demand high cycle performance, precise control, and minimal downtime.
An Industrial Spiral High Speed Door meets these requirements with a rigid panel structure, non-contact spiral track, and servo motor control system.

Compared with traditional rolling or soft PVC doors, the Heavy Duty Spiral High Speed Door offers superior strength, wind resistance, and long-term stability—making it ideal for automotive production workshops.

Typical Applications of Spiral High Speed Doors

  • Body-in-white production workshops

  • Assembly line main channels

  • Welding and stamping workshop entrances

  • Painting area access corridors

  • Production to warehouse transition zones

  • Forklift and AGV high-traffic passages

These environments benefit from a High Speed Door for Large Openings with fast response and reliable performance.

Key Features of Spiral High Speed Doors

Rigid Aluminum Panel Structure

The Aluminum Spiral High Speed Door uses insulated aluminum panels filled with PU foam, combining strength, thermal insulation, and impact resistance.
This rigid design ensures long service life in demanding automotive factories.

Non-Contact Spiral Track System

The High Speed Door with Spiral Track lifts panels vertically along a spiral guide without friction, making it a true Non-Contact Spiral Track Door.

Servo Motor Drive System

Equipped with a Servo Motor Spiral High Speed Door control system for precise speed, torque, and position control.

High-Speed & High-Cycle Performance

Designed as a High Cycle Industrial High Speed Door, capable of frequent operation throughout multi-shift automotive production.

Installation Options & Space Requirements

The Spiral High Speed Door is flexible for various automotive plant layouts:

  • Front-mounted installation for standard workshop openings

  • Between-wall installation for space-saving design

  • Low headroom configuration for restricted ceiling height

The spiral lifting mechanism requires side and headroom planning, making it ideal for industrial buildings with defined structural space.

Customization & Optional Configurations

As a professional Spiral High Speed Door Manufacturer and Supplier, we offer:

  • Custom opening sizes for automotive workshops

  • Vision panels for safety observation

  • Color options to match production zoning

  • Advanced safety sensors and photocells

  • OEM branding for OEM Spiral High Speed Door projects

Get a Quote for Spiral High Speed Door

Looking for a reliable Spiral High Speed Door Supplier for your automotive manufacturing project?
Contact us to get a customized solution, technical support, and competitive pricing directly from a Turbo High Speed Door Factory.

High Speed Turbo Garage Door 0.75KW-1.5KW Spiral Rolling Door With Galvanized Frame 2

High Speed Turbo Garage Door 0.75KW-1.5KW Spiral Rolling Door With Galvanized Frame 3
