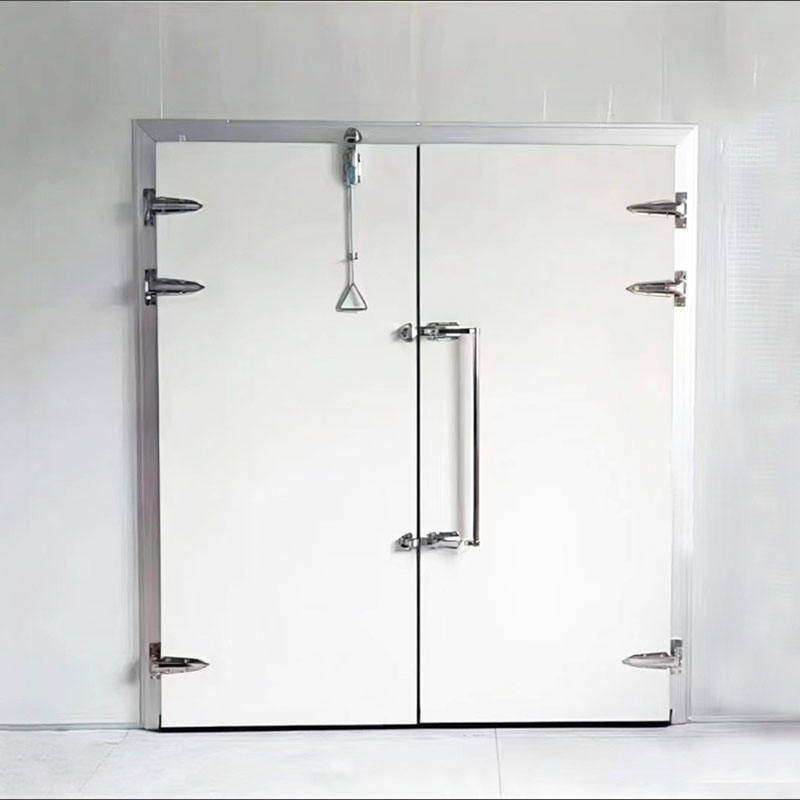

Semi Recessed Cold Storage Door For Food Processing / Production Cold Rooms

Semi-Recessed Cold Room Door for Food Processing & Production Cold Rooms

In food processing and production facilities, cold rooms are directly connected to manufacturing lines, packaging areas, and quality control zones. The semi-recessed cold room door is designed to support these environments by combining strong thermal insulation, hygienic structure, and reliable sealing, ensuring temperature stability throughout food processing operations.

This type of insulated cold storage door is commonly installed between processing areas and freezer rooms, chilled rooms, or temporary cold storage zones within food factories.

Structural Design for Food Processing Environments

Semi-Recessed Installation for Clean Production Areas

The semi-recessed installation allows the door leaf to integrate closely with the cold room wall, reducing protrusions and gaps that may collect dust or moisture. This structure supports cleaner production environments and simplifies sanitation procedures in food processing plants.

Swing Door Configuration for Production Flow

Single-leaf and double-leaf swing door options provide flexibility for different production layouts. The design supports frequent opening during material transfer, ingredient loading, and finished product movement without compromising insulation performance.

Insulation Performance for Processing Cold Rooms

High-Density PU Insulation Core

The door leaf is filled with flame-retardant polyurethane insulation with a density of 40kg/m³ ±2, ensuring stable thermal performance in food production cold rooms.

Multiple Thickness Options for Different Temperature Zones

With door thickness options of 75mm, 100mm, 120mm, and 150mm, the semi-recessed cold room door can be adapted to chilled processing rooms, frozen processing zones, and ultra-low temperature freezer rooms down to -45°C.

Product Specifications

Sealing Performance for Temperature Stability

EPDM and Magnetic Sealing System

EPDM sealing strips combined with PVC magnetic seals ensure tight closure, minimizing cold air leakage between processing areas and cold rooms.

Reduced Moisture Ingress in Production Areas

Effective sealing helps limit condensation and frost, supporting stable production conditions and protecting food quality during processing.

Hardware and Safety Features

Low-Temperature Resistant Hardware

Hardware components made from zinc alloy, stainless steel, and nylon are designed for reliable operation in cold food processing environments.

Internal Safety Release System

An internal push rod and emergency handle allow personnel to exit the cold room safely, meeting common safety requirements in food production facilities.

Typical Applications in Food Processing Plants

• Meat and Poultry Processing Cold Rooms
• Seafood Processing and Temporary Freezer Rooms
• Dairy Production and Packaging Cold Storage
• Ready-to-Eat and Prepared Food Processing Areas
• Central Kitchen and Industrial Food Production Facilities

Advantages for Food Processing & Production Facilities

• Improved Temperature Control Between Production Zones
• Energy-Efficient Operation During Frequent Door Cycles
• Hygienic Design Supporting Sanitation Standards
• Stable Performance in High-Frequency Use Environments
• Customizable Configuration for Different Processing Layouts

Frequently Asked Questions

Is a semi-recessed cold room door suitable for food processing plants?

Yes. Its hygienic structure, insulation performance, and reliable sealing make it well suited for food processing and production cold rooms.

What door thickness is recommended for food processing freezer rooms?

For frozen processing areas, door thicknesses of 100mm or above are recommended to maintain stable temperatures.

Is a heated door frame necessary in food production cold rooms?

For low-temperature and high-humidity processing environments, a heated door frame is strongly recommended to prevent icing and operational issues.
