Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High Speed Spiral Door

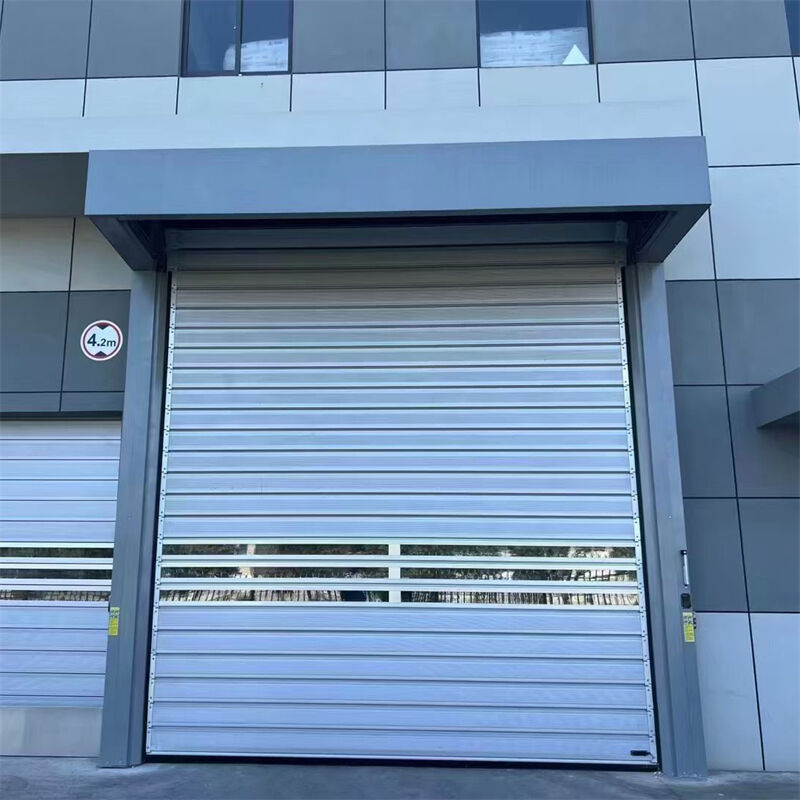

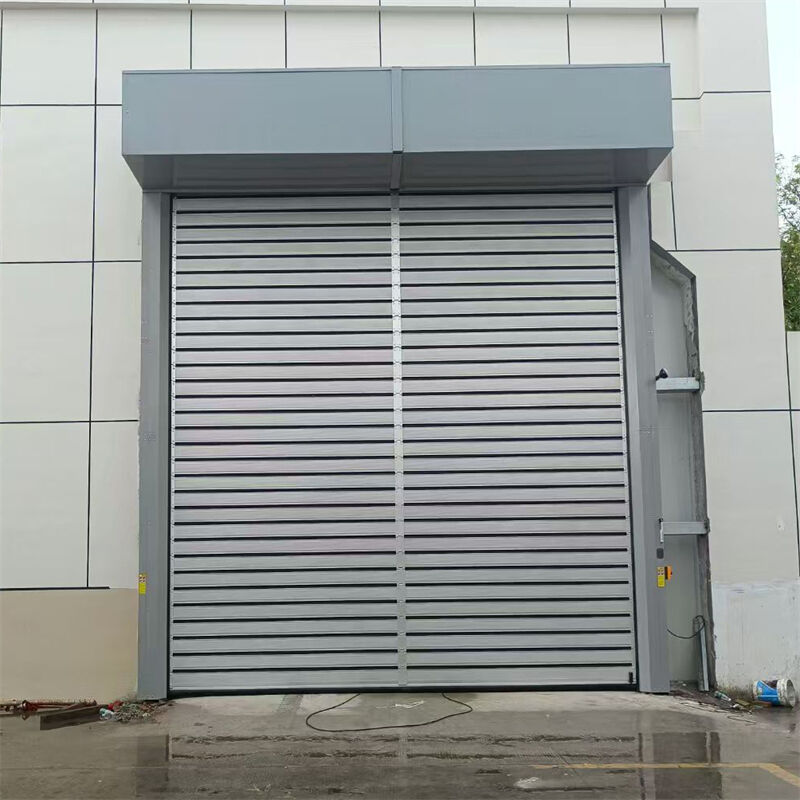

Aluminum Spiral High Speed Door is a premium rigid industrial door designed for applications requiring fast operation, strong durability, excellent sealing performance, and modern appearance.
Also known as a Spiral High Speed Door, Rigid High Speed Door, or Turbo High Speed Door, this door combines an advanced spiral lifting system with insulated aluminum panels to provide reliable performance in high-frequency industrial environments.
Unlike traditional high speed roll up doors, the aluminum spiral high speed door operates without a roller shaft. The rigid aluminum door panels move smoothly through the spiral track system, reducing friction, noise, and maintenance requirements.
With excellent wind resistance, thermal insulation, and customizable configurations, this industrial high speed door is suitable for factories, warehouses, logistics centers, automated facilities, and commercial buildings.
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–7000 mm Door height: 1500–5000 mm |
| Lifting Mechanism | The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel. |
| Operating speed | Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable) |
| Door panel materials | The outer layer is constructed from aluminum alloy; the single-layer aluminum alloy skin has a thickness of 0.7 mm, while the overall door panel thickness measures 40 or 43 mm. The interior of the door panel is filled with polyurethane, achieving a density of up to 50 kg/m³. A variety of painted color options are available for the door panels. |
| Sealing performance | Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door. |
| Wind resistance | Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale. |
| Manual functions | In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction. |
| Switching method | Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation. |
| Reserved port | The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility. |
The aluminum spiral high speed door uses a rigid insulated aluminum panel structure.
The panel consists of:
The polyurethane filling material with a density of up to 50 kg/m³ provides excellent thermal insulation and structural stability.
Compared with PVC curtain doors, the rigid aluminum panel offers:
The biggest advantage of the spiral high speed door is the shaft-free lifting structure.
The door curtain does not roll around a drum. Instead, rigid panels move vertically through a specially designed spiral track.
Benefits include:
The most common solution for industrial entrances.
Suitable for:
Designed for projects with special space requirements.
Suitable for:
Ideal for:
With opening speeds up to 1.2 m/s, the spiral high speed door improves traffic efficiency in busy industrial environments.
It helps reduce:
Unlike soft curtain high speed doors, aluminum spiral doors provide excellent structural strength.
With up to Class 9 wind resistance, they are suitable for:
The insulated aluminum panel structure helps maintain indoor conditions.
Advantages:
Optional polycarbonate vision windows provide:
The door can also integrate:
The spiral high speed door requires less maintenance compared with traditional rolling doors because the lifting system reduces direct friction.
Recommended maintenance:
Proper maintenance ensures stable operation and extends the service life of the industrial door.
|
|
|
Manufacturing facilities require doors that can handle frequent forklift traffic and continuous operation.
Applications:
Benefits:
Modern logistics buildings need fast and reliable access solutions.
Applications:
Benefits:
Designed for smart logistics systems.
Applications:
Benefits:
Suitable for buildings requiring external installation.
Applications:
Benefits:
Applications:
Benefits:
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
An Aluminum Spiral High Speed Door is a rigid industrial door made with insulated aluminum panels and a spiral lifting system. It provides fast operation, durability, and excellent protection for industrial environments.
Yes. Due to its rigid aluminum structure and Class 9 wind resistance, it can be installed for outdoor industrial entrances.
The spiral high speed door uses rigid aluminum panels, offering higher wind resistance and better durability. PVC high speed doors are mainly used for lighter internal applications.
Yes. We provide customized dimensions, RAL colors, vision windows, control systems, and OEM solutions.
Project Type: Smart Logistics Center
The customer needed a high-speed industrial door compatible with automated material handling equipment.
We supplied customized aluminum spiral high speed doors with fast opening speed, stable operation, and reliable automation integration.
Looking for a reliable Aluminum Spiral High Speed Door Manufacturer or Spiral High Speed Door Supplier in China?
Changzhou YOHO Industrial Door Co., Ltd. provides:
Contact us today for product catalogs, project consultation, and quotation.
