Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High Speed Spiral Door

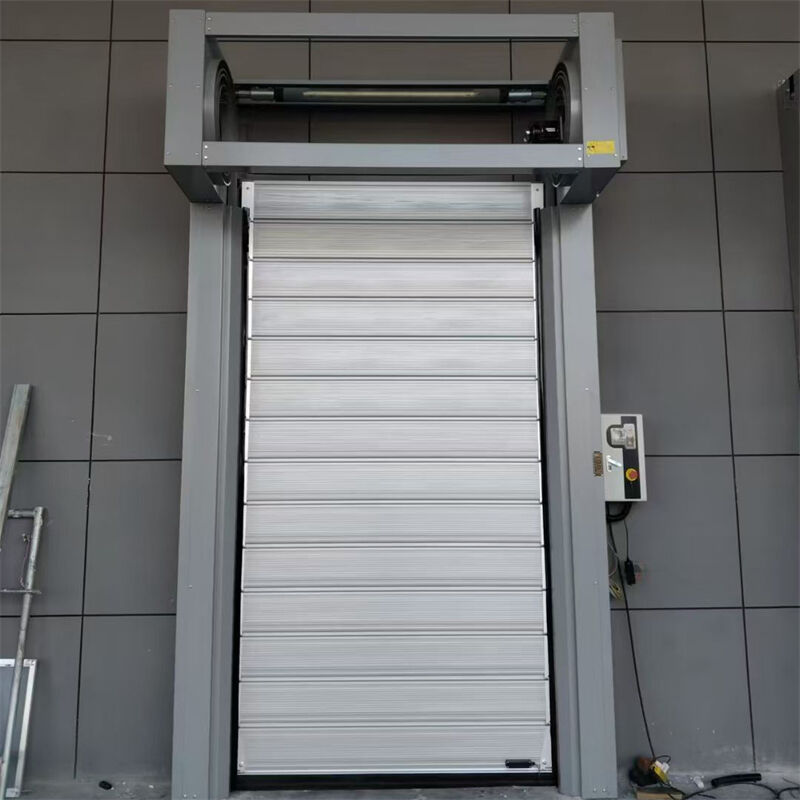

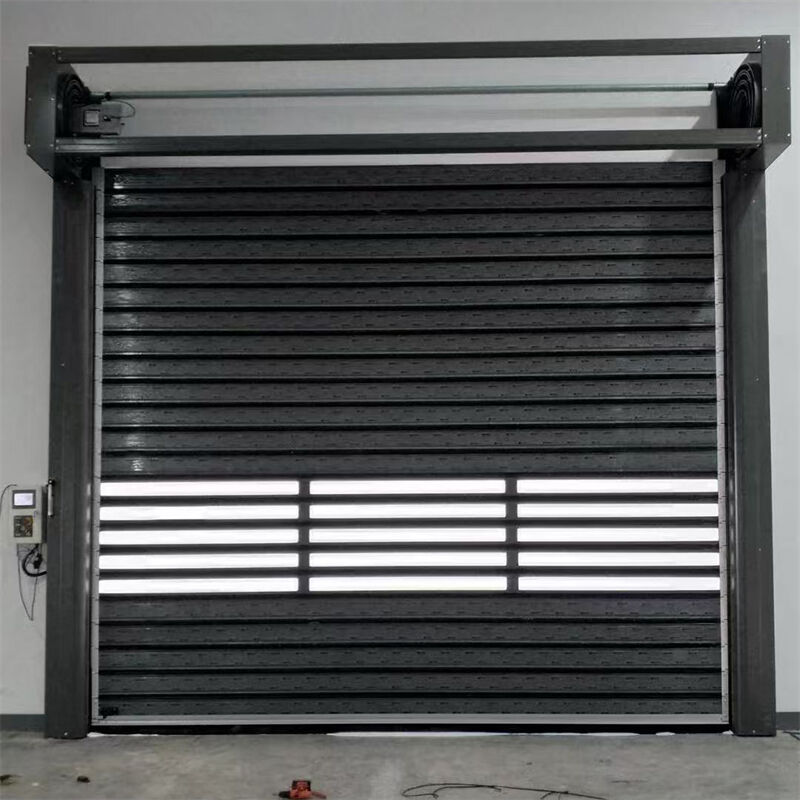

The Turbo Spiral High Speed Door is an advanced industrial door solution designed for high-speed traffic areas where fast operation, reliability, and energy efficiency are essential.
Commonly known in European industrial markets as a Turbo High Speed Door or Turbo Spiral Door, this rigid high-performance door combines a strong aluminum panel structure with an innovative spiral lifting system.
Designed for modern factories, logistics facilities, automated warehouses, and commercial buildings, the turbo spiral door provides rapid opening speeds, excellent sealing performance, and stable operation under intensive daily use.
Unlike traditional rolling industrial doors, the Turbo High Speed Door operates without a winding shaft, allowing the rigid door panels to move smoothly through the spiral guide system with reduced friction and lower maintenance requirements.
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–7000 mm Door height: 1500–5000 mm |
| Lifting Mechanism | The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel. |
| Operating speed | Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable) |
| Door panel materials | The outer layer is constructed from aluminum alloy; the single-layer aluminum alloy skin has a thickness of 0.7 mm, while the overall door panel thickness measures 40 or 43 mm. The interior of the door panel is filled with polyurethane, achieving a density of up to 50 kg/m³. A variety of painted color options are available for the door panels. |
| Sealing performance | Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door. |
| Wind resistance | Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale. |
| Manual functions | In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction. |
| Switching method | Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation. |
| Reserved port | The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility. |
A Turbo High Speed Door is a high-performance industrial door designed to maximize traffic efficiency in busy industrial environments.
The word “Turbo” represents:
The turbo spiral door is especially suitable for locations where doors are opened hundreds or thousands of times per day.
Typical users include:
The Turbo Spiral High Speed Door uses a specially designed spiral track system.
The rigid aluminum panels move vertically through the spiral guide without rolling onto a shaft.
This structure makes it an ideal solution for high-cycle industrial applications.
The turbo spiral door uses insulated aluminum alloy panels.
Outer Layer
Core Layer
Overall Panel
This structure provides:
|
|
|
The high opening speed of the Turbo High Speed Door helps optimize industrial traffic.
It reduces:
Ideal for:
European industrial facilities often require doors that can operate reliably throughout the day.
The Turbo Spiral Door provides:
The insulated aluminum panel structure improves building efficiency.
Advantages:
The Turbo Spiral High Speed Door combines performance with modern appearance.
Features:
It is suitable for companies that require both function and appearance.
The shaft-free spiral lifting structure reduces wear compared with traditional roll-up systems.
Professional maintenance ensures stable long-term performance.
Automotive production requires fast and reliable access systems.
Applications:
Benefits:
Modern warehouses require fast door response.
Applications:
Advantages:
Applications:
Benefits:
Suitable for:
Benefits:
Applications:
Advantages:
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Changzhou YOHO Industrial Door Co., Ltd. specializes in manufacturing:
Products are manufactured according to international requirements.
Available:
Support:
|
|
|
A Turbo Spiral Door is a high-speed rigid industrial door using a spiral lifting system. It provides fast operation, durability, and reliable performance for industrial applications.
“Turbo” refers to its high-speed operation and efficiency. This name is commonly used in European industrial door markets.
Yes. With aluminum rigid panels and Class 9 wind resistance, it can be installed for outdoor industrial entrances.
The opening speed can reach 0.6–1.2 m/s and can be adjusted according to application requirements.
Yes. We provide customized sizes, colors, vision panels, control systems, and OEM solutions.
Application: Distribution Warehouse
The customer needed a high-speed door solution for frequent forklift traffic and fast warehouse operation.
A customized Turbo Spiral High Speed Door was supplied with insulated aluminum panels and automatic control systems to improve logistics efficiency.
Looking for a professional Turbo High Speed Door Manufacturer or Turbo Spiral Door Supplier in China?
Changzhou YOHO Industrial Door Co., Ltd. provides:
Contact us for catalogs, drawings, and project quotations.
