Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High Speed Spiral Door

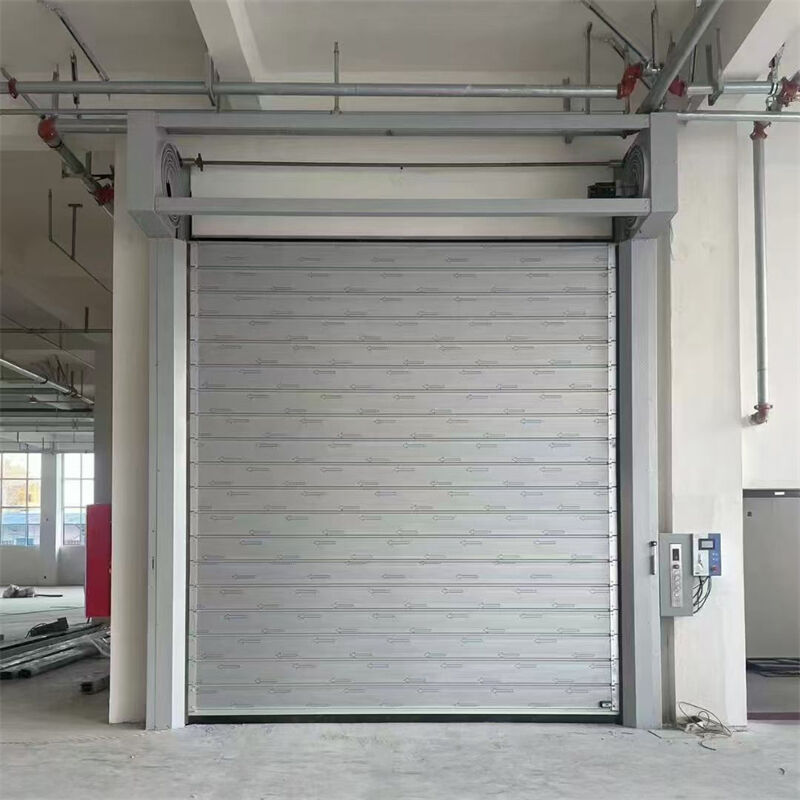

The Rigid Spiral High Speed Door is a high-performance industrial door designed for applications requiring superior strength, durability, and fast operation.
Unlike traditional PVC high speed doors, the rigid high speed door uses a strong aluminum alloy panel structure combined with an advanced spiral lifting system. This design provides excellent impact resistance, wind resistance, insulation performance, and long service life.
Also known as an Aluminum Rigid High Speed Door or Rigid Spiral Door, this industrial door is ideal for factories, warehouses, logistics centers, automotive plants, and outdoor industrial entrances where frequent operation and reliable performance are required.
The rigid panel structure makes it especially suitable for environments where soft curtain doors cannot provide enough protection.
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–7000 mm Door height: 1500–5000 mm |
| Lifting Mechanism | The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel. |
| Operating speed | Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable) |
| Door panel materials | The outer layer is constructed from aluminum alloy; the single-layer aluminum alloy skin has a thickness of 0.7 mm, while the overall door panel thickness measures 40 or 43 mm. The interior of the door panel is filled with polyurethane, achieving a density of up to 50 kg/m³. A variety of painted color options are available for the door panels. |
| Sealing performance | Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door. |
| Wind resistance | Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale. |
| Manual functions | In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction. |
| Switching method | Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation. |
| Reserved port | The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility. |
A Rigid High Speed Door is an industrial door system designed with solid insulated panels instead of flexible PVC curtains.
The rigid construction provides:
The Rigid Spiral Door combines rigid aluminum panels with a spiral lifting mechanism, allowing the door curtain to move vertically without rolling onto a shaft.
This unique structure reduces friction and mechanical wear, making it suitable for high-cycle industrial applications.
The biggest advantage of the rigid high speed door is the aluminum alloy panel design.
The door panel includes:
The 40 mm / 43 mm thick rigid panel provides:
Traditional PVC high speed doors are suitable for lightweight internal applications.
However, rigid high speed doors provide stronger performance for demanding environments.
With wind resistance up to Class 9, the rigid spiral high speed door can withstand challenging industrial environments.
Recommended applications:
The insulated aluminum panel structure helps reduce heat transfer.
Benefits:
The rigid high speed door is suitable for facilities requiring better sealing and insulation performance.
Opening speeds up to 1.2 m/s improve workflow efficiency.
Suitable for:
Fast operation helps reduce waiting time and improve productivity.
|
|
|
The rigid spiral door uses a shaft-free lifting system.
Compared with traditional rolling doors:
The rigid spiral high speed door is designed for long-term industrial operation.
The non-contact spiral system reduces wear on:
Proper maintenance helps ensure reliable operation throughout the product lifecycle.
Manufacturing facilities require strong and reliable doors for continuous operation.
Applications:
Advantages:

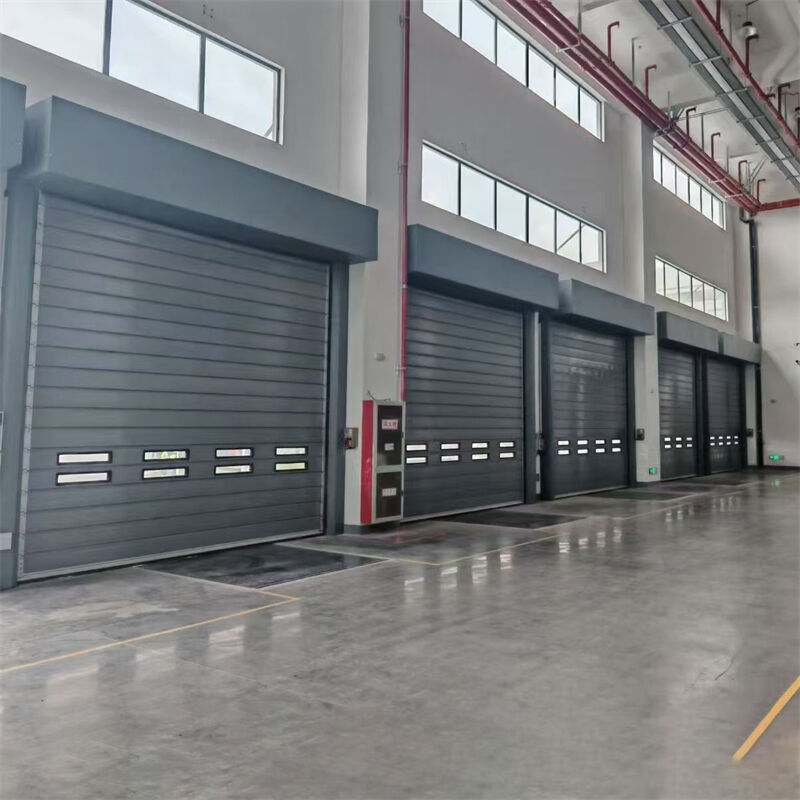

Warehouses need durable doors for frequent forklift movement.
Applications:
Benefits:
The aluminum rigid structure makes it ideal for exterior applications.
Applications:
Benefits:
Automotive plants require doors that can support high-speed logistics.
Applications:
Benefits:
Applications:
Benefits:
Changzhou YOHO Industrial Door Co., Ltd. specializes in manufacturing rigid high speed doors and industrial door solutions for global customers.
Our advantages include:
We provide:
|
|
|
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
A rigid high speed door is an industrial door made with solid aluminum panels instead of flexible PVC curtains. It provides higher strength, better insulation, and improved wind resistance.
Rigid high speed doors use aluminum panels, making them stronger and more suitable for outdoor and heavy-duty applications. PVC doors are mainly used for internal traffic separation.
Yes. The aluminum panel structure and Class 9 wind resistance allow installation in outdoor industrial environments.
Yes. The door panels are filled with polyurethane foam, providing excellent thermal insulation performance.
Application: Logistics Warehouse
The warehouse needed an exterior door with strong wind resistance and insulation.
We supplied an aluminum rigid spiral door with Class 9 wind resistance and customized powder-coated structure.
Looking for a reliable Rigid High Speed Door Manufacturer or Rigid Spiral Door Supplier in China?
Changzhou YOHO Industrial Door Co., Ltd. provides:
Contact us today for quotation and technical consultation.
