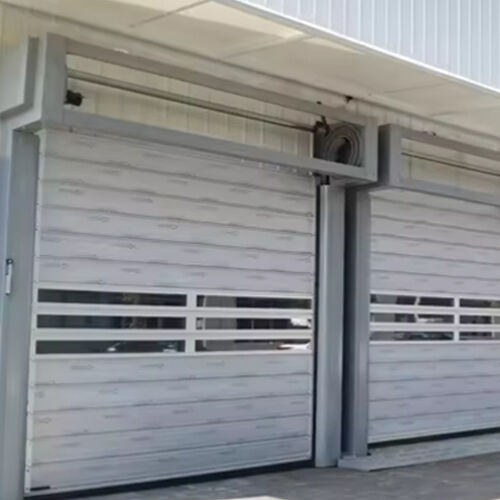

Customized Aluminum Spiral High Speed Door For Automated Warehouse

MOQ: IUNIT
Price: Negotiable
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Spiral Door
Product Name:
High Speed Spiral Door
Material:
Aluminum Alloy + Polyurethane（Density: 50 Kg/m³）
Frame And Rails:
Powder-coated Galvanized Steel (custom Colors Available)
Max Size:
Door Width: 1000–7000 Mm，Door Height: 1500–5000 Mm
Opening Times Of Every Day:
Less Than 500-800times
Size:
Customized Size Acceptable
Power:
0.75-1.5KW
Control System:
Special Servo System
Safety Device:
Buffer Device At The Bottom Of Door To In Sure Of The Safety
Structure Of Door:
Five Type ,Elliptical Helical Structure ，complex Called Elliptical Helical Structure,L Shape Structure. Vertical Structure And Horizontal Structure.
Opening Speed:
0.6-1.2 M/S (adjustable)
Closing Speed:
0.6-1.2 M/S (adjustable)
Wind Resistance:
Maximum Wind Speed Of 9
Retraction Styles:
Standard, Oval, Flat-Handle
Application:
Automated Warehouse
Highlight:

customized aluminum spiral high speed door

,

automated warehouse spiral door

,

high speed aluminum warehouse door

Product Description

Various Colors Customized Aluminum Spiral High Speed Door For Automated Warehouse

Product Overview

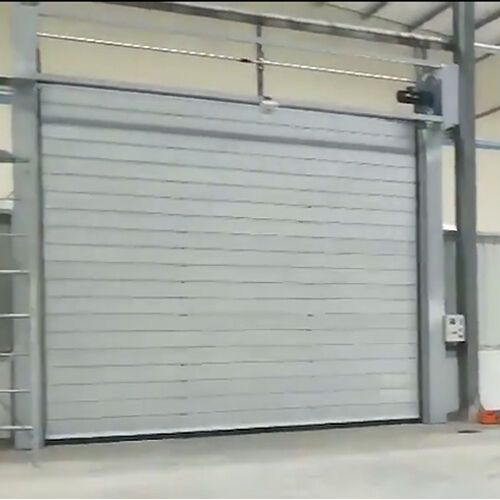

High Speed Spiral Door for Automated Warehouse Systems

The Aluminum Spiral High Speed Door is specially designed for automated warehouses, high-bay storage facilities, and smart logistics centers where fast, reliable, and precise door operation is essential. Also known as a Spiral High Speed Door, Rigid High Speed Door, Turbo High Speed Door, or Spiral Lift High Speed Door, this advanced industrial door combines high-speed performance, superior wind resistance, and excellent thermal insulation.

Unlike conventional roll-up doors, this high speed spiral door uses a non-contact spiral track system without a roller shaft, allowing the insulated aluminum door panels to rise smoothly while avoiding friction and wear. The result is quieter operation, reduced maintenance, and a significantly longer service life.

Product Specifications

Parameter Description
Maximum Available Size Door width: 1000–7000 mm
Door height: 1500–5000 mm
Lifting Mechanism The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel.
Operating speed Opening speed: 0.6-1.2 M/S (adjustable) Closing speed: 0.6-1.2 M/S (adjustable)
Door panel materials The outer layer is constructed from aluminum alloy; the single-layer aluminum alloy skin has a thickness of 0.7 mm, while the overall door panel thickness measures 40 or 43 mm. The interior of the door panel is filled with polyurethane, achieving a density of up to 50 kg/m³.
A variety of painted color options are available for the door panels.
Sealing performance Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door.
Wind resistance Maximum wind speed of 9 on the Beaufort scale, which may intensify to 10 on the Beaufort scale.
Manual functions In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction.
Switching method Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation.
Reserved port The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility.

Advantages of Spiral High Speed Doors in Automated Warehouses

  • Supports continuous automated material flow

  • Reduces system delays and idle time

  • Enables accurate interlocking with automation signals

  • Operates as a High Cycle Industrial High Speed Door

  • Requires minimal maintenance

  • Enhances overall system reliability

Installation Options & Space Requirements

The Spiral Lift High Speed Door adapts to:

  • Narrow automated corridors

  • High-bay storage openings

  • Limited side-space installations

Customized Aluminum Spiral High Speed Door For Automated Warehouse 0

All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 900mm
b1/ b2 is the left/right lateral distance of at least 350 mm (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room.
When measuring h, b1, b2 and L, take the smallest value as the final size.

Get a Quote for Spiral High Speed Door

Looking for a reliable Spiral High Speed Door Supplier for automated warehouses?
Contact our Turbo High Speed Door Factory for technical consultation, drawings, and tailored automation-ready solutions.

Contact Us:

Email:yohao260105@gmail.com

Whatsapp:+8618021983369

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Customized Aluminum Spiral High Speed Door For Automated Warehouse 1

Customized Aluminum Spiral High Speed Door For Automated Warehouse 2

Why Choose Our Factory

As a professional industrial door manufacturer in China, Changzhou YOHO Industrial Door Co,Ltd.  specialize in high-quality Spiral High Speed Doors for industrial and commercial applications. With advanced production equipment, strict quality control, and international certifications, we provide reliable products and complete OEM/ODM solutions for distributors, contractors, and project buyers worldwide.

Advanced Manufacturing

Our factory is equipped with CNC machining centers, automated assembly lines, and professional testing equipment. Every door is manufactured with precision to ensure high-speed performance, excellent wind resistance, and long-term durability.

Customized Aluminum Spiral High Speed Door For Automated Warehouse 3 Customized Aluminum Spiral High Speed Door For Automated Warehouse 4

Certified Quality

All products are produced under a strict quality management system and comply with international standards. We can provide CE certification, ISO 9001, and third-party test reports to support your projects and simplify import procedures.

Customized Aluminum Spiral High Speed Door For Automated Warehouse 5

OEM & Custom Solutions

We offer custom sizes, colors, vision panels, control systems, and private label services. Our engineering team provides drawings, technical support, and installation guidance for each project.

Get a Quote for High Speed Spiral Doors

Looking for a reliable Spiral High Speed Door Manufacturer, Turbo High Speed Door Supplier, or Rigid Aluminum High Speed Door Factory in China?

Contact us for technical consultation, CAD drawings, certification documents, and factory-direct pricing.

OEM Service

  • Customized sizes
  • Private label production
  • Color customization
  • Technical support
  • Fast global delivery
