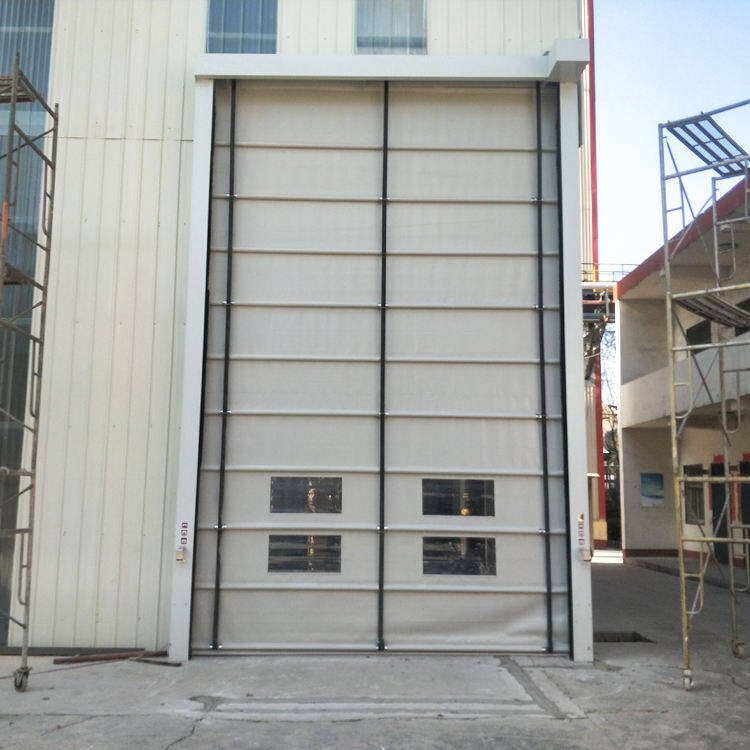

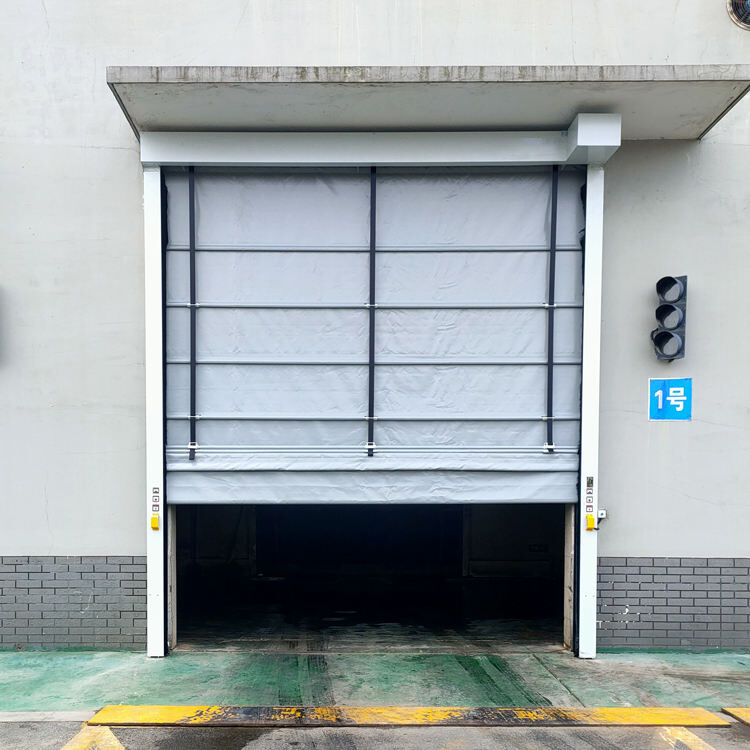

High Speed Quick Opening Stacking Door Quick Opening Servo Control System Motor For High-Frequency Industrial Passages
  • name
  • name

High Speed Quick Opening Stacking Door Quick Opening Servo Control System Motor For High-Frequency Industrial Passages

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Stacking Door
Color:
Yellow/Blue/Red/Grey/White/Transparent
PVC Door Curtain Thickness:
0.8–1.2 Mm
Size:
3x3 M Or Customized (max Size:6x8m)
Voitage:
380V Or 220V
Name:
High-Speed PVC Industrial Door
Panel Material:
Anti-skid Checkered Plate
Material:
PVC Curtain / Galvanized Steel / Stainless Steel
Power:
0.75-1.5KW
Door Width:
1000mm–12000mm
Door Height:
1500mm–12000mm
Opening Speed:
0.6–1.2 M/s (adjustable)
Closing Speed:
0.6 M/s (adjustable)
Application:
High-Frequency Industrial Passages
Highlight:

pvc industrial high speed door

,

red industrial high speed door

Product Description

High Speed Quick Opening Stacking Door Quick Opening Servo Control System Motor For High-Frequency Industrial Passages

High-traffic industrial passages require reliable and fast door systems. The Stacking High Speed Door ensures smooth internal logistics flow.

The High Speed Stacking Door is a High Frequency Industrial Door designed for internal factory passages with constant personnel and vehicle movement. This High Speed Industrial Door ensures fast response, operational stability, and long service life in high-traffic environments.

Product Specifications

Parameter Description
Special Door Type High Speed Stacking Door
Opening Method Electric Side Opening
Maximum Dimensions Door width: 1000mm–12000mm, Door height: 1500mm–12000mm
Operating Speed Opening speed: 0.6–1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material 0.8–1.2 mm thick curtain; available colors: Blue, Orange, Gray
Frame Material Standard track frame: Galvanized steel with powder coating
Optional upgrade: Stainless steel
Project Solution Capability 3D model design
Surface Finishing Finished
Sealing Performance High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure
Wind Resistance Up to Class 6 wind, can be reinforced to Class 8
Manual Operation In case of power failure or malfunction, the door can be manually opened using a standard wrench
Power Supply Requirements Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards
Insulation Protection IP54, waterproof and dustproof for harsh environments
Opening/Closing Control Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control
Pre-reserved Ports Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible
Control System (Servo System) Uses dedicated servo system with DSP chip core

System sets door opening height based on incremental encoder signals from the motor and limit switch signals

LED display shows fault codes

Direction protection: controller reports error if motor wiring is reversed; door remains stationary

Torque loop, position loop, and speed loop fully closed

Motor can stop at exact position without using an electromagnetic brake

Key Features

  • Optimized for continuous open-close cycles
  • Fast opening industrial door improves traffic flow
  • Durable stacking panels resist wear
  • Compatible with automation control systems

Advantages for Industrial Passages

  • Prevents congestion in busy corridors
  • Improves safety for forklifts and workers
  • Reduces mechanical wear under high usage
  • Reliable performance in multi-shift factories

Typical Applications

  • Internal factory corridors
  • AGV transport passages
  • Workshop-to-workshop channels
  • High-traffic industrial zones

Feature Highlight: High-Frequency Operation

Designed for constant opening and closing without performance degradation.

High Speed Quick Opening Stacking Door Quick Opening Servo Control System Motor For High-Frequency Industrial Passages 0

Options of Door Opening ways

our door's opening way has the push buttom,motion sensor,induction loop,remote control,pull swith,infrared light curtain and so on.

High Speed Quick Opening Stacking Door Quick Opening Servo Control System Motor For High-Frequency Industrial Passages 1

FAQ

Q1: Can it handle continuous operation?
Yes, it is designed for high-frequency use.

Q2: Is it safe for forklift traffic?
Yes, fast response improves operational safety.

Q3: Can it integrate with sensors?
Yes, radar, loop, and PLC systems are supported.

Q4: Is it suitable for large factories?
Yes, it is widely used in large industrial plants.

High Speed Quick Opening Stacking Door Quick Opening Servo Control System Motor For High-Frequency Industrial Passages 2 High Speed Quick Opening Stacking Door Quick Opening Servo Control System Motor For High-Frequency Industrial Passages 3
