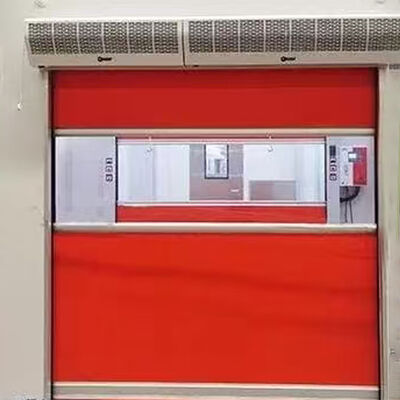

Hygienic Industrial High Speed Door Manufacturers For Food Processing

Products

Hygienic Industrial High Speed Door Manufacturers For Food Processing

MOQ:	IUNIT
Price:	negotiation
Standard Packaging:	plywood package
Delivery Period:	10~15DAYS
Payment Method:	T/T
Supply Capacity:	300 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

ISO 9001/CE

Model Number

High-Speed PVC Industrial Door

Color:

Yellow/Blue/Red/Grey/White/Transparent

Size:

3x3 M Or Customized (max Size:6x8m)

Voitage:

380V Or 220V

Name:

High-Speed PVC Industrial Door

Panel Material:

Anti-skid Checkered Plate

Material:

PVC Curtain / Galvanized Steel / Stainless Steel

Power:

0.75-1.5KW

Door Width:

1000 Mm - 6000 Mm

Door Height:

1500 Mm - 6000 Mm

Application:

Food Processing

Highlight:

Hygienic Industrial High Speed Door

Industrial High Speed Door Manufacturers

Food Processing High Speed Industrial Door

Product Description

Hygienic Industrial High Speed Door With High-Speed Operation And Excellent Sealing Performance For Food Processing

The Industrial High Speed Door for food processing facilities is engineered to meet strict hygiene, efficiency, and environmental control requirements. In food production environments, maintaining cleanliness, temperature stability, and fast internal logistics is critical to product quality and safety. This door features a smooth, non-porous door curtain with high-sealing structure that effectively prevents dust, insects, and air contamination. With fast opening and closing speeds, it minimizes air exchange between production zones, helping manufacturers comply with hygiene standards while improving workflow efficiency.

Product Specifications

Parameter	Description
Material	PVC curtain / Galvanized steel / Stainless steel
Max Door Size	Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed	Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable)
Curtain Material	0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power	0.75-1.5KW (depending on size & speed)
Temperature Range	-10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance	High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing
Wind Resistance	Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function	In case of power failure or malfunction, the door can be manually opened with a wrench
Power Requirements	220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards
Insulation Protection	IP54 rating, providing water and dust protection, suitable for harsh environments
Switching Methods	Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control

Key Features for Food Industry Applications

Hygienic Door Structure

Smooth PVC or stainless steel surface, easy to clean
No exposed screws to reduce dirt accumulation
Resistant to moisture, grease, and food residues

High-Speed Operation

Opening speed up to 2.0 m/s
Reduces waiting time for workers and forklifts
Maintains stable internal environment

Excellent Sealing Performance

Bottom airbag or soft bottom edge
Side guide brush sealing
Effectively blocks insects and dust

Advantages for Food Manufacturers

Improves hygiene management and cleanliness control
Reduces temperature loss between processing areas
Enhances internal logistics efficiency
Low maintenance cost for long-term operation

Typical Applications

Food processing workshops
Beverage production lines
Meat, dairy, and frozen food factories
Packaging and clean preparation areas

Control System Features

LED display for fault code indication
Reverse polarity protection with error indication for incorrect motor wiring
Three-loop closed-loop control: Torque loop, Position loop, Speed loop
Electro-magnetic brake free system with precision stopping at desired position
