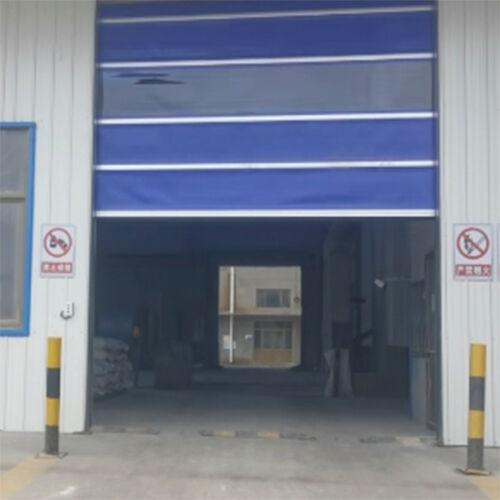

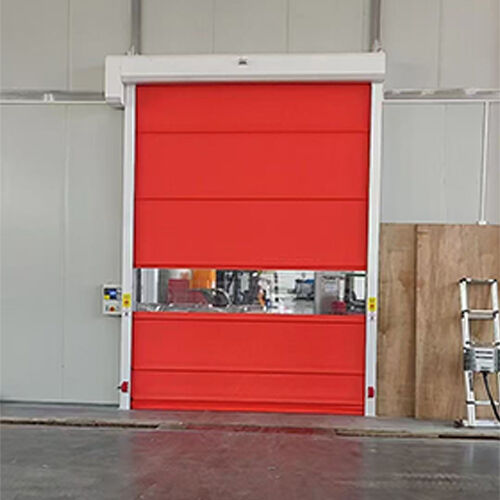

0.75KW-1.5KW Industrial High Speed Door For Supermarket Back Room / Storage Area
  • name
  • name

0.75KW-1.5KW Industrial High Speed Door For Supermarket Back Room / Storage Area

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High-Speed PVC Industrial Door
Name:
Industrial High Speed Door
Color:
Yellow/Blue/Red/Grey/White/Transparent
Voitage:
380V Or 220V
Panel Material:
Anti-skid Checkered Plate
Material:
PVC Curtain / Galvanized Steel / Stainless Steel
Power:
0.75-1.5KW
Size:
3x3 M Or Customized (max Size:6x8m)
Door Width:
1000 Mm - 6000 Mm
Door Height:
1500 Mm - 6000 Mm
Application:
Supermarket Back Room / Storage Area
Highlight:

0.75KW Industrial High Speed Door

,

1.5KW Industrial High Speed Door

,

Storage Area High Speed Industrial Door

Product Description

Industrial High Speed Door With Efficient Workflow For Supermarket Back Room / Storage Area

The Industrial High Speed Door for Supermarket Back Rooms and Storage Areas is designed to improve workflow efficiency, maintain cleanliness, and ensure energy efficiency in storage and loading areas.

Supermarket back rooms and storage areas require frequent access for goods handling, forklifts, and staff. This door features a durable PVC curtain, galvanized steel frame, and fast opening/closing, minimizing dust, temperature loss, and contamination while ensuring smooth internal logistics.

Product Specifications

Material PVC curtain / Galvanized steel / Stainless steel
Max Door Size Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable)
Curtain Material 0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power 0.75-1.5KW (depending on size & speed)
Temperature Range -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for optimal sealing
Wind Resistance Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function In case of power failure or malfunction, the door can be manually opened with a wrench
Power Requirements 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards
Insulation Protection IP54 rating, providing water and dust protection, suitable for harsh environments
Switching Methods Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control

Product Features

  • Curtain Material: PVC curtain 0.8–2.0 mm, lightweight and durable
  • Frame Material: Galvanized steel with powder coating
  • High-Speed Operation: Opening speed up to 1.2 m/s, closing speed 0.6 m/s
  • Door Size: Width 1000–6000 mm, Height 1500–6000 mm
  • Sealing System: Side brush seals + bottom soft edge
  • Control System: DSP-based servo system with LED fault display

PVC Curtain & Galvanized Steel Frame

The PVC curtain and galvanized steel frame combination ensures durable, safe, and cost-effective operation in supermarket storage areas.

  • PVC Curtain: Flexible, lightweight, and durable, reducing maintenance costs
  • Galvanized Steel Frame: Resistant to impact, corrosion, and heavy use
  • High-Speed Operation: Fast access reduces workflow bottlenecks
  • Safety Features: Infrared sensors and soft bottom edge protect personnel and goods

This design ensures smooth material flow, safe operation, and long-lasting performance.

Product Advantages

Efficient Workflow

  • Fast opening and closing reduce waiting time for staff and forklifts
  • Supports frequent material movement and high turnover of goods

Energy & Environmental Control

  • Tight sealing reduces air exchange between storage areas and external environment
  • Helps maintain stable temperature for food storage and energy efficiency

Durable & Cost-Effective

  • PVC curtain resists wear and tear from frequent use
  • Galvanized steel frame ensures long service life at a lower cost

FAQ

Q1: Why use high speed doors in supermarket back rooms?

They improve workflow efficiency, reduce waiting times, and maintain a cleaner and more energy-efficient storage environment.

Q2: Is the door suitable for frequent forklift traffic?

Yes. The PVC curtain and galvanized steel frame are designed for high-frequency use in logistics-heavy areas.

Q3: Can the door help control temperature and dust?

Yes. The tight sealing system reduces airflow, dust, and contamination between zones.

0.75KW-1.5KW Industrial High Speed Door For Supermarket Back Room / Storage Area 0

0.75KW-1.5KW Industrial High Speed Door For Supermarket Back Room / Storage Area 1

Tags:

Industrial Rapid Door,

Insulated High Speed Door,

Warehouse High Speed Door
