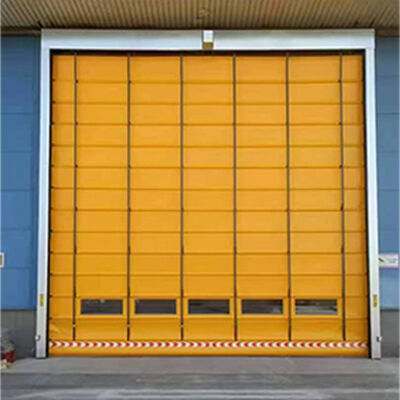

High Overload Capacity High Speed Stacking Door For Warehousing / Logistics Centers
  • name
  • name

High Overload Capacity High Speed Stacking Door For Warehousing / Logistics Centers

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Stacking Door
Color:
Yellow/Blue/Red/Grey/White/Transparent
PVC Door Curtain Thickness:
0.8–1.2 Mm
Size:
3x3 M Or Customized (max Size:6x8m)
Voitage:
380V Or 220V
Name:
High-Speed PVC Industrial Door
Panel Material:
Anti-skid Checkered Plate
Material:
PVC Curtain / Galvanized Steel / Stainless Steel
Power:
0.75-1.5KW
Door Width:
1000mm–12000mm
Door Height:
1500mm–12000mm
Opening Speed:
0.6–1.2 M/s (adjustable)
Closing Speed:
0.6 M/s (adjustable)
Application:
Warehousing And Logistics Centers
Highlight:

High Overload High Speed Warehouse Doors

,

Logistics Centers High Speed Stacking Door

,

Warehousing High Speed Stacking Door

Product Description

High Overload Capacity High Speed Stacking Door For Warehousing And Logistics Centers

The High Speed Stacking Door for warehousing and logistics centers is designed to improve internal traffic efficiency, safety, and energy control in busy warehouse environments.

In modern logistics centers, fast and reliable door operation is critical to maintain smooth material flow between storage areas, sorting zones, and loading docks. The door features a servo-controlled motor system, durable insulated curtain, and advanced safety features, ensuring high-frequency operation and stable performance in harsh industrial conditions.

Product Parameters

Parameter Description
Maximum Dimensions Door width: 1000mm–12000mm, Door height: 1500mm–12000mm
Operating Speed Opening speed: 0.6–1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material 0.8–1.2 mm thick curtain; available colors: Blue, Orange, Gray
Frame Material Standard track frame: Galvanized steel with powder coating
Optional upgrade: Stainless steel
Sealing Performance High-quality brush sealing on tracks, bottom equipped with EPDM sealing structure
Wind Resistance Up to Class 6 wind, can be reinforced to Class 8
Manual Operation In case of power failure or malfunction, the door can be manually opened using a standard wrench
Power Supply Requirements Three-phase 380V/50Hz, IP54 control box, compliant with national electrical safety standards
Insulation Protection IP54, waterproof and dustproof for harsh environments
Opening/Closing Control Standard one-button operation with emergency stop; optional control methods: Radar sensor, loop detector, pull cord switch, remote control
Pre-reserved Ports Electrical system pre-reserved for: infrared safety switch, loop detector, radar sensor, pull cord switch, remote control, dual-door interlock; highly compatible

Product Advantages

Enhance Material Flow Efficiency

  • Rapid opening and closing minimize waiting times for forklifts, AGVs, and personnel
  • Supports continuous logistics operations in high-traffic areas

Improve Safety

  • Infrared safety sensors and bottom soft edge prevent collisions and accidents
  • Servo-controlled motor ensures precise stopping and safe rebound

Energy Efficiency

  • High-quality track and EPDM bottom sealing reduce air exchange
  • Maintains temperature stability in internal warehouse zones

Durability & Low Maintenance

  • Robust galvanized steel or stainless steel frame
  • Servo motor with gearbox and brake system allows thousands of cycles per day

Door Structure and Dimensions

  • Maximum Dimensions: Width 1000–12000 mm, Height 1500–12000 mm
  • Curtain Material: 0.8–2.0 mm PVC; colors: Blue, Orange, Gray
  • Frame & Track: Standard galvanized steel with powder coating; optional stainless steel
  • Wind Resistance: Class 6 (reinforced to Class 8)

Operating Speed

  • Opening Speed: 0.6–1.2 m/s (adjustable)
  • Closing Speed: 0.6 m/s (adjustable)

Applications

The High Speed Stacking Door is ideal for logistics and warehousing operations:

  • Internal corridors connecting storage, sorting, and packing zones
  • High-traffic loading and unloading areas
  • Warehouse-to-warehouse internal passages
  • Logistics centers requiring high-frequency operation and safety
  • Temperature-controlled or energy-sensitive indoor zones

FAQ

Can this door withstand high-frequency operation?

Yes. The servo motor system allows thousands of cycles per day, suitable for busy logistics centers.

Is it safe for forklift and AGV traffic?

Absolutely. Infrared sensors, soft bottom edge, and precise motor control ensure safe and reliable operation.

Can the door size and color be customized?

Yes. Width, height, and PVC curtain colors (Blue, Orange, Gray) are customizable to match warehouse layout and branding.

High Overload Capacity High Speed Stacking Door For Warehousing / Logistics Centers 0

High Overload Capacity High Speed Stacking Door For Warehousing / Logistics Centers 1
