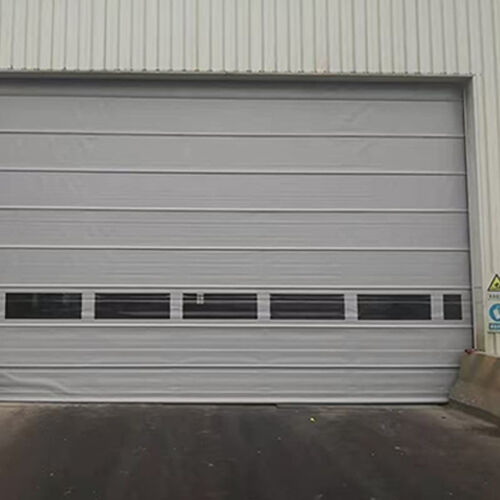

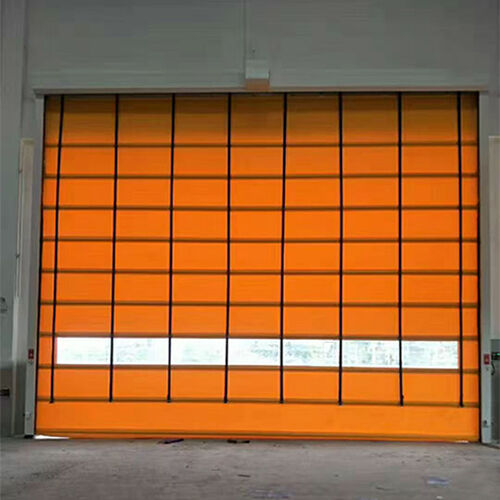

Max Size 6x8m Design High Speed Stacking Door For Large Factory

Max Size 6x8m Design High Speed Stacking Door For Large Factory

The High-Speed Stacking Door for large factories is engineered to meet the demanding requirements of high-volume industrial production environments. In large-scale manufacturing plants, doors are frequently used for the movement of workers, forklifts, raw materials, and finished products across different production zones. This high-speed stacking door offers rapid opening and closing to minimize waiting time, reduce airflow interference, and maintain stable internal conditions. Its robust structure, flexible PVC curtain, and advanced servo control system ensure reliable, long-term performance under continuous, high-frequency operation, making it an ideal access solution for modern large factories.

Product Parameters

Product Features

• Maximum Dimensions: Door width 1000–12000 mm; door height 1500–12000 mm

• Operating Speed: Opening speed 0.6–1.2 m/s (adjustable); closing speed 0.6 m/s (adjustable)

• Door Curtain Material: 0.8–2.0 mm thick PVC curtain; available in Blue, Orange, Gray

• Frame Material: Standard powder-coated galvanized steel; optional stainless steel upgrade

• Sealing Performance: Brush seals on guide tracks; EPDM bottom seal to limit dust and airflow

• Wind Resistance: Standard Class 6; reinforced structure up to Class 8 available

• Manual Operation: Manual opening with standard wrench in case of power failure

• Power Supply: Three-phase 380V/50Hz; IP54-rated control box

Safety Features

• Infrared Safety Protection: Dual photoelectric sensors detect personnel, vehicles, or objects and trigger automatic reopening

• Bottom Safety Edge: Immediate rebound upon contact to prevent damage or injury

• Emergency stop function and intelligent fault protection ensure safe operation

Product Advantages

• Improves traffic flow and productivity in large factory environments

• Reduces energy loss and stabilizes internal airflow between production areas

• Supports heavy forklift and material handling traffic

• High durability for high-cycle industrial applications

• Advanced safety systems protect personnel and equipment

Applications

• Internal passageways in large manufacturing plants

• Production line separation zones

• Material transfer channels for forklifts and carts

• High-frequency access points in industrial workshops

• Energy-saving internal partitions for factory buildings

Installation Instructions

All measurements are taken indoors, with at least three points measured for each value:
H – Doorway height (distance from the floor to the top of the doorway)
B – Doorway opening width (distance from the left edge to the right edge of the doorway)
h – The distance from the top of the doorway to the ceiling, which must be at least 900 mm.
b1/b2 – The distance from the corresponding edge of the doorway to the obstacle on the left/right side, which must be at least 350 mm.
When measuring H and B, the maximum value is taken as the final dimension;
When measuring h, b1, and L, the minimum value is taken as the final dimension.

FAQ

1. Is this door suitable for heavy forklift traffic?

• Yes. The door is designed for large openings and frequent forklift operation.

2. Can the door operate continuously throughout the day?

• Yes. The servo motor system supports high-frequency, continuous operation.

3. Is the door suitable for outdoor installation?

• This model is primarily designed for indoor factory environments.

4. What safety protections are included?

• Infrared photoelectric sensors, bottom safety edge, emergency stop, and intelligent control protection.
