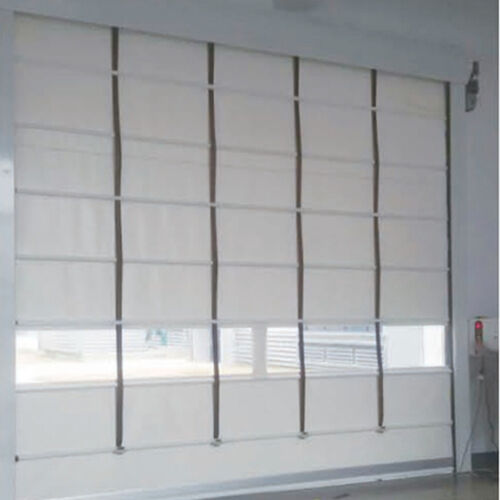

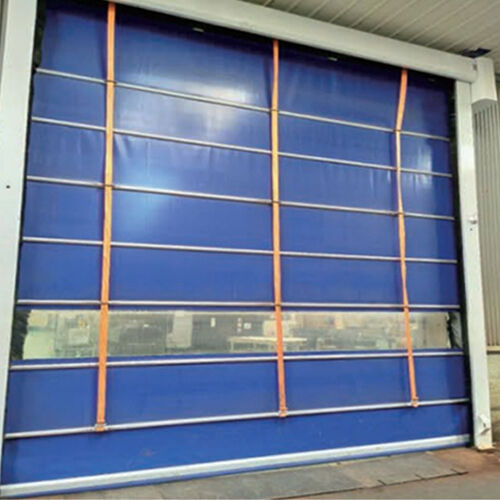

Customized Geomagnetic Induction Stacking High Speed Door High Efficiency In Industrial Production Workshops

Customized Magnetic Induction High-Speed ​​Stacking Doors for Efficient Industrial Production Workshops

High-speed stacking doors are designed for industrial production workshops where fast, safe, and efficient internal access is required.

These doors combine rapid opening and closing, robust construction, and advanced safety features to improve workflow efficiency and protect personnel and goods. They are ideal for high-frequency operations in factories, production lines, and industrial facilities requiring controlled internal movement and area separation.

With a robust servo motor system, precise control, and flexible curtain material, the high-speed stacking door ensures reliable operation even in harsh industrial environments.

Product Specifications

Drive Motor Characteristics

• Servo motor with encoder, braking system, gearbox, and emergency manual operation
• Constant torque output ensures optimal performance and rapid rebound of safety devices
• High overload capacity; capable of thousands of cycles per day in high-frequency environments

Safety Features

• Infrared safety protection: Sensors are equipped on both sides of the frame; if an object is detected, the door will open completely and only close when safe.
• Bottom safety edge: Protects objects in the infrared blind spot; the door will immediately rebound upon contact to prevent accidents.
• Emergency braking and torque protection integrated into the servo system

Product Advantages

• Maximizes workflow efficiency within high-frequency industrial workshops
• Reduces energy loss and maintains internal environmental control
• Ensures the safety of personnel and equipment through multiple protection mechanisms
• Durable and low-maintenance design suitable for harsh industrial environments
• Supports precise and reliable operation and advanced servo control

Applications

• Internal passageways in industrial production workshops
• Forklift and material handling areas
• High-speed logistics and manufacturing corridors
• Areas requiring compact, space-saving, and fast-opening doors
• Factories with high safety and operating frequency requirements

Installation Instructions

All measurements are taken indoors, with at least three points measured for each value:
H – Doorway height (distance from the floor to the top of the doorway)
B – Doorway opening width (distance from the left edge to the right edge of the doorway)
h – The distance from the top of the doorway to the ceiling, which must be at least 900 mm.
b1/b2 – The distance from the corresponding edge of the doorway to the obstacle on the left/right side, which must be at least 350 mm.
When measuring H and B, the maximum value is taken as the final dimension;
When measuring h, b1, and L, the minimum value is taken as the final dimension.

Frequently Asked Questions

What is a high-speed stacking door?

A high-speed stacking door is a fast-opening industrial door designed for high-frequency internal traffic, area separation, and safety in industrial environments.

Can it withstand high-frequency operation?

Yes. Equipped with a robust servo motor, it can perform thousands of cycles per day without affecting performance.

Is it safe for personnel and equipment?

Yes. Infrared sensors, bottom safety edges, and a quick rebound system ensure safe operation even in busy workshops.

Can the door size and color be customized?

Yes. The door can be customized in width (1000–12000 mm), height (1500–12000 mm), and curtain color (blue, orange, gray).
