Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
Insulated High-Speed Door

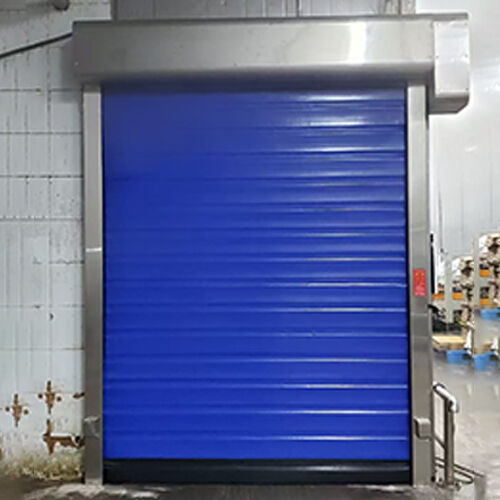

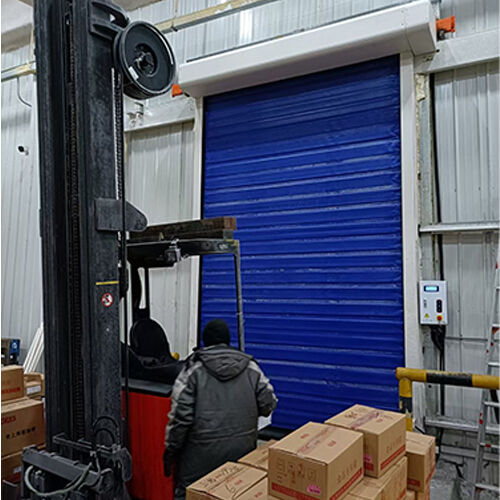

The Insulated High-Speed Door is engineered for ambient-temperature areas in food processing facilities, providing fast access, thermal insulation, and hygiene protection.
In food production, controlling temperature, airflow, and cross-contamination between production zones is critical. This door features a thick insulated PVC curtain (7–12 mm) and a durable galvanized steel or stainless steel frame, ensuring stable temperature separation while allowing high-frequency internal traffic.
Note: This door is suitable for ambient-temperature areas only and is not designed for cold storage or sub-zero environments.
| Parameter | Description |
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Maximum Door Size | Width: 1000–6000 mm; Height: 1500–6000 mm |
| Operating Speed | Opening: 0.6–1.2 m/s (adjustable); Closing: 0.6 m/s (adjustable) |
| Curtain Thickness & Color | 7-12mm mm thick PVC curtain; available in Blue, Orange, Gray |
| Motor Power | 0.75-3.8kW (depends on door size and speed) |
| Temperature Range | Under normal temperature conditions, the temperature must not be lower than 5°C. |
| Sealing Performance | High-quality brush seals on tracks; bottom EPDM seal for superior sealing |
| Wind Resistance | Up to Class 6 (reinforceable to Class 8) |
| Manual Operation | Can be manually opened with a wrench during power failure or malfunction |
| Power Requirements | 220V / 13A, Single-phase, 50–60Hz; IP54 control box; complies with electrical safety standards |
| Protection & Insulation | IP54 rating for water and dust protection; suitable for harsh environments |
| Control & Switching Options | Standard: one-button switch with emergency stop; Optional: Radar sensor, Ground magnetic sensor, Pull-rope switch, Remote control |
Reduces temperature fluctuations between food processing zones
Minimizes contamination risks with smooth PVC surface
Fast opening and closing speeds allow uninterrupted staff and material movement
Supports high-frequency operations in busy food facilities
Thermal insulation reduces energy loss
Low maintenance and long service life
Robust frame and guide rails for industrial use
Infrared sensors and bottom soft edge ensure operator safety
The main insulation feature of this insulated high-speed door is its thick PVC curtain:
Curtain thickness: 7–12 mm
Multi-layer structure reduces temperature transfer and improves energy efficiency
Maintains flexibility for fast opening and closing cycles
Durable and easy to clean for food hygiene compliance
This ensures stable internal temperatures and smooth logistics flow in food processing facilities without refrigeration.
No. It is specifically designed for ambient-temperature areas and cannot operate at sub-zero temperatures.
It allows fast access while maintaining hygiene and temperature stability, reducing energy loss and contamination risks.
Yes. The door supports hundreds to thousands of cycles per day, ideal for busy production lines.
|
|
|
