Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High-Speed Stainless Steel Industrial Door

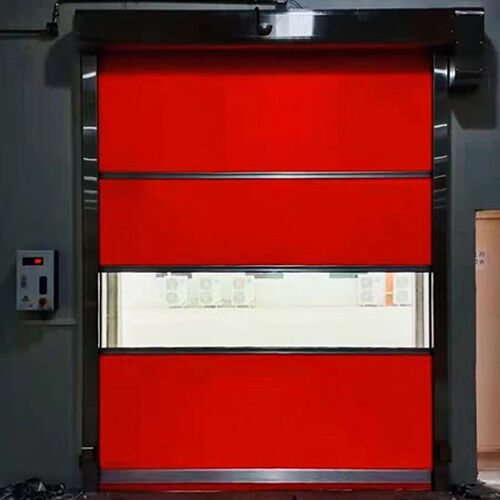

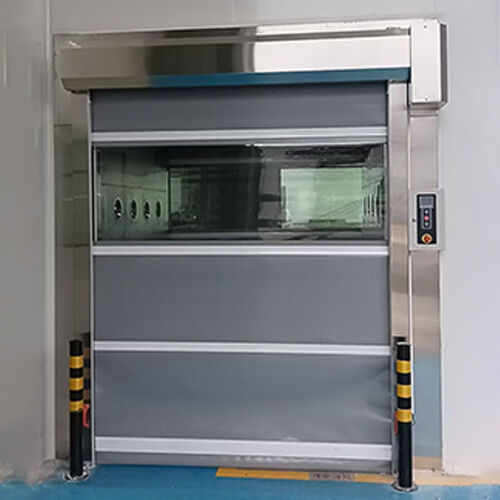

The Industrial High Speed Door for Packaging Areas with stainless steel structure is specially designed for environments where hygiene, cleanliness, and durability are critical.
In packaging areas, frequent movement of materials and personnel requires fast access without compromising sanitation standards. The stainless steel high speed door offers excellent corrosion resistance, smooth surface finish, and easy cleaning, making it ideal for food, pharmaceutical, and hygienic packaging operations.
Packaging areas require strict hygiene control.
This design ensures long-term cleanliness and compliance with hygiene standards.
 |
|
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Stainless steel offers superior hygiene, corrosion resistance, and easy cleaning, making it ideal for packaging environments.
Yes. The stainless steel structure and sealed design support regular cleaning and wash-down operations.
Yes. The servo motor system supports high-frequency operation, ideal for continuous packaging lines.
Yes. Size, stainless steel grade, curtain type, control system, and safety options can all be customized.
|
|
|
Contact Changzhou YOHO Industrial Door Co., Ltd. for customized solutions, factory-direct pricing, and professional technical support.
