Large Industrial High Speed Door Windproof For Automotive Factories
  • name
  • name

Large Industrial High Speed Door Windproof For Automotive Factories

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High-Speed PVC Industrial Door
Color:
Yellow/Blue/Red/Grey/White/Transparent
Size:
3x3 M Or Customized (max Size:6x8m)
Voitage:
380V Or 220V
Name:
High-Speed PVC Industrial Door
Panel Material:
Anti-skid Checkered Plate
Material:
PVC Curtain / Galvanized Steel / Stainless Steel
Power:
0.75-1.5KW
Door Width:
1000 Mm - 6000 Mm
Door Height:
1500 Mm - 6000 Mm
Application:
Automotive Factories
Highlight:

Large Industrial High Speed Door

,

Industrial High Speed Door Windproof

,

Large Industrial Door Windproof

Product Description

Large Size & Wind Resistance Design Industrial High Speed Door For Automotive Factories

The Industrial High Speed Door for Automotive Factories is engineered to meet the demanding requirements of modern automotive production environments, where high traffic flow, durability, safety, and efficiency are essential.

Automotive plants involve frequent movement of vehicles, components, forklifts, and automated equipment across different production zones. This high speed door features fast opening speed, strong wind resistance, and reliable safety protection, helping optimize production flow while maintaining environmental separation between workshops.

Product Specifications

Material PVC curtain / Galvanized steel / Stainless steel
Max Door Size Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable)
Curtain Material 0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power 0.75-1.5KW (depending on size & speed)
Temperature Range -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for optimal sealing
Wind Resistance Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function In case of power failure or malfunction, the door can be manually opened with a wrench
Power Requirements 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards
Insulation Protection IP54 rating, providing water and dust protection, suitable for harsh environments
Switching Methods Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control

Key Features

  • High-speed operation for frequent vehicle and forklift access
  • Reinforced curtain material for impact resistance
  • Optional automation and safety control systems
  • Durable structure for long-term use

Product Advantages

  • Enhances workflow efficiency in assembly lines
  • Reduces downtime due to congestion
  • Maintains clean and safe workshop environment
  • Low maintenance and long service life

Applications

  • Automotive assembly plants
  • Vehicle body and welding workshops
  • Painting and coating areas
  • Auto parts manufacturing facilities
  • Logistics passages inside automotive factories

Large Size & Wind Resistance Design

Automotive factories often require wide openings and stable door performance.

  • Maximum Door Size: Up to 6000 mm width × 6000 mm height
  • Reinforced Curtain & Structure: Improves stability during operation
  • Wind Resistance: Standard Grade 6, reinforced to Grade 8
  • Servo-Controlled Operation: Ensures precise stopping even with large door panels

This design ensures safe, smooth, and reliable operation in high-traffic automotive environments.

FAQ

Q1: Why are high speed doors important in automotive factories?

They help improve production efficiency by allowing fast movement of vehicles, forklifts, and materials while maintaining workshop separation and safety.

Q2: Can the door handle large openings for vehicles?

Yes. The door supports large dimensions up to 6m × 6m, suitable for vehicle and logistics passages.

Q3: Is the door suitable for high-frequency operation?

Yes. The servo motor system supports thousands of cycles per day, ideal for continuous automotive production lines.

Q4: What safety protections are included?

Infrared photoelectric sensors, bottom soft safety edge, emergency stop, and fast rebound function are standard.

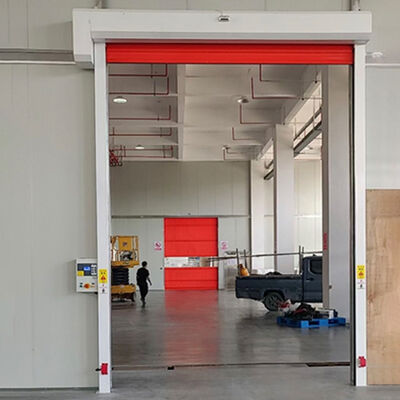

Large Industrial High Speed Door Windproof For Automotive Factories 0
