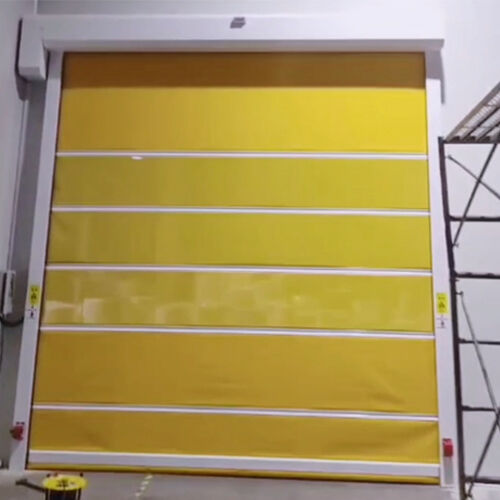

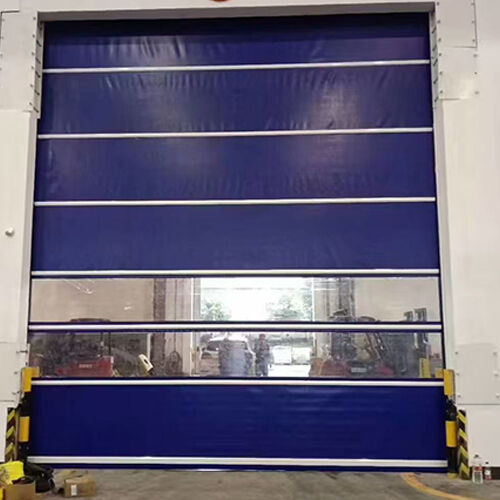

Low Noise High Speed Garage Door 380V 220V Underground Parking Garage Doors
  • name
  • name

Low Noise High Speed Garage Door 380V 220V Underground Parking Garage Doors

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High-Speed PVC Industrial Door
Name:
Underground Parking Garage Doors
Color:
Yellow/Blue/Red/Grey/White/Transparent
Size:
3x3 M Or Customized (max Size:6x8m)
Panel Material:
Anti-skid Checkered Plate
Material:
PVC Curtain / Galvanized Steel / Stainless Steel
Power:
0.75-1.5KW
Voitage:
380V Or 220V
Door Width:
1000 Mm - 6000 Mm
Door Height:
1500 Mm - 6000 Mm
Application:
Pharmaceutical Cleanrooms
Highlight:

Low Noise High Speed Garage Door

,

High Speed Garage Door 380V

,

220V Underground Parking Garage Doors

Product Description

Industrial High Speed Door With Safety Protection System For Underground Parking Garage

Our Industrial High Speed Door is specially designed for underground parking garages, where high traffic flow, safety, ventilation control, and energy efficiency are essential. With rapid opening and closing speed and a high-sealing structure, the door helps reduce vehicle congestion, prevent exhaust gas backflow, and minimize temperature loss between indoor and outdoor environments. Its durable construction ensures reliable performance under frequent daily operation.

Product Specifications:

Parameter Description
Material PVC curtain / Galvanized steel / Stainless steel
Max Door Size Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable)
Curtain Material 0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power 0.75-1.5KW (depending on size & speed)
Temperature Range -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing
Wind Resistance Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function In case of power failure or malfunction, the door can be manually opened with a wrench.
Power Requirements 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards.
Insulation Protection IP54 rating, providing water and dust protection, suitable for harsh environments.
Switching Methods Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc.

Key Features

  • High-Speed Operation: Reduces vehicle waiting time and improves traffic flow during peak hours.
  • Energy Efficient Design: Minimizes air exchange to reduce ventilation and air-conditioning energy loss.
  • Durable & Wind-Resistant Structure: Withstands frequent opening cycles and underground airflow pressure.
  • Safety Protection System: Equipped with infrared sensors and anti-collision functions to protect vehicles and pedestrians.
  • Low Noise Operation: Ensures quiet performance suitable for residential and commercial buildings.

Unique Advantages in Underground Parking Garages

  • Improves Traffic Efficiency: Fast door response prevents congestion at entry and exit points.
  • Controls Exhaust & Airflow: Helps limit exhaust gas spread and supports ventilation system efficiency.
  • Reduces Energy Consumption: Tight sealing minimizes temperature loss, lowering HVAC and ventilation costs.
  • Flexible Installation Options: Suitable for various entrance sizes with optional transparent windows for visibility and safety.

Underground Parking Garage Applications

  • Residential Underground Parking Garage
  • Commercial Building Parking Garage
  • Shopping Mall & Retail Parking Garage
  • Hotel & Mixed-Use Building Parking Garage
  • Hospital Underground Parking Garage
  • Public Parking Facilities
  • Basement Access of Industrial & Logistics Buildings

FAQ

Is the Industrial High Speed Door suitable for high-frequency vehicle access?
Yes, it is specifically designed for high-cycle operation, making it ideal for underground parking garages with heavy daily traffic.

Can the door be integrated with access control systems?
Yes, it supports integration with license plate recognition systems, card readers, remote controls, and parking management platforms.

What safety features are included?
Standard safety features include infrared sensors, emergency stop functions, and anti-collision protection for vehicles and pedestrians.

How does it help with energy efficiency?
Fast opening and closing combined with tight sealing significantly reduce air exchange, lowering ventilation and HVAC energy consumption.

Low Noise High Speed Garage Door 380V 220V Underground Parking Garage Doors 0

Low Noise High Speed Garage Door 380V 220V Underground Parking Garage Doors 1
