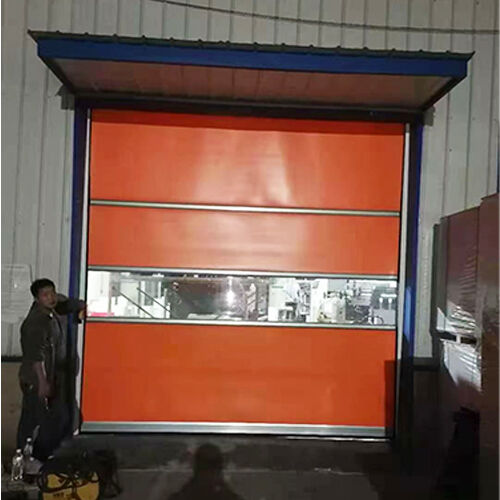

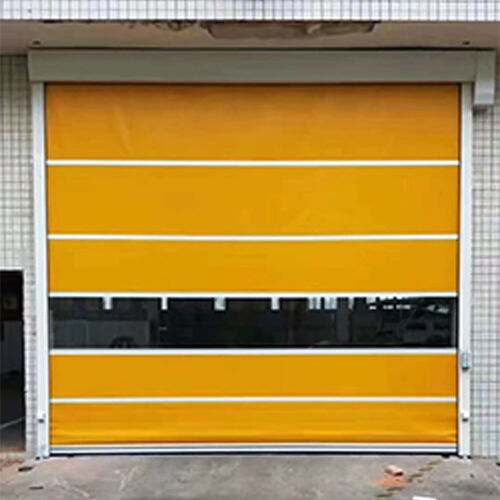

380V 220V Rapid Industrial Doors High Speed Industrial Security Door For Agricultural Production

Industrial High Speed Door For Agricultural Production – Efficient Farm Processing Doors

The Industrial High Speed Door for Agricultural Production is designed for modern farms, agricultural processing plants, and agro-industrial facilities where efficiency, hygiene, and environmental control are essential.

In agricultural environments such as grain processing, vegetable sorting, fruit packing, and livestock-related facilities, frequent movement of goods and equipment can lead to dust, insects, temperature loss, and contamination. This high-speed door provides fast operation, tight sealing, and durable construction, helping farms improve productivity while maintaining cleaner and more controlled processing areas.

Product Advantages

1️⃣ Improved Processing Efficiency

• Fast opening and closing reduces waiting time for forklifts and workers

• Designed for high-frequency operation, supporting continuous agricultural workflows

2️⃣ Hygiene & Contamination Control

• Smooth, easy-to-clean curtain surface

• Reduces dust, insects, and debris entering processing zones

• Supports hygiene requirements in food-grade agricultural processing

3️⃣ Energy Saving & Environmental Control

• Tight sealing minimizes air exchange between zones

• Helps maintain temperature and humidity in storage and processing areas

4️⃣ Safe & Reliable Operation

• Infrared safety sensors and soft bottom edge protect personnel and equipment

• Stable servo motor system ensures precise and safe door movement

5️⃣ Durable & Low Maintenance

• Resistant to moisture, dust, and harsh farm environments

• Long service life with minimal maintenance requirements

Product Features

• High-Speed Operation: Opening speed up to 1.2 m/s (adjustable), closing speed 0.6 m/s

• Wide Size Range: Door width 1000–6000 mm, height 1500–6000 mm

• Curtain Material: PVC curtain, 0.8–2.0 mm thickness, suitable for agricultural environments

• Frame Material: Galvanized steel (standard), stainless steel optional

• Advanced Control System: DSP-based servo motor, LED fault display, reverse wiring protection

• Sealing System: Bottom airbag or soft safety edge, side brush seals

• Safety Protection: Infrared photoelectric sensors, emergency stop

• Manual Override: Emergency manual opening during power failure

Applications

• Agricultural processing plants

• Fruit and vegetable sorting and packing lines

• Grain storage and handling facilities

• Livestock feed processing areas

• Farm logistics and storage warehouses

• Temperature-controlled agricultural storage zones

Product Specifications

Contact Us:

Email:yohao260105@gmail.com

Whatsapp:+8618021983369

Oem service:
Welcome customized size
We are experience factory for OEM&ODM service

Frequently Asked Questions (FAQ)

Q1: Is this high speed door suitable for agricultural processing environments?

Yes. It is designed to withstand dust, moisture, and frequent use while supporting hygiene and environmental control in agricultural facilities.

Q2: Can it handle high-frequency daily operation?

Yes. The servo motor system supports hundreds to over 1,000 cycles per day, ideal for busy farm processing lines.

Q3: Does the door help reduce dust and insect intrusion?

Yes. Tight sealing with side brush seals and bottom airbag significantly reduces dust, insects, and debris entering controlled areas.

Q4: What materials are available for agricultural use?

Standard configuration includes a durable PVC curtain and galvanized steel frame. Stainless steel frames are optional for higher hygiene requirements.

Detailed Feature Example: High-Speed Servo Control System

One of the most important features for agricultural production is fast and reliable access.

• Servo Motor with Closed-Loop Control: Torque, position, and speed loops ensure smooth and accurate door movement.

• High-Frequency Capability: Designed for 1,000+ cycles/day, suitable for continuous farm processing operations.

• Adjustable Speed: Opening speed up to 1.2 m/s, closing speed 0.6 m/s, adjustable according to site needs.

• Safety & Reliability: LED fault display, reverse wiring protection, and emergency manual operation ensure stable performance.

This system helps agricultural facilities increase throughput, reduce downtime, and maintain a cleaner working environment.
