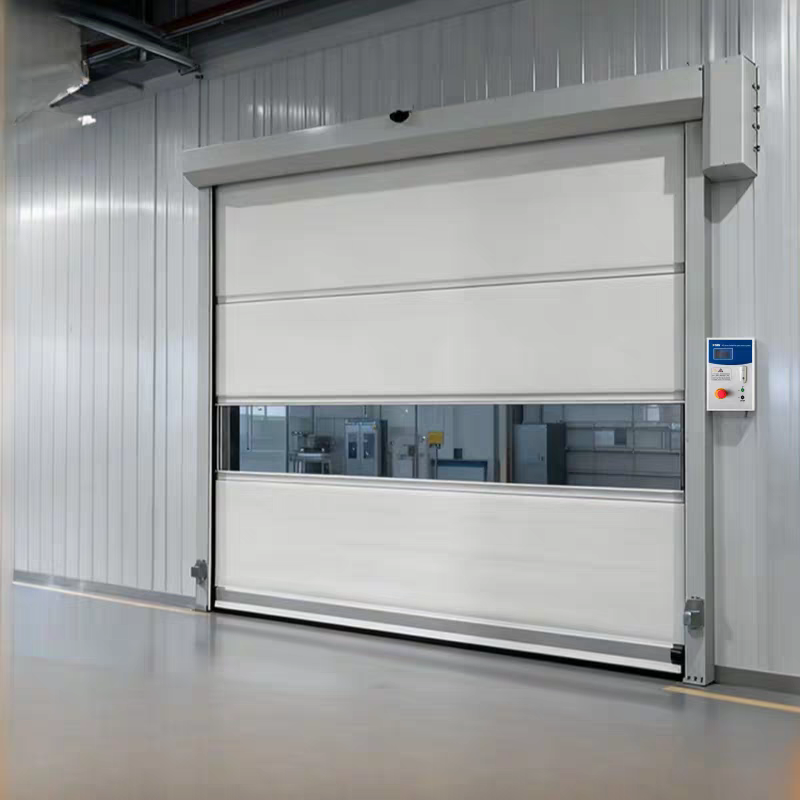

Custom Dimension PVC Industrial High Speed Door with Custom Colors and Activation for Non-Standard Openings

Custom Dimension PVC Industrial High Speed Door with Custom Colors and Activation for Non-Standard Openings

Custom Dimension High Speed Door

Non Standard Opening Door

Tailored Industrial Door Sizes

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

YOHO-PVC-HSD-CD

Chat Now
Request A Quote
Custom Dimension PVC Industrial High Speed Door with Custom Colors and Activation for Non-Standard Openings Custom Dimension PVC Industrial High Speed Door with Custom Colors and Activation for Non-Standard Openings Custom Dimension PVC Industrial High Speed Door with Custom Colors and Activation for Non-Standard Openings
Product Details
Custom Dimensions:
Width 1000-6000 Mm; Height 1500-6000 Mm
Custom Colors:
Blue, Orange, Gray And Other Options
Custom Activation:
Radar, Loop Detector, Remote, Pull-cord, Push Button
Custom Safety:
Photoelectric Sensors, Optional Safety Bottom Edge
Curtain Material:
PVC, 0.8-2.0 Mm Thickness
Frame Material:
Galvanized Steel / Stainless Steel
Operating Speed:
Opening 0.8-2.0 M/s; Closing 0.5-0.8 M/s
Motor Power:
0.75-1.5 KW
Operating Temperature:
-10 C To 60 C
Voltage:
220V/380V, 50Hz-60Hz
Highlight:

Custom Dimension High Speed Door

,

Non Standard Opening Door

,

Tailored Industrial Door Sizes

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 900-2500 / Unit
Packaging Details
Plywood case with protective film and shock-proof packing
Delivery Time
10-15 working days
Payment Terms
T/T
Supply Ability
300 Units per Month
Related Products
Good price Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use online

Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use

Chat Now
Good price Replaceable Curtain PVC High Speed Door with DSP Servo System for Easy Maintenance online

Replaceable Curtain PVC High Speed Door with DSP Servo System for Easy Maintenance

Chat Now
Good price Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System online

Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System

Chat Now
Good price Motorized Servo Drive PVC High Speed Door for 1000+ Cycles Daily with Adjustable Speed 0.8-2.0 m/s online

Motorized Servo Drive PVC High Speed Door for 1000+ Cycles Daily with Adjustable Speed 0.8-2.0 m/s

Chat Now
Contact Us
86--18021983369
yohao260105@gmail.com
Chat Now
Product Description
Custom Dimension PVC Industrial High Speed Door For Non Standard Facility Openings
Not every doorway is a standard size. Wide loading bays, tall openings, and irregular structures often cannot accept an off-the-shelf door. This Industrial High Speed Door is built around one core selling point: custom sizes and configurations for your facility. Customized door dimensions, curtain colors, activation methods, and safety options help meet different industrial requirements, so the door fits your opening and your workflow, not the other way around.
Customization Highlights
  • Custom Door Dimensions: Width 1000-6000 mm and height 1500-6000 mm, made to match your exact opening.

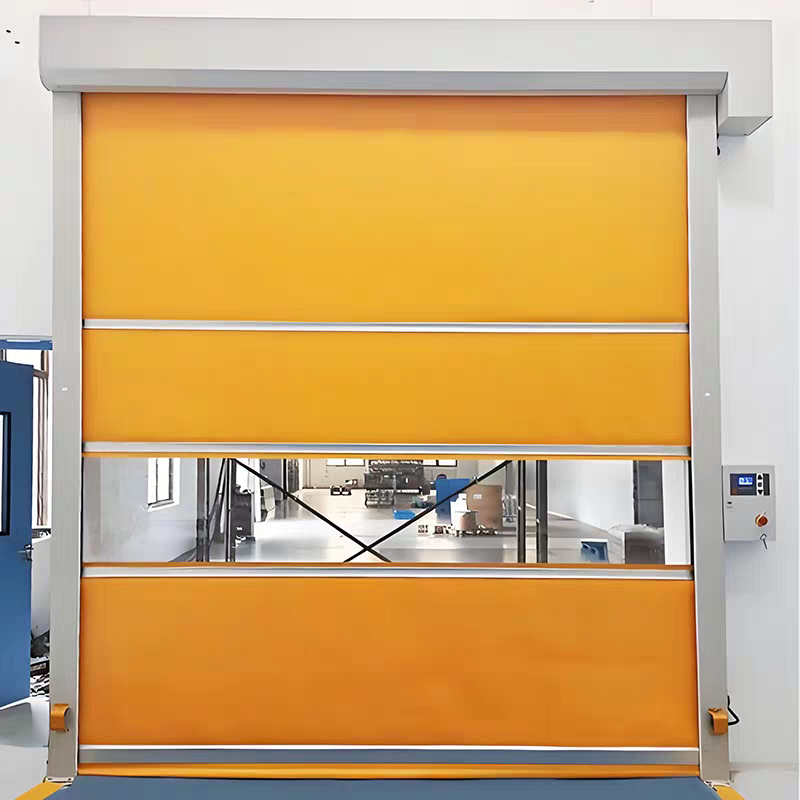

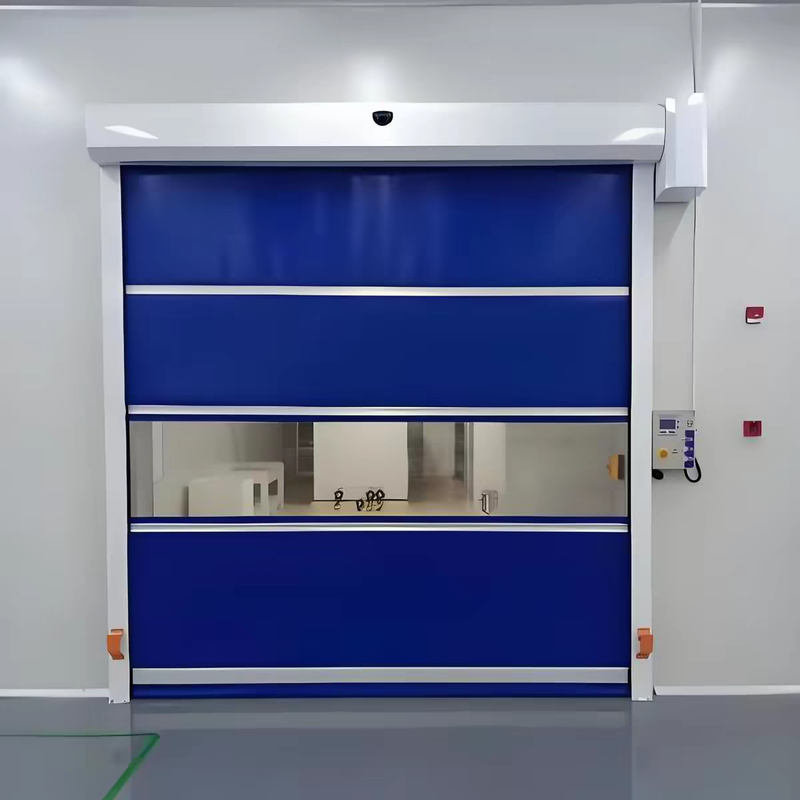

  • Custom Curtain Colors: Blue, orange, gray, and other options to suit your facility.
  • Custom Activation Methods: Radar, loop detector, remote, pull-cord, or push button selected to suit your traffic.
  • Custom Safety Options: Photoelectric sensors and an optional safety bottom edge to match your safety needs.
  • Custom Materials: PVC curtain with galvanized steel or optional stainless steel frame.
  • OEM & ODM Support: Tailored configurations for project-specific requirements.
Why It Improves Fit And Operation
  • Perfect Fit: Made-to-measure dimensions suit non-standard and oversized openings.
  • Matched To Workflow: Activation and speed settings tuned to your traffic pattern.
  • Consistent Look: Curtain colors can be chosen to match your facility or brand.
  • Right Safety Level: Safety options configured to your operating environment.
  • Reliable And Efficient: Fast operation and robust drive keep customized doors performing.
Typical Applications
  • Non-standard and oversized facility openings
  • Wide loading bays and tall doorways
  • Facilities with special structural requirements
  • Projects needing OEM or ODM door solutions
  • Any opening requiring a tailored configuration
Product Specifications
Custom Dimensions Width 1000-6000 mm, Height 1500-6000 mm
Custom Colors Blue, orange, gray, and other options
Custom Activation Radar, loop detector, remote, pull-cord, push button
Custom Safety Photoelectric sensors, optional safety bottom edge
Material PVC curtain / Galvanized steel (standard), stainless steel optional
Curtain Thickness 0.8 / 1.2 / 1.5 / 2.0 mm
Operating Speed Opening 0.8-2.0 m/s (adjustable); Closing 0.5-0.8 m/s (adjustable)
Motor Power 0.75-1.5 KW (depending on size and speed)
Temperature Range -10°C to 60°C
Power Requirements 220V/13A single-phase, 50Hz-60Hz, IP54 control box
Frequently Asked Questions
  • Can the door be made to my exact size? Yes, widths and heights are customized to match your opening.
  • Can I choose the color and activation method? Yes, curtain colors, activation methods, and safety options are customizable.
  • Do you offer OEM and ODM? Yes, tailored configurations and OEM/ODM services are available.
Contact Us
Changzhou YOHO Industrial Door Co., Ltd.
Email: yohao260105@gmail.com
WhatsApp: +8618021983369
OEM & ODM welcome. Contact us today for factory-direct pricing and customized door solutions.
