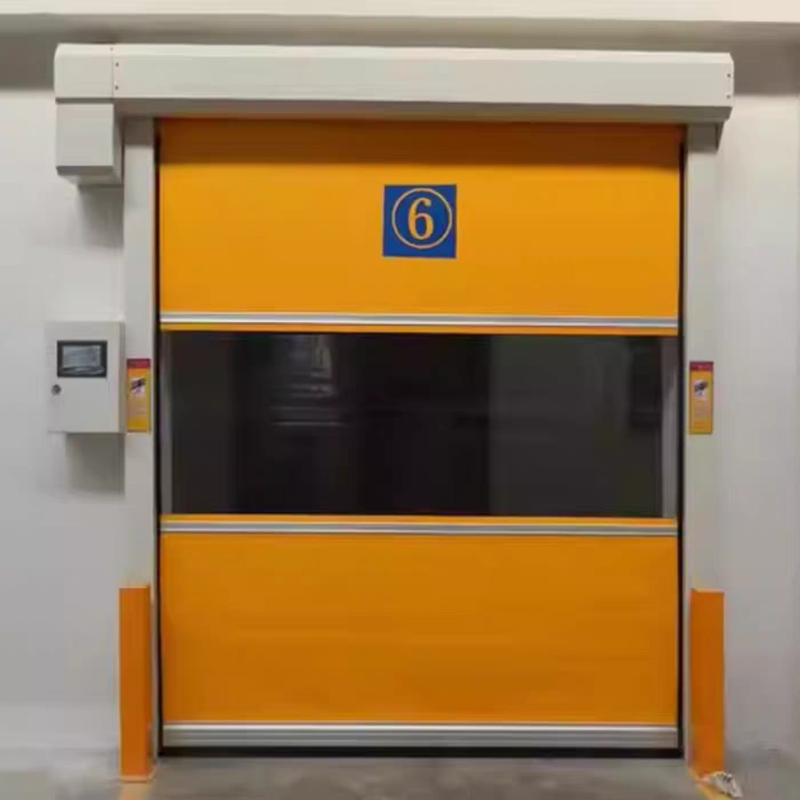

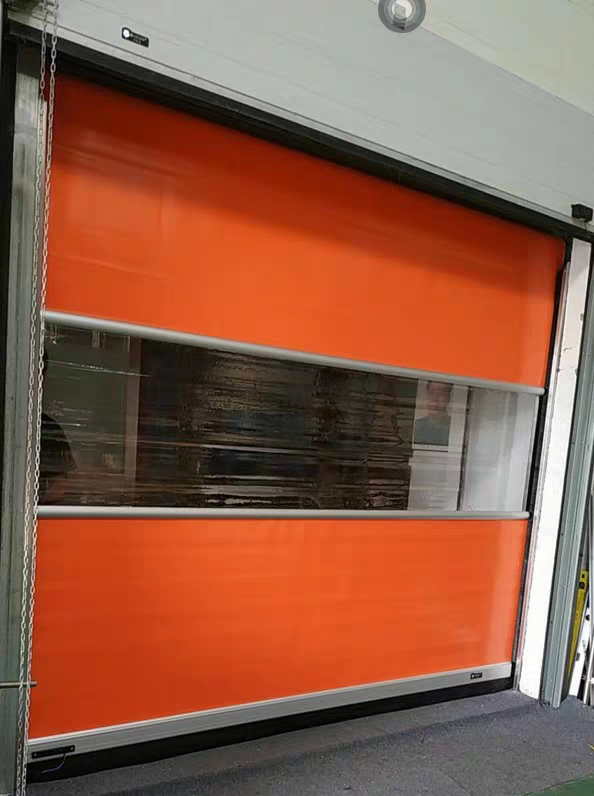

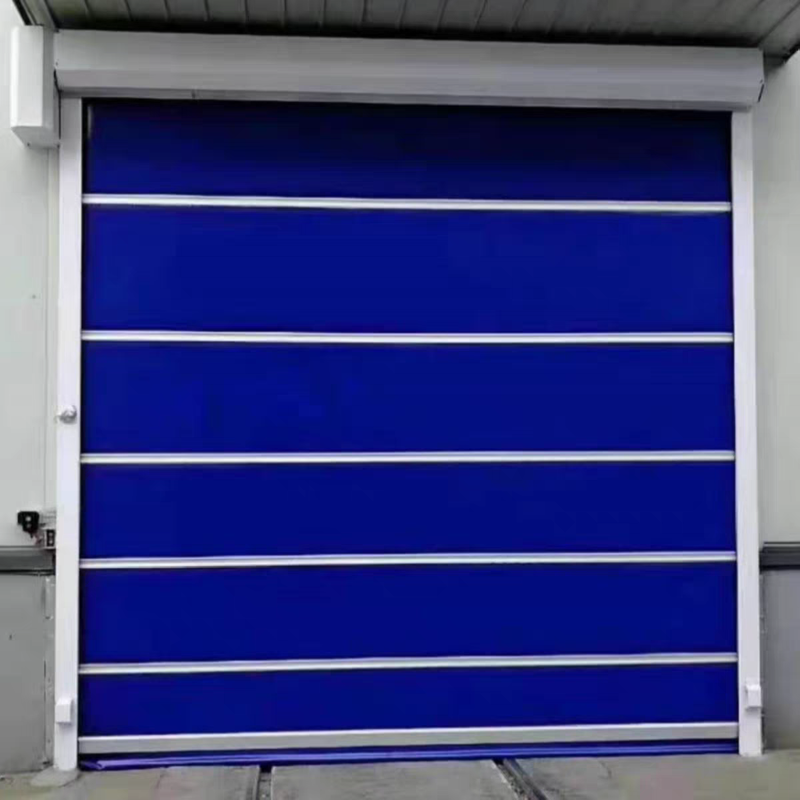

Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System

Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System

Quick Access Component Door

Simplified Routine Maintenance Door

Replaceable Wear Parts Door

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

YOHO-PVC-HSD-QA

Chat Now
Request A Quote
Product Details
Maintenance Design:
Quick-access Components, Replaceable Wear Parts, Replaceable Curtain
Replaceable Parts:
Curtain, Brush Seals, Bottom Seal
Opening Speed:
0.8-2.0 M/s (adjustable)
Closing Speed:
0.5-0.8 M/s (adjustable)
Max Door Size:
Width 1000-6000 Mm; Height 1500-6000 Mm
Curtain Material:
PVC, 0.8-2.0 Mm Thickness
Frame Material:
Galvanized Steel / Stainless Steel
Motor Power:
0.75-1.5 KW
Control System:
DSP Servo System With LED Fault Display
Operating Temperature:
-10 C To 60 C
Voltage:
220V/380V, 50Hz-60Hz
Highlight:

Quick Access Component Door

,

Simplified Routine Maintenance Door

,

Replaceable Wear Parts Door

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 900-2500 / Unit
Packaging Details
Plywood case with protective film and shock-proof packing
Delivery Time
10-15 working days
Payment Terms
T/T
Supply Ability
300 Units per Month
Product Description
Quick Access Component PVC Industrial High Speed Door For Simplified Routine Maintenance
Easy Maintenance Design

Routine maintenance should not turn into a major project. When components are buried and hard to reach, even simple servicing drags on and interrupts operations. This Industrial High Speed Door is built around one core selling point: easy maintenance with replaceable components. Accessible, quick-access components and replaceable wear parts simplify routine maintenance and reduce service interruptions, so your team can keep the door running with less effort.

Quick-Access Components

Key parts are arranged for fast, convenient access during inspection and service.

Replaceable Wear Parts

Brushes, seals, and other wear items are designed as replaceable components.

Replaceable Curtain

The PVC curtain can be replaced on site without replacing the whole door.

LED Fault Display

Clear fault display helps operators spot issues early and act fast.

Operational Benefits
  • Faster Service: Accessible components shorten maintenance time and effort
  • Lower Service Costs: Replacing parts instead of whole units saves money over time
  • Reduced Interruptions: Quick servicing keeps traffic flowing with minimal disruption
  • Predictable Upkeep: Easy access supports regular, planned maintenance
  • Durable And Reliable: Robust drive and control keep daily operation dependable
Typical Applications
  • Facilities planning regular preventive maintenance
  • High-traffic doorways where downtime is costly
  • Warehouses and workshops needing quick servicing
  • Production lines where fast repairs matter
  • Any doorway needing easy, low-cost maintenance
Product Specifications
Specification Details
Maintenance Design Quick-access components, replaceable wear parts, replaceable curtain
Material PVC curtain / Galvanized steel (standard), stainless steel optional
Max Door Size Width 1000-6000 mm, Height 1500-6000 mm
Operating Speed Opening 0.8-2.0 m/s (adjustable); Closing 0.5-0.8 m/s (adjustable)
Curtain Thickness 0.8 / 1.2 / 1.5 / 2.0 mm
Motor Power 0.75-1.5 KW (depending on size and speed)
Sealing System Side brush seals with bottom airbag / EPDM seal
Control System DSP-based servo system with LED fault display
Temperature Range -10°C to 60°C
Power Requirements 220V/13A single-phase, 50Hz-60Hz, IP54 control box
Frequently Asked Questions
  • Are the components easy to reach? Yes, quick-access components are arranged for fast inspection and service.
  • Are wear parts replaceable? Yes, brushes, seals, and other wear items are replaceable components.
  • Can it be customized? Yes, dimensions, curtain material, and maintenance-related options are customizable.
