Name: Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use
Brand: Changzhou YOHO Industrial Door Co., Ltd.
SKU: YOHO-PVC-HSD-CC
Price: 1700.00 USD
Availability: InStock

Home > products > Industrial High Speed Door >

Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use

Custom Color High Speed Door

Tailored Configuration Door

Customized Industrial Door Options

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

YOHO-PVC-HSD-CC

Chat Now

Request A Quote

Product Details

Custom Colors:

Blue, Orange, Gray And Other Options

Custom Dimensions:

Width 1000-6000 Mm; Height 1500-6000 Mm

Custom Activation:

Radar, Loop Detector, Remote, Pull-cord, Push Button

Custom Safety:

Photoelectric Sensors, Optional Safety Bottom Edge

Curtain Material:

PVC, 0.8-2.0 Mm Thickness

Frame Material:

Galvanized Steel / Stainless Steel

Operating Speed:

Opening 0.8-2.0 M/s; Closing 0.5-0.8 M/s

Motor Power:

0.75-1.5 KW

Operating Temperature:

-10 C To 60 C

Voltage:

220V/380V, 50Hz-60Hz

Highlight:

Custom Color High Speed Door

Tailored Configuration Door

Customized Industrial Door Options

Payment & Shipping Terms

Minimum Order Quantity

1 Unit

Price

USD 900-2500 / Unit

Packaging Details

Plywood case with protective film and shock-proof packing

Delivery Time

10-15 working days

Payment Terms

T/T

Supply Ability

300 Units per Month

Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use

Chat Now

Replaceable Curtain PVC High Speed Door with DSP Servo System for Easy Maintenance

Chat Now

Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System

Chat Now

Motorized Servo Drive PVC High Speed Door for 1000+ Cycles Daily with Adjustable Speed 0.8-2.0 m/s

Chat Now

86--18021983369

yohao260105@gmail.com

Chat Now

Product Description

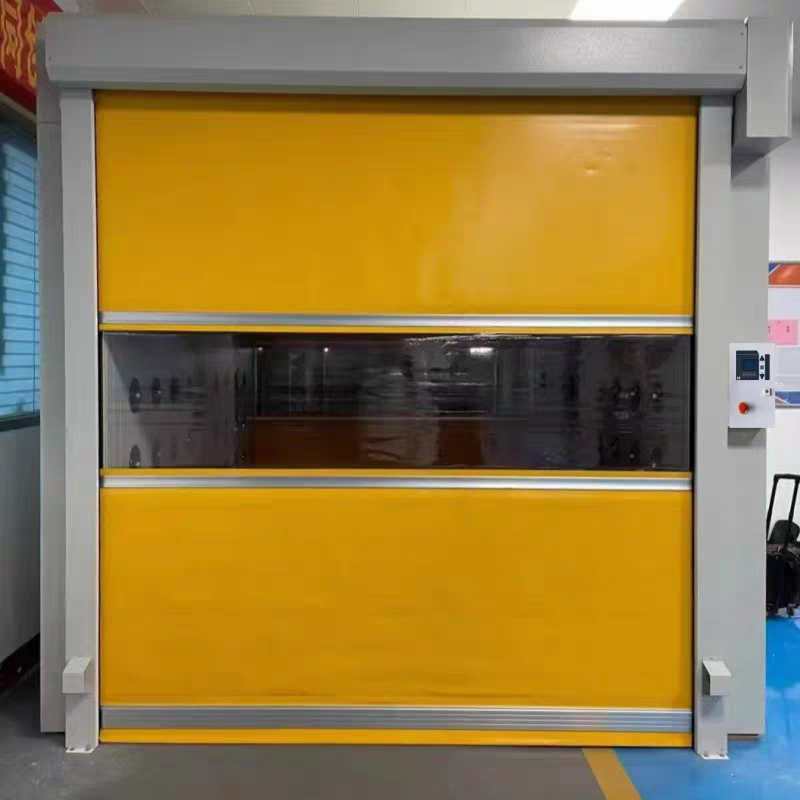

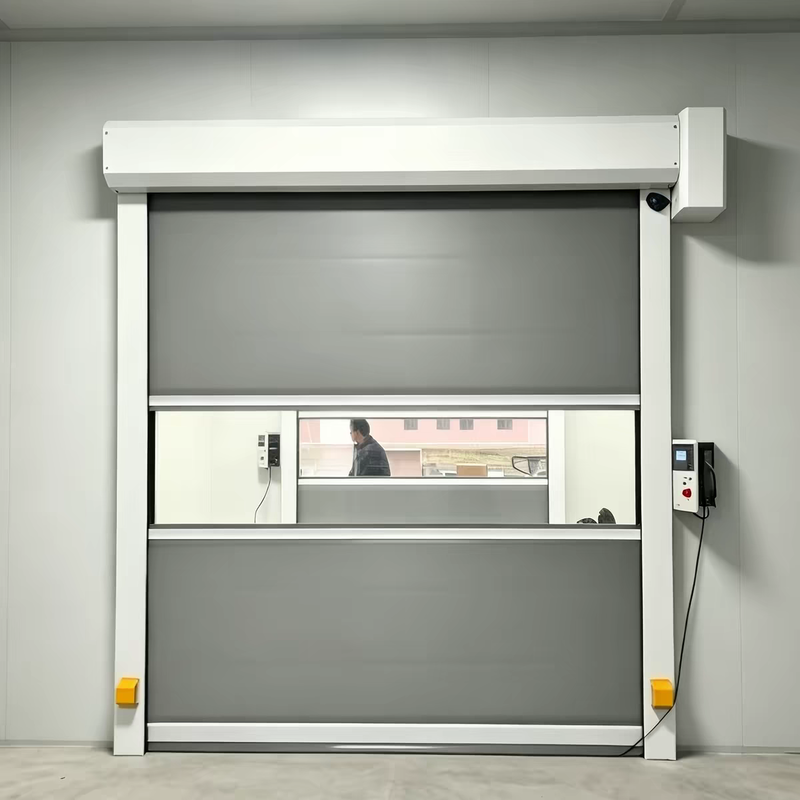

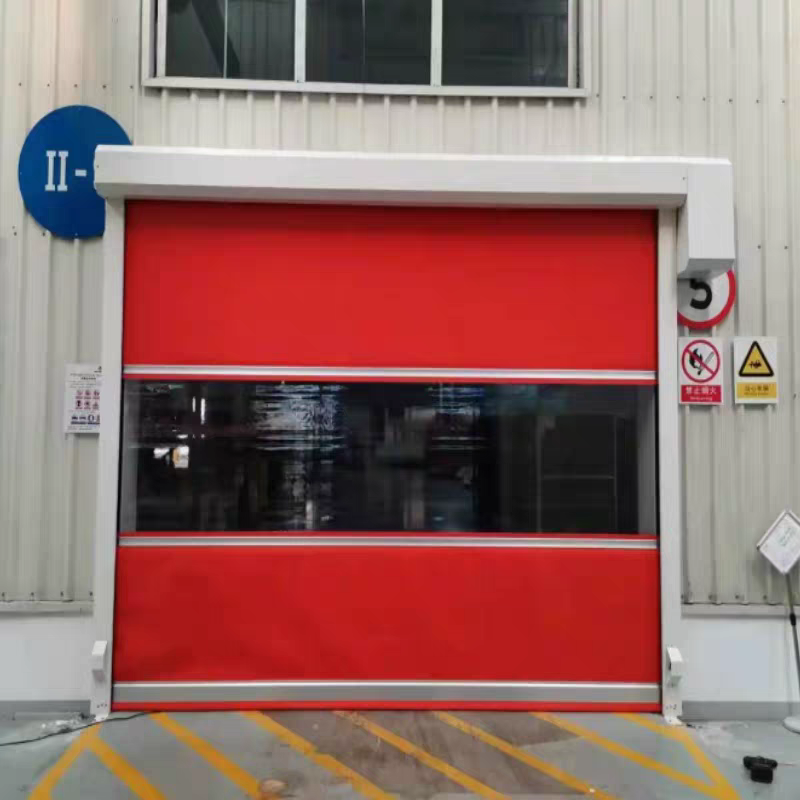

Custom Color Configuration PVC Industrial High Speed Door

Every facility has its own requirements. Between colors, activation methods, and safety needs, a one-size door rarely satisfies a whole project. This Industrial High Speed Door is built around one core selling point: custom sizes and configurations for your facility. Customized door dimensions, curtain colors, activation methods, and safety options help meet different industrial requirements, so each door is configured to match its environment.

Customization Highlights

Custom Curtain Colors: Blue, orange, gray, and other options to match your facility or brand
Custom Door Dimensions: Width 1000-6000 mm and height 1500-6000 mm, sized to your opening
Custom Activation Methods: Radar, loop detector, remote, pull-cord, or push button chosen for your traffic
Custom Safety Options: Photoelectric sensors and an optional safety bottom edge to match your needs
Custom Materials: PVC curtain with galvanized steel or optional stainless steel frame
OEM & ODM Support: Tailored configurations for project-specific requirements

Why It Improves Fit And Operation

Consistent Look: Curtain colors can be chosen to match your facility or brand identity
Matched To Workflow: Activation and speed settings tuned to each traffic pattern
Perfect Fit: Made-to-measure dimensions suit standard and non-standard openings
Right Safety Level: Safety options configured to your operating environment
Reliable And Efficient: Fast operation and robust drive keep customized doors performing

Typical Applications

Facilities with specific color or branding requirements
Mixed openings needing different configurations
Projects with varied activation and safety needs
OEM and ODM door projects
Any opening requiring a tailored configuration

Product Specifications

Custom Colors	Blue, orange, gray, and other options
Custom Dimensions	Width 1000-6000 mm, Height 1500-6000 mm
Custom Activation	Radar, loop detector, remote, pull-cord, push button
Custom Safety	Photoelectric sensors, optional safety bottom edge
Material	PVC curtain / Galvanized steel (standard), stainless steel optional
Curtain Thickness	0.8 / 1.2 / 1.5 / 2.0 mm
Operating Speed	Opening 0.8-2.0 m/s (adjustable); Closing 0.5-0.8 m/s (adjustable)
Motor Power	0.75-1.5 KW (depending on size and speed)
Temperature Range	-10°C to 60°C
Power Requirements	220V/13A single-phase, 50Hz-60Hz, IP54 control box

Frequently Asked Questions

Can I choose the curtain color? Yes, multiple curtain colors are available to match your facility or brand.
Can the door be made to my exact size? Yes, widths and heights are customized to match your opening.
Do you offer OEM and ODM? Yes, tailored configurations and OEM/ODM services are available.

Changzhou YOHO Industrial Door Co., Ltd.
Email: yohao260105@gmail.com
WhatsApp: +8618021983369
OEM & ODM welcome. Contact us today for factory-direct pricing and customized door solutions.
