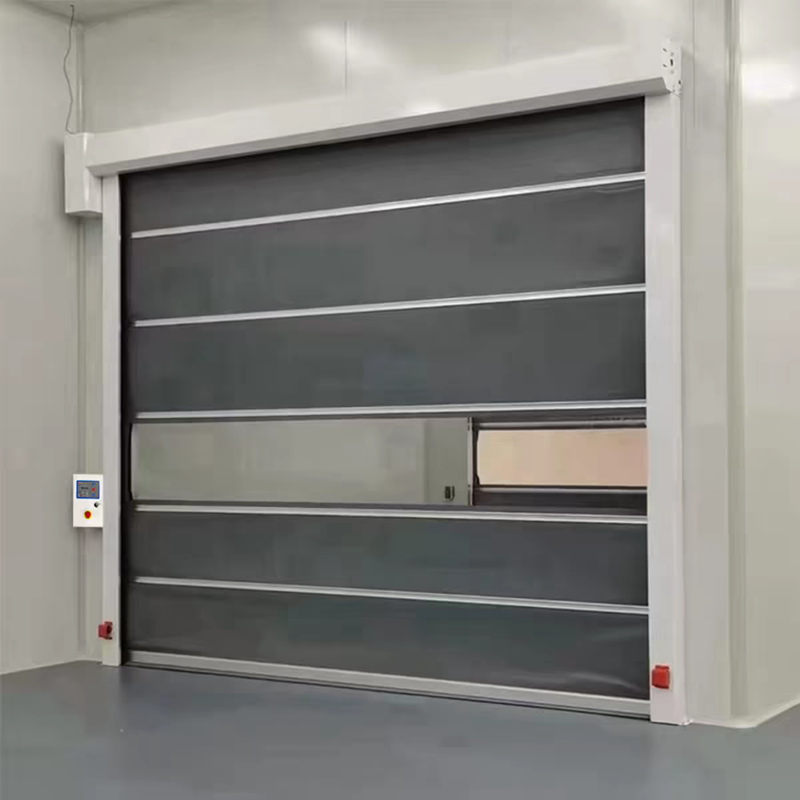

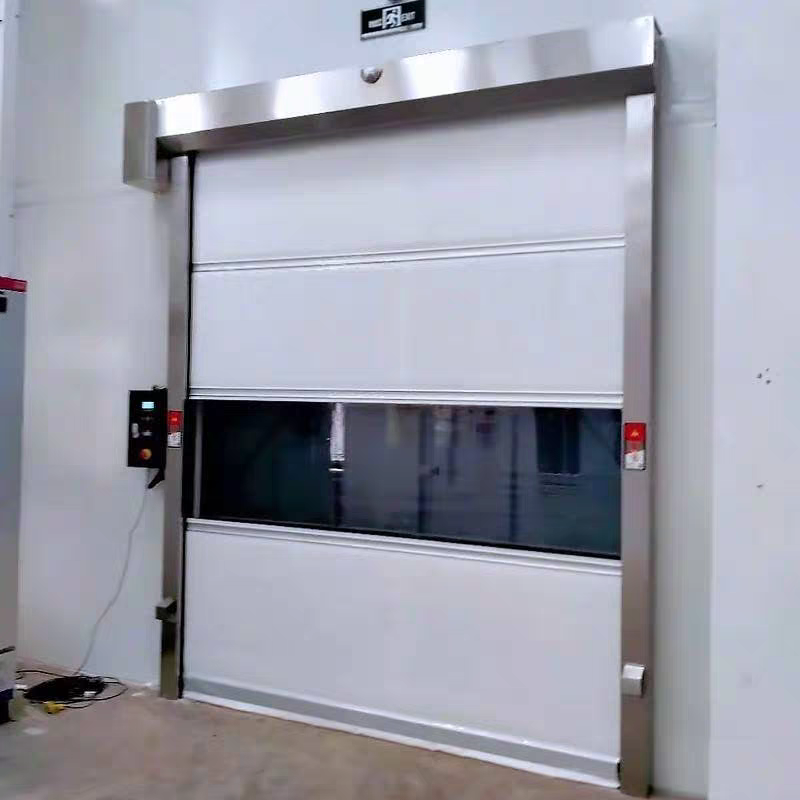

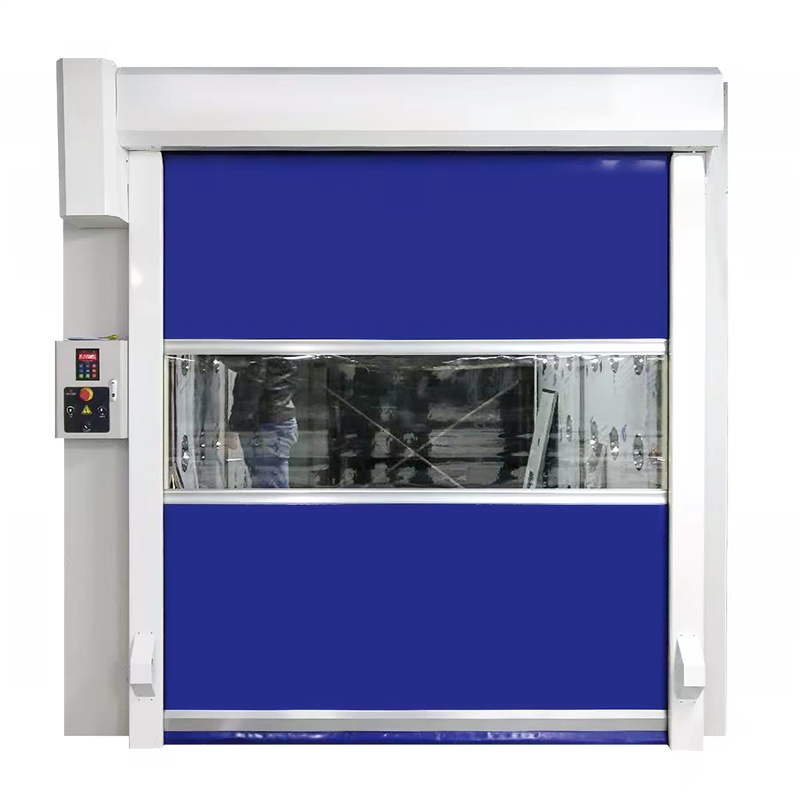

Intelligent Control Drive PVC High Speed Door with High-Frequency Duty and Adjustable Speed for Industrial Use

Intelligent Control Drive PVC High Speed Door with High-Frequency Duty and Adjustable Speed for Industrial Use

Intelligent Control Drive Door

High-Frequency Manufacturing Door

Continuous Duty Industrial Door

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

YOHO-PVC-HSD-IC

Chat Now
Request A Quote
Intelligent Control Drive PVC High Speed Door with High-Frequency Duty and Adjustable Speed for Industrial Use Intelligent Control Drive PVC High Speed Door with High-Frequency Duty and Adjustable Speed for Industrial Use Intelligent Control Drive PVC High Speed Door with High-Frequency Duty and Adjustable Speed for Industrial Use
Product Details
Drive System:
Motorized Drive With DSP-based Intelligent Control
High-Frequency Duty:
1,000+ Cycles Per Day
Opening Speed:
0.8-2.0 M/s (adjustable)
Closing Speed:
0.5-0.8 M/s (adjustable)
Max Door Size:
Width 1000-6000 Mm; Height 1500-6000 Mm
Curtain Material:
PVC, 0.8-2.0 Mm Thickness
Frame Material:
Galvanized Steel / Stainless Steel
Motor Power:
0.75-1.5 KW
Sealing System:
Side Brush Seals With Bottom Airbag / EPDM Seal
Operating Temperature:
-10 C To 60 C
Voltage:
220V/380V, 50Hz-60Hz
Highlight:

Intelligent Control Drive Door

,

High-Frequency Manufacturing Door

,

Continuous Duty Industrial Door

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 900-2500 / Unit
Packaging Details
Plywood case with protective film and shock-proof packing
Delivery Time
10-15 working days
Payment Terms
T/T
Supply Ability
300 Units per Month
Related Products
Good price Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use online

Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use

Chat Now
Good price Replaceable Curtain PVC High Speed Door with DSP Servo System for Easy Maintenance online

Replaceable Curtain PVC High Speed Door with DSP Servo System for Easy Maintenance

Chat Now
Good price Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System online

Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System

Chat Now
Good price Motorized Servo Drive PVC High Speed Door for 1000+ Cycles Daily with Adjustable Speed 0.8-2.0 m/s online

Motorized Servo Drive PVC High Speed Door for 1000+ Cycles Daily with Adjustable Speed 0.8-2.0 m/s

Chat Now
Contact Us
86--18021983369
yohao260105@gmail.com
Chat Now
Product Description
Intelligent Control Drive PVC Industrial High Speed Door For Demanding Manufacturing Environments
Demanding industrial environments punish weak door systems. Dust, heat, vibration, and non-stop production traffic all take a toll on drives that are not built for the job. This Industrial High Speed Door is built around one core selling point: a reliable drive system for high-frequency operation. A motorized drive and intelligent control system support frequent opening and closing, keeping performance steady even in the harshest, most demanding manufacturing settings.
Reliable Drive Highlights
  • Motorized Drive: A robust motor delivers dependable power for repeated open and close cycles.
  • Intelligent Control System: DSP-based closed-loop control manages torque, position, and speed for smooth, precise movement.
  • High-Frequency Duty: Designed for 1,000+ cycles per day without performance loss in demanding environments.
  • Built To Last: Durable drive and control components resist stress, vibration, and heavy daily use.
  • Adjustable Speed: Opening up to 2.0 m/s and closing up to 0.8 m/s, adjustable for safety and throughput.
  • LED Fault Display: Clear fault display helps operators quickly resolve issues and reduce downtime.
Why It Improves Operation
  • Dependable In Harsh Conditions: Reliable drive keeps production doorways running in demanding settings.
  • Consistent Cycles: Intelligent control maintains smooth, repeatable operation throughout the shift.
  • Less Downtime: Durable components and fault display reduce interruptions and maintenance costs.
  • Flexible For Heavy Use: Speed and duty settings can be tuned to match production workflows.
  • Safe And Reliable: Reverse wiring protection, emergency stop, and manual override support daily safety.
Typical Applications
  • Demanding manufacturing plants and production lines
  • Heavy-duty industrial workshops
  • High-traffic internal factory passages
  • Facilities with dust, heat, or vibration exposure
  • Any doorway needing reliable continuous operation
Product Specifications
Drive System Motorized drive with DSP-based intelligent control
Motor Power 0.75-1.5 KW (depending on size and speed)
Material PVC curtain / Galvanized steel (standard), stainless steel optional
Max Door Size Width 1000-6000 mm, Height 1500-6000 mm
Operating Speed Opening 0.8-2.0 m/s (adjustable); Closing 0.5-0.8 m/s (adjustable)
Curtain Thickness 0.8 / 1.2 / 1.5 / 2.0 mm
Sealing System Side brush seals with bottom airbag / EPDM seal
Temperature Range -10°C to 60°C
Wind Resistance Class 6 (reinforceable to Class 8)
Power Requirements 220V/13A single-phase, 50Hz-60Hz, IP54 control box
Frequently Asked Questions
Is it suitable for demanding environments?
Yes, the robust drive and control components are built for harsh industrial conditions.
Is it built for continuous use?
Yes, it supports 1,000+ cycles per day without performance loss.
Can it be customized?
Yes, dimensions, curtain material, drive options, and control settings are customizable.
Contact Us
Changzhou YOHO Industrial Door Co., Ltd. -- Email: yohao260105@gmail.com -- WhatsApp: +8618021983369 -- OEM & ODM welcome. Contact us today for factory-direct pricing and customized drive solutions.
