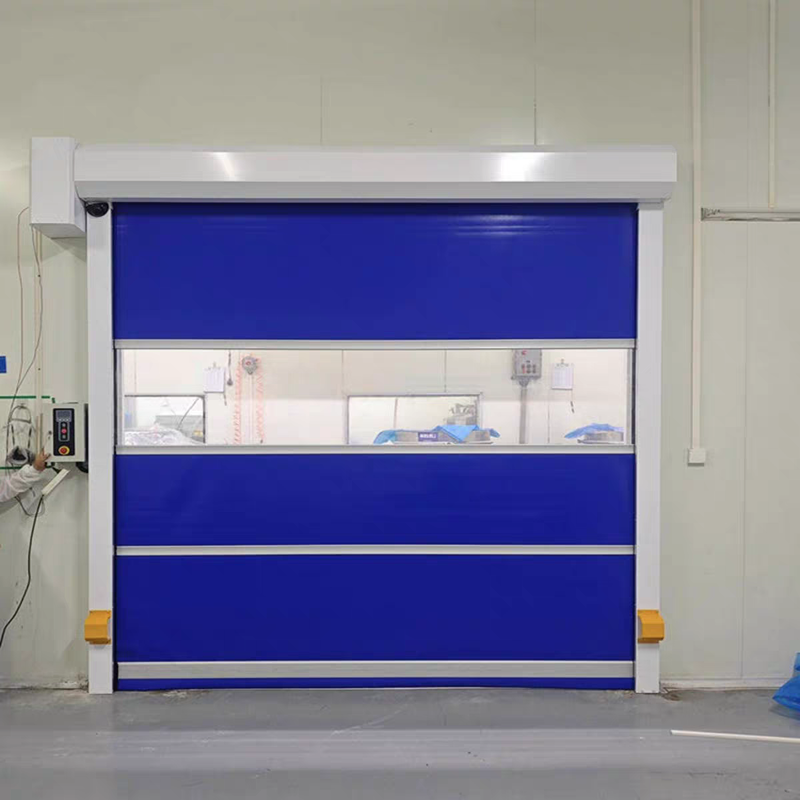

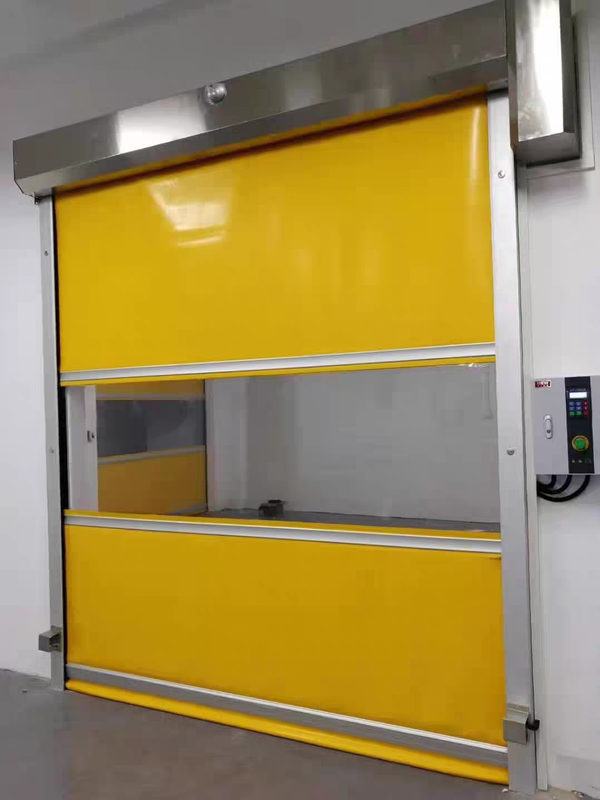

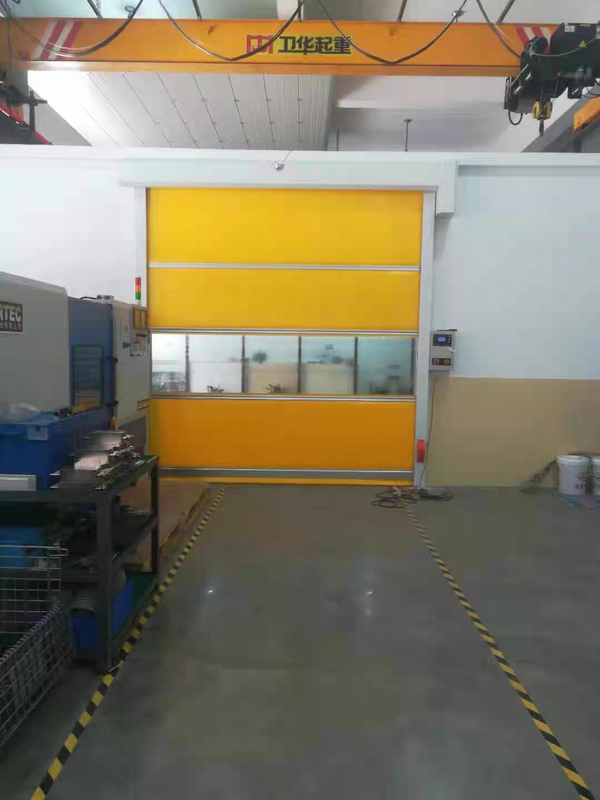

Aluminum Wind-Bar Reinforced PVC High Speed Door with Wind Resistance Class 6 and Adjustable Opening Speed 0.8-2.0 m/s

Aluminum Wind-Bar Reinforced PVC High Speed Door with Wind Resistance Class 6 and Adjustable Opening Speed 0.8-2.0 m/s

Aluminum Wind Bar Reinforced Door

Outdoor Wind-Resistant PVC Door

Coastal High Speed Door Stability

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

YOHO-PVC-HSD-WB

Chat Now
Request A Quote
Aluminum Wind-Bar Reinforced PVC High Speed Door with Wind Resistance Class 6 and Adjustable Opening Speed 0.8-2.0 m/s Aluminum Wind-Bar Reinforced PVC High Speed Door with Wind Resistance Class 6 and Adjustable Opening Speed 0.8-2.0 m/s Aluminum Wind-Bar Reinforced PVC High Speed Door with Wind Resistance Class 6 and Adjustable Opening Speed 0.8-2.0 m/s
Product Details
Curtain Reinforcement:
Horizontal Aluminum Wind Bars
Wind Resistance:
Class 6 (reinforceable To Class 8)
Opening Speed:
0.8-2.0 M/s (adjustable)
Closing Speed:
0.5-0.8 M/s (adjustable)
Max Door Size:
Width 1000-6000 Mm; Height 1500-6000 Mm
Curtain Material:
PVC, 0.8-2.0 Mm Thickness
Frame Material:
Galvanized Steel / Stainless Steel
Motor Power:
0.75-1.5 KW
Sealing System:
Side Brush Seals With Bottom Airbag / EPDM Seal
Operating Temperature:
-10 C To 60 C
Voltage:
220V/380V, 50Hz-60Hz
Highlight:

Aluminum Wind Bar Reinforced Door

,

Outdoor Wind-Resistant PVC Door

,

Coastal High Speed Door Stability

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
USD 900-2500 / Unit
Packaging Details
Plywood case with protective film and shock-proof packing
Delivery Time
10-15 working days
Payment Terms
T/T
Supply Ability
300 Units per Month
Related Products
Good price Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use online

Custom Color Configuration PVC High Speed Door with Custom Dimensions and Activation for Industrial Use

Chat Now
Good price Replaceable Curtain PVC High Speed Door with DSP Servo System for Easy Maintenance online

Replaceable Curtain PVC High Speed Door with DSP Servo System for Easy Maintenance

Chat Now
Good price Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System online

Quick Access Component PVC High Speed Door with Replaceable Curtain and DSP Servo System

Chat Now
Good price Motorized Servo Drive PVC High Speed Door for 1000+ Cycles Daily with Adjustable Speed 0.8-2.0 m/s online

Motorized Servo Drive PVC High Speed Door for 1000+ Cycles Daily with Adjustable Speed 0.8-2.0 m/s

Chat Now
Contact Us
86--18021983369
yohao260105@gmail.com
Chat Now
Product Description
Aluminum Wind-Bar Reinforced PVC Industrial High Speed Door For Outdoor Coastal Facilities

Coastal and open-air facilities expose high speed doors to constant wind loads. Without reinforcement, a PVC curtain can flap, billow, and lose stability, straining the drive system and shortening service life. This Industrial High Speed Door is designed around one core selling point: reinforced PVC curtain with aluminum wind bars. Horizontal aluminum wind bars reinforce the curtain and improve its stability during operation, so the door keeps running smoothly even in exposed, high-wind locations.

Reinforced Curtain Highlights
  • Horizontal Aluminum Wind Bars: Lightweight aluminum wind bars are fitted across the curtain to add rigidity and hold the panel flat.
  • Improved Running Stability: Reinforced curtains reduce flapping and billowing, so the door tracks smoothly open and closed.
  • Better Wind Resistance: The reinforced structure helps the door withstand wind loads in exposed outdoor locations.
  • Reduced Wear On Drive System: A stable curtain means less stress and vibration, extending motor and fabric life.
  • Genuine PVC Curtain: Durable PVC curtain (0.8-2.0 mm) combines flexibility with reinforced strength.
Why It Improves Operation
  • Stable In Windy Conditions: Reinforcement keeps the curtain controlled in open, gusty environments.
  • Smooth, Quiet Cycles: Less flapping means smoother, quieter, and more reliable daily operation.
  • Longer Service Life: Reduced strain on curtain and drive lowers replacement and repair costs.
  • Fast And Efficient: Opening up to 2.0 m/s keeps traffic moving while the reinforced curtain stays stable.
  • Reliable Sealing: Side brush seals and a bottom seal limit air exchange and dust ingress.
Typical Applications
  • Coastal and seaside logistics facilities
  • Open-air loading docks and yards
  • Outdoor warehouse and factory openings
  • Exposed passages in high-wind regions
  • Facilities needing stable, reinforced curtain operation
Product Specifications
Curtain Reinforcement Horizontal aluminum wind bars
Material PVC curtain / Galvanized steel (standard), stainless steel optional
Max Door Size Width 1000-6000 mm, Height 1500-6000 mm
Operating Speed Opening 0.8-2.0 m/s (adjustable); Closing 0.5-0.8 m/s (adjustable)
Curtain Thickness 0.8 / 1.2 / 1.5 / 2.0 mm
Motor Power 0.75-1.5 KW (depending on size and speed)
Wind Resistance Class 6 (reinforceable to Class 8)
Sealing System Side brush seals with bottom airbag / EPDM seal
Control System DSP-based servo system with LED fault display
Temperature Range -10°C to 60°C
Power Requirements 220V/13A single-phase, 50Hz-60Hz, IP54 control box
Frequently Asked Questions
  • What do the aluminum wind bars do? They reinforce the PVC curtain, adding rigidity and improving stability during operation.
  • Is it suitable for windy outdoor locations? Yes, the reinforced curtain improves wind resistance in exposed coastal and outdoor facilities.
  • Can it be customized? Yes, dimensions, curtain material, wind bar spacing, and activation methods are customizable.
Contact Us

Changzhou YOHO Industrial Door Co., Ltd.

Email: yohao260105@gmail.com

WhatsApp: +8618021983369

OEM & ODM welcome. Contact us today for factory-direct pricing and customized reinforced curtain solutions.
