Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High Speed Zipper
video
video

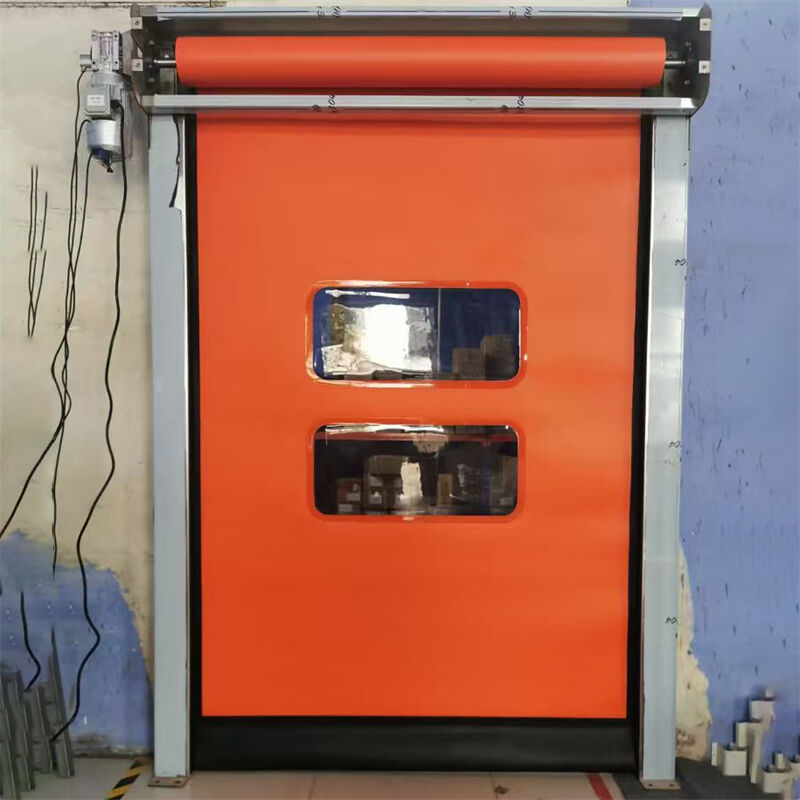

The High Speed Zipper Door is engineered to optimize internal logistics flow in modern industrial environments. With its flexible PVC curtain and zipper-guided structure, the door delivers rapid opening cycles while maintaining excellent sealing and safety performance.
Designed for high-frequency operations, this industrial high speed door reduces downtime, minimizes energy loss, and ensures smooth movement for forklifts, workers, and automated systems.
Fast opening speed up to 1.2 m/s significantly improves workflow efficiency in logistics environments.
The zipper structure enables automatic curtain reinsertion after impact, avoiding costly repairs.
The zipper guide rail combined with bottom sealing effectively blocks dust, airflow, and contaminants.
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–5000 mm Door height: 1500–5000 mm |
| Control System (Servo System) | The door uses a dedicated servo control system with a DSP chip at its core. The system sets the door opening height by combining incremental encoder signals from the motor shaft and mechanical origin switch signals. Key features include: 1.LED Display: Shows fault codes for easy diagnostics. 2.Direction Protection: If the motor wiring is connected incorrectly, the controller immediately reports an error, preventing door movement. 3.Triple Closed-Loop Control: Torque loop, position loop, and speed loop for precise operation. 4.Braking Function: The motor can stop at the desired position without using an electromagnetic brake, ensuring accurate stopping at the limit positions. |
| Drive Motor | The motor drive system uses a servo motor system, including encoder, braking system, reducer, and emergency manual opening mechanism. 1.Constant Torque Output: Ensures optimal performance of safety devices (e.g., infrared sensors) with rapid rebound. 2.High Overload Capacity: Can operate over 1,000 cycles per day in high-frequency applications. |
| Operating Speed | Opening speed: 1.2-2.0 m/s (adjustable) Closing speed: 0.5-0.8 m/s (adjustable) |

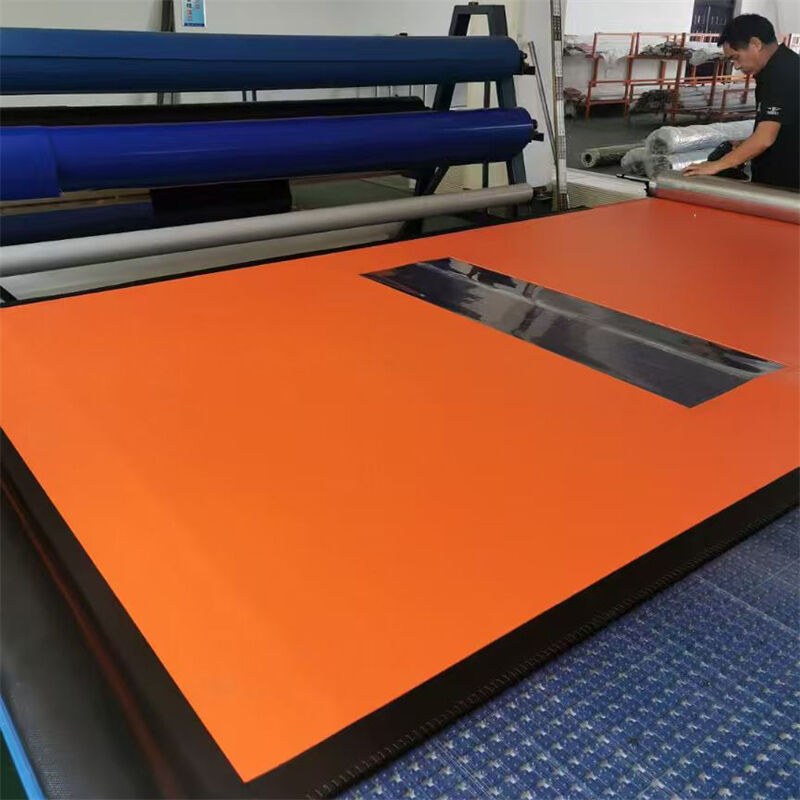

| Door Curtain Material | Door curtain thickness: 1.2–2.0 mm Available colors: Blue, Orange, Gray |
| Frame Material | Cabin tracks made of galvanized steel, upgradable to stainless steel. |
| Sealing Performance | The bottom of the door curtain is equipped with a soft airbag sealing strip, tightly adapting to uneven floors. The track uses a zipper-style structure without brushes, providing superior sealing and complete airtightness. |
| Wind Resistance | Up to Grade 5 wind resistance. |
| Safety Features | 1.Infrared Safety Protection: Photoelectric sensors installed on both sides of the door frame. If an object is detected under the door, the door remains open. During closing, if an object passes underneath, the door reopens to the fully open position and descends again after a delay once the area is clear. 2.Bottom Safety Edge: If an object is in the infrared blind zone during closing, the door rebounds upon contact, then reopens, effectively protecting people and objects. (Standard configuration) |
| Manual Operation | In case of power failure or system malfunction, the door can be opened manually using a standard wrench. |
| Power Requirements | 220 V / 13 A, single-phase, 50/60 Hz. IP54 control box compliant with national electrical safety standards. |
| Insulation Protection | IP54 rating ensures dustproof and waterproof operation even in harsh environments. |
| Operating Methods | Standard one-touch push button with emergency stop. Optional opening methods: radar sensor, loop detector, pull-cord switch, remote control. |
| Reserved Interfaces | The control system reserves ports for: infrared safety switches, loop detectors, radar sensors, pull-cord switches, remote control, dual-door interlock, and other compatible devices. |
The High Speed Zipper Door adopts a DSP-controlled servo system for accurate positioning and stable operation.
Triple closed-loop system ensures smooth and reliable door movement.
LED interface provides real-time diagnostics for maintenance.
Prevents the door from closing when obstacles are detected.
Automatically rebounds upon contact to ensure safety.
Emergency stop and manual release ensure safe operation during power outages.
Perfect for environments requiring continuous movement of forklifts and goods.
Ensures seamless transition between indoor and outdoor areas.
Minimizes air exchange and maintains stable indoor conditions.
Years of expertise in exporting industrial high speed doors.
Tailored design based on project-specific requirements.
Yes, it is designed for high-frequency operations and durable industrial environments.
Yes, it supports radar, loop detectors, and AGV integration.
It automatically resets due to the zipper system.
Minimal maintenance is required, mainly routine inspection.
|
|
|
