Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High Speed Zipper
video
video

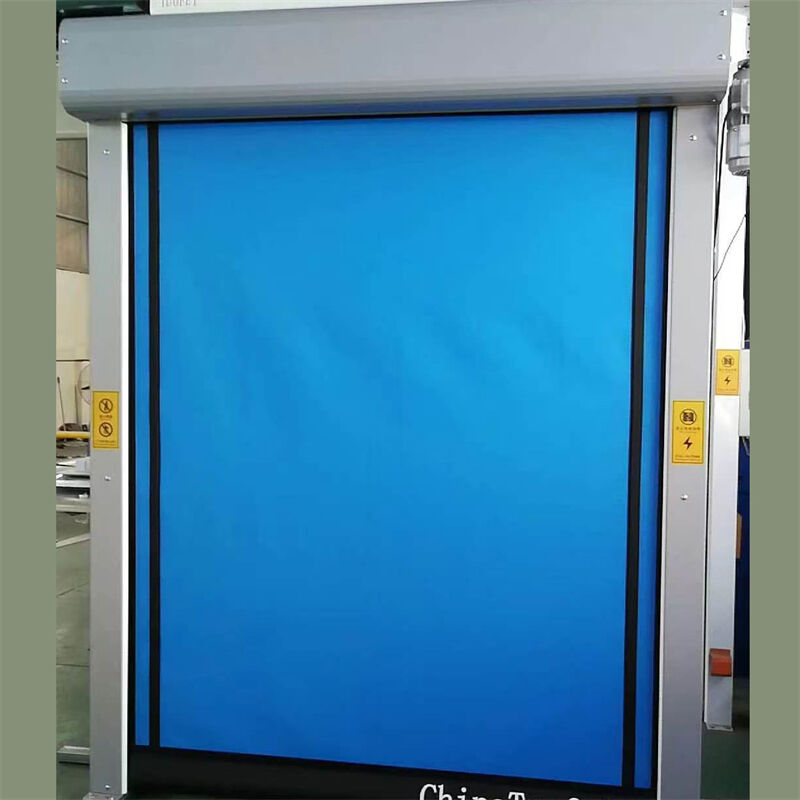

The High Speed Zipper Door is a flexible, self-repairing industrial door designed for high-frequency operation in logistics, warehouse, and production environments. Featuring a zipper-type sealing structure and durable PVC curtain, it ensures excellent airtight performance while allowing fast and smooth operation.
Equipped with a servo motor control system, this industrial high speed door provides precise positioning, high efficiency, and long service life. It is an ideal solution for loading docks, buffer zones, and internal logistics areas where speed, sealing, and safety are critical.
The zipper-type track system allows the curtain to automatically reinsert into the guide after accidental impact, reducing downtime and maintenance costs.
Opening speed up to 2.0 m/s, improving logistics efficiency and reducing waiting time for forklifts and workers.
Brushless zipper sealing system with bottom airbag ensures superior airtightness and dust isolation.

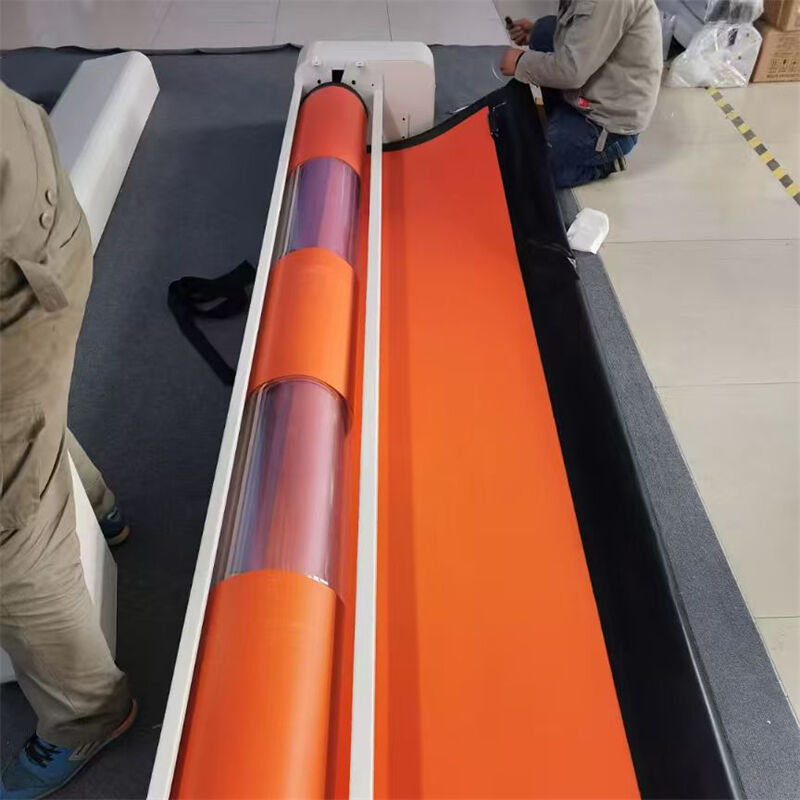

1.2–2.0 mm thick curtain, resistant to wear, suitable for high-cycle industrial use.
Advanced servo control with DSP chip ensures precise door positioning and stable operation.
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–5000 mm Door height: 1500–5000 mm |
| Control System (Servo System) | The door uses a dedicated servo control system with a DSP chip at its core. The system sets the door opening height by combining incremental encoder signals from the motor shaft and mechanical origin switch signals. Key features include: 1.LED Display: Shows fault codes for easy diagnostics. 2.Direction Protection: If the motor wiring is connected incorrectly, the controller immediately reports an error, preventing door movement. 3.Triple Closed-Loop Control: Torque loop, position loop, and speed loop for precise operation. 4.Braking Function: The motor can stop at the desired position without using an electromagnetic brake, ensuring accurate stopping at the limit positions. |
| Drive Motor | The motor drive system uses a servo motor system, including encoder, braking system, reducer, and emergency manual opening mechanism. 1.Constant Torque Output: Ensures optimal performance of safety devices (e.g., infrared sensors) with rapid rebound. 2.High Overload Capacity: Can operate over 1,000 cycles per day in high-frequency applications. |
| Operating Speed | Opening speed: 1.2-2.0 m/s (adjustable) Closing speed: 0.5-0.8 m/s (adjustable) |
| Door Curtain Material | Door curtain thickness: 1.2–2.0 mm Available colors: Blue, Orange, Gray |
| Frame Material | Cabin tracks made of galvanized steel, upgradable to stainless steel. |
| Sealing Performance | The bottom of the door curtain is equipped with a soft airbag sealing strip, tightly adapting to uneven floors. The track uses a zipper-style structure without brushes, providing superior sealing and complete airtightness. |
| Wind Resistance | Up to Grade 5 wind resistance. |
| Safety Features | 1.Infrared Safety Protection: Photoelectric sensors installed on both sides of the door frame. If an object is detected under the door, the door remains open. During closing, if an object passes underneath, the door reopens to the fully open position and descends again after a delay once the area is clear. 2.Bottom Safety Edge: If an object is in the infrared blind zone during closing, the door rebounds upon contact, then reopens, effectively protecting people and objects. (Standard configuration) |
| Manual Operation | In case of power failure or system malfunction, the door can be opened manually using a standard wrench. |
| Power Requirements | 220 V / 13 A, single-phase, 50/60 Hz. IP54 control box compliant with national electrical safety standards. |
| Insulation Protection | IP54 rating ensures dustproof and waterproof operation even in harsh environments. |
| Operating Methods | Standard one-touch push button with emergency stop. Optional opening methods: radar sensor, loop detector, pull-cord switch, remote control. |
| Reserved Interfaces | The control system reserves ports for: infrared safety switches, loop detectors, radar sensors, pull-cord switches, remote control, dual-door interlock, and other compatible devices. |
Stops and rebounds instantly upon contact to protect people and goods.
Detects objects in the opening area and stops or delays closing automatically.
React quickly to forklifts, pallets, and moving personnel.
Provides extra safety where sensors may not fully cover.
Ensures safe performance in high-frequency industrial use.
Fast opening and closing reduce waiting time for forklifts and goods handling.
Excellent sealing minimizes air exchange between indoor and outdoor areas.
Self-repairing zipper system reduces damage caused by accidental impact.
The High Speed Zipper Door is widely used in environments requiring fast operation, dust control, and efficient internal logistics flow.
A High Speed Zipper Door is a flexible industrial door with a self-repairing zipper structure designed for high-speed and high-frequency operation.
Yes, it can operate over 1,000 cycles per day, making it ideal for logistics and industrial environments.
Yes, size, color, speed, and control systems can be customized based on project requirements.
The zipper structure allows automatic reset, reducing downtime and maintenance.
|
|
|
