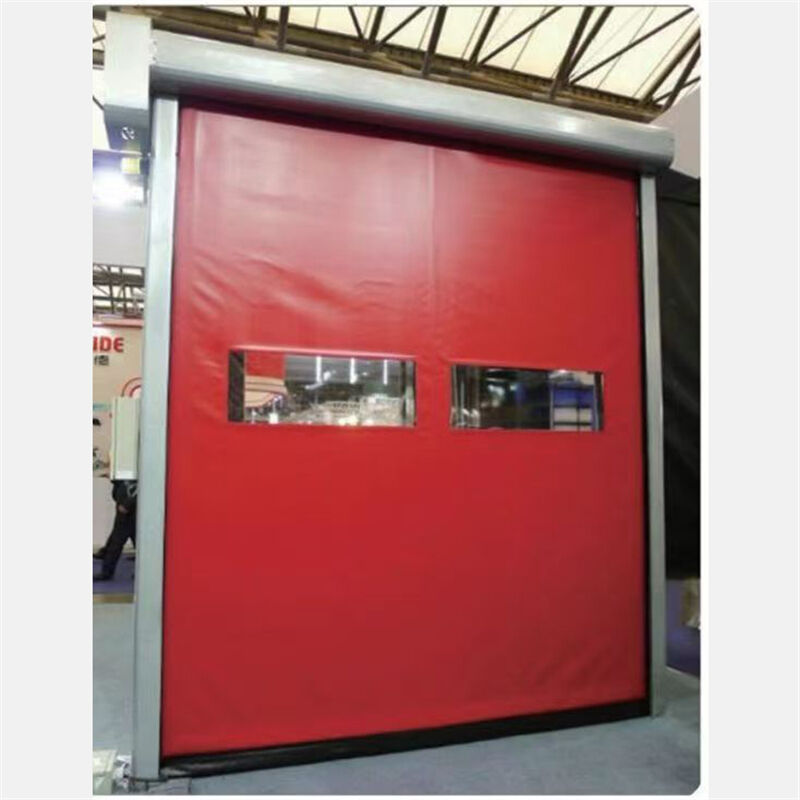

Wind Resistance Grade 5 Industrial High Speed Zipper Door Self Repairing Curtain System For Modern Facilities

MOQ: IUNIT
Price: negotiation
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
High Speed Zipper
Name:
High Speed Zipper
Color:
Yellow/Blue/Red/Grey/White/Transparent
Size:
3x3 M Or Customized (max Size:6x8m)
Voitage:
380V Or 220V
Door Curtain Thickness:
1.2–2.0 Mm
Maximum Available Size:
Door Width: 1000–5000 Mm Door Height: 1500–5000 Mm
Power:
0.75-1.5-2.2KW
Opening Speed:
0.6–1.2 M/s (adjustable)
Closing Speed:
0.6 M/s (adjustable)
Wind Resistance:
Up To Grade 5 Wind Resistance
Thermal Insulation Performance:
K<0.6W/（㎡°•K)
Application:
Modern Facilities
Highlight:

Modern Facilities High Speed Zipper Door

,

Industrial High Speed Zipper Door

,

High Speed Zipper Door Self Repairing

Product Description

Wind Resistance Grade 5 Industrial High Speed Zipper Door With Self-Repairing Curtain System For Modern Facilities

Reliable High-Speed Door for Modern Facilities

Built for demanding industrial environments, the High Speed Zipper Door combines flexible curtain technology with advanced automation control. It is designed to provide fast, safe, and efficient access between different operational zones.
With its self-repairing mechanism and high-speed performance, this industrial high speed door is ideal for facilities requiring continuous operation and reliable sealing.

Structural Design & Working Performance

  • Zipper Track System

The door curtain runs within a zipper-style guide, ensuring stable operation without deviation.

  • Impact Resistance Mechanism

When impacted, the curtain detaches safely and automatically re-aligns.

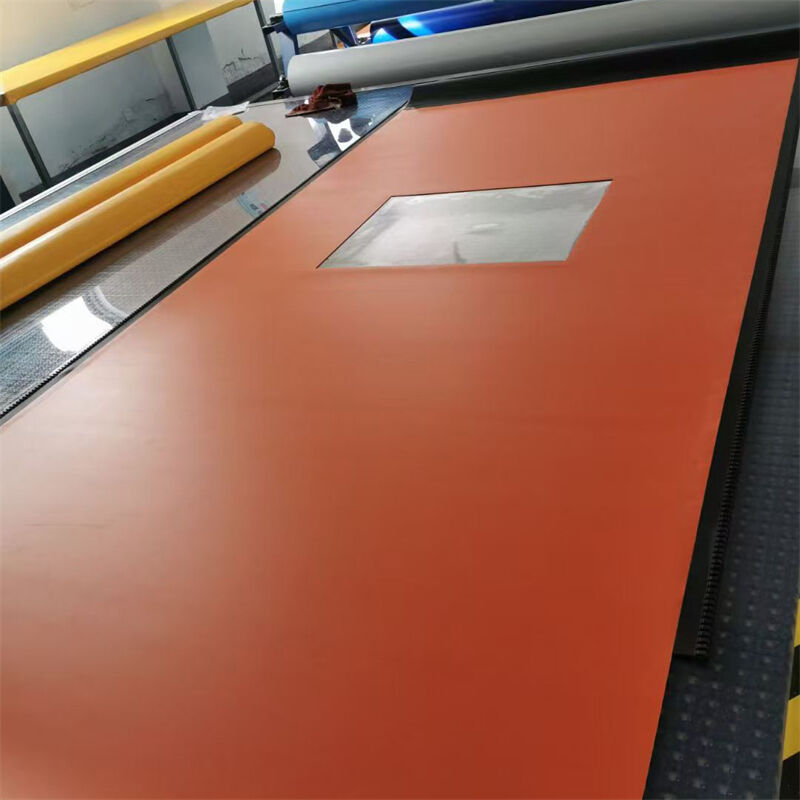

  • Flexible Curtain Structure

PVC material allows smooth operation while reducing wear and tear.

Performance Benefits

  • High Operating Speed

Opening speed up to 1.2 m/s improves operational efficiency.

  • Low Maintenance Requirement

Self-repairing design reduces downtime and maintenance costs.

  • Excellent Sealing Capability

Provides effective isolation against dust and airflow.

Product Parameters

Parameter Description
Maximum Available Size Door width: 1000–5000 mm
Door height: 1500–5000 mm
Control System (Servo System) The door uses a dedicated servo control system with a DSP chip at its core. The system sets the door opening height by combining incremental encoder signals from the motor shaft and mechanical origin switch signals. Key features include:
1.LED Display: Shows fault codes for easy diagnostics.
2.Direction Protection: If the motor wiring is connected incorrectly, the controller immediately reports an error, preventing door movement.
3.Triple Closed-Loop Control: Torque loop, position loop, and speed loop for precise operation.
4.Braking Function: The motor can stop at the desired position without using an electromagnetic brake, ensuring accurate stopping at the limit positions.
Drive Motor The motor drive system uses a servo motor system, including encoder, braking system, reducer, and emergency manual opening mechanism.
1.Constant Torque Output: Ensures optimal performance of safety devices (e.g., infrared sensors) with rapid rebound.
2.High Overload Capacity: Can operate over 1,000 cycles per day in high-frequency applications.
Operating Speed Opening speed: 0.6–1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable)
Door Curtain Material Door curtain thickness: 1.2–2.0 mm
Available colors: Blue, Orange, Gray
Frame Material Cabin tracks made of galvanized steel, upgradable to stainless steel.
Sealing Performance The bottom of the door curtain is equipped with a soft airbag sealing strip, tightly adapting to uneven floors. The track uses a zipper-style structure without brushes, providing superior sealing and complete airtightness.
Wind Resistance Up to Grade 5 wind resistance.
Safety Features 1.Infrared Safety Protection: Photoelectric sensors installed on both sides of the door frame. If an object is detected under the door, the door remains open. During closing, if an object passes underneath, the door reopens to the fully open position and descends again after a delay once the area is clear.
2.Bottom Safety Edge: If an object is in the infrared blind zone during closing, the door rebounds upon contact, then reopens, effectively protecting people and objects. (Standard configuration)
Manual Operation In case of power failure or system malfunction, the door can be opened manually using a standard wrench.
Power Requirements 220 V / 13 A, single-phase, 50/60 Hz. IP54 control box compliant with national electrical safety standards.
Insulation Protection IP54 rating ensures dustproof and waterproof operation even in harsh environments.
Operating Methods Standard one-touch push button with emergency stop. Optional opening methods: radar sensor, loop detector, pull-cord switch, remote control.
Reserved Interfaces The control system reserves ports for: infrared safety switches, loop detectors, radar sensors, pull-cord switches, remote control, dual-door interlock, and other compatible devices.

Intelligent Control System

DSP Servo Control Technology

Ensures precise door movement and positioning.

  • Automated Operation Compatibility

Supports integration with industrial automation systems.

  • Smart Error Detection

Real-time monitoring improves system reliability.

Safety Features

  • Infrared Safety Sensors

Stops or reverses door movement when obstacles are detected.

  • Bottom Edge Protection

Prevents accidents during closing.

Safe Manual Operation

Allows manual opening in case of power failure.

Application Areas

  • Industrial Warehouses

  • Logistics Transfer Zones

  • Manufacturing Facilities

  • Internal Clean Transport Areas

High-Frequency Access Zones

Suitable for areas with constant movement of goods and equipment.

Customization & Installation Options

  • Flexible Design Options

Door size, color, and control systems can be customized.

  • Multiple Activation Methods

Radar, remote control, pull cord, and loop detector available.

Site Adaptability

Installation can be adjusted based on available space and layout.

Why Choose This High Speed Zipper Door

  • Durable and Reliable Performance

Designed for long-term industrial use.

  • Energy Saving Operation

Reduces unnecessary air exchange.

  • Proven Industrial Solution

Widely used in global industrial applications.

FAQ

What industries use High Speed Zipper Doors?

Mainly logistics, manufacturing, and warehouse sectors.

Is it suitable for continuous operation?

Yes, it supports high-frequency daily use.

Can the door size be customized?

Yes, fully customizable based on requirements.

Does it require frequent maintenance?

No, the self-repairing system minimizes maintenance needs.


Wind Resistance Grade 5 Industrial High Speed Zipper Door Self Repairing Curtain System For Modern Facilities 0

Wind Resistance Grade 5 Industrial High Speed Zipper Door Self Repairing Curtain System For Modern Facilities 1
