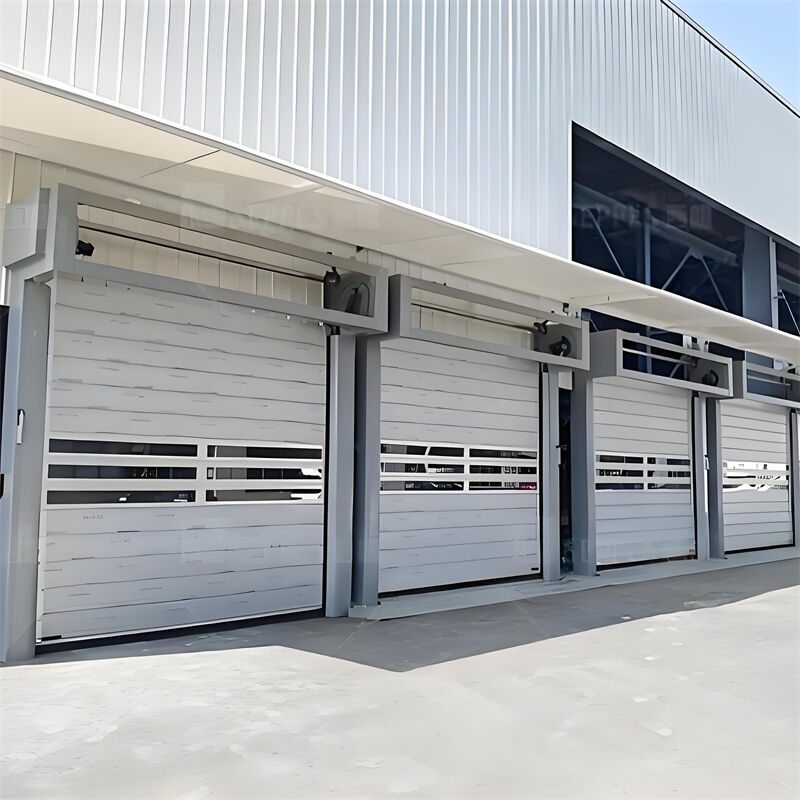

0.75-1.5KW Power Industrial High Speed Spiral Door With Servo System For Parking Commercial

0.75-1.5KW Power Industrial Industrial High Speed Spiral Door With Servo System For Parking And Commercial Applications

Product Introduction

In modern industrial environments, door systems must do more than simply open and close—they need to support continuous workflow, ensure safety, and withstand intensive use. The High Speed Spiral Door is engineered to meet these demands with a combination of speed, durability, and intelligent control.

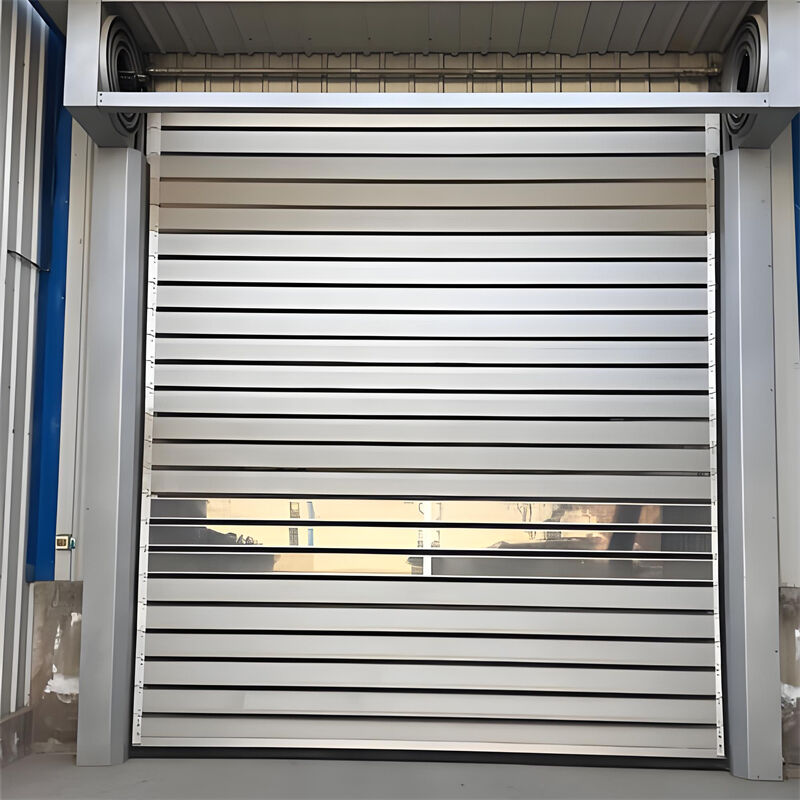

This High Speed Roll Up Shutter Door adopts a non-contact spiral lifting structure, allowing the door panels to move independently without friction. Compared with traditional roll up shutter door systems, it significantly reduces wear while maintaining high-speed performance. As an Aluminum Roll Up Shutter Door, it delivers excellent strength, wind resistance, and long-term operational reliability.

Key Features of High Speed Spiral Door

High Speed Roll Up Shutter Door Performance

• Fast opening and closing speed

  With speeds up to 1.5 m/s, the door minimizes waiting time for forklifts and vehicles, improving operational efficiency.

• Adjustable speed settings

  Allows customization based on traffic flow and safety requirements.

Flexible Door Structure Options

• Multiple structural configurations

  Includes elliptical helical structure, L-shape structure, vertical and horizontal layouts to fit different buildings.

• Adaptable installation

  Suitable for both new construction and retrofit projects.

Aluminum Roll Up Shutter Door Materials

• High-strength aluminum panels

  Provide excellent durability and resistance to impact and deformation.

• Composite material options

  Improve insulation and noise reduction performance.

Intelligent Servo Control System

• High-precision servo motor

  Ensures accurate positioning and stable operation.

• Smooth start and stop

  Reduces mechanical stress and prolongs equipment lifespan.

Wind Resistance and Structural Stability

• Wind resistance up to level 8

  Suitable for exterior industrial doors exposed to strong wind conditions.

• Reinforced structure

  Maintains stability even in large-size installations.

Product Specifications

Advantages of Spiral Roll Up Shutter Door

High Durability

• Non-contact spiral system

  Eliminates friction between panels, reducing wear and extending service life.

Enhanced Safety

• Built-in safety buffer

  Prevents damage in case of accidental contact.

• Optional sensors and protection systems

  Improve operational safety for personnel and vehicles.

Energy Efficiency

• Fast opening and closing

  Minimizes air exchange and temperature loss.

Suitable for High-Frequency Operation

• Designed for intensive usage

  Maintains stable performance even with hundreds of cycles per day.

Applications

Manufacturing Plants

Supports continuous production flow and internal logistics.

Parking Facilities

Enables fast vehicle entry and exit while ensuring safety.

Logistics & Distribution Centers

Improves loading efficiency and reduces operational delays.

Commercial Buildings

Provides modern, secure, and high-speed access solutions.

Installation Options & Space Requirements

All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 900mm
b1/ b2 is the left/right lateral distance of at least 350 mm (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room.
When measuring h, b1, b2 and L, take the smallest value as the final size.

The Spiral Lift High Speed Door can be adapted to various metal plant layouts:

• Large exterior openings
• Internal workshop partitions
• High headroom or limited side space

Multiple lifting configurations are available to meet site conditions.

FAQ

What is a High Speed Spiral Door?

A high-speed industrial door using a spiral lifting system for smooth and durable operation.

Is it suitable for outdoor installation?

Yes, it offers strong wind resistance and structural stability.

How often can it operate daily?

Designed for up to 500–800 cycles per day in industrial environments.
