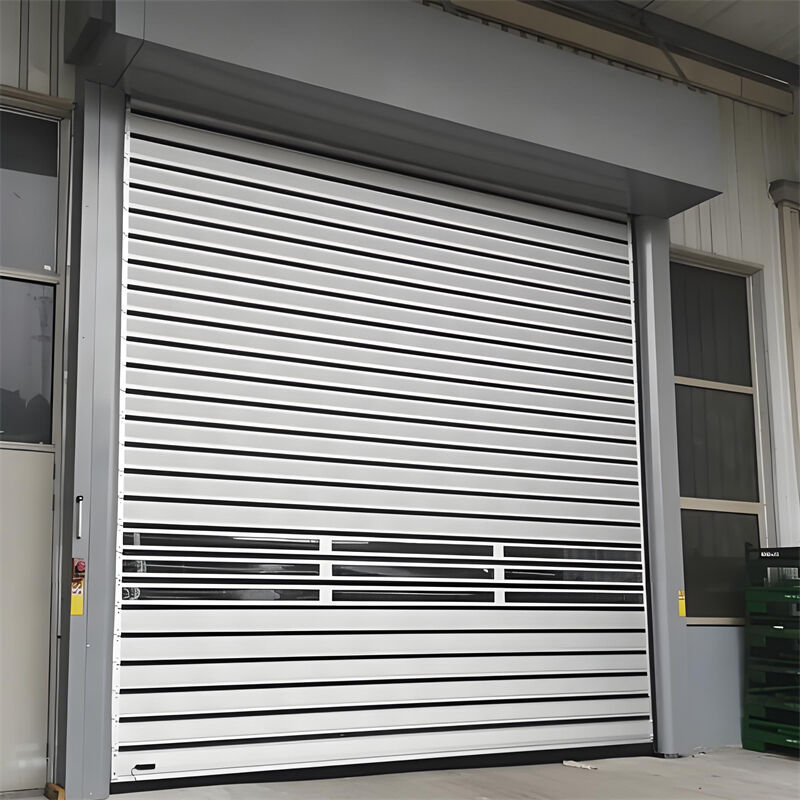

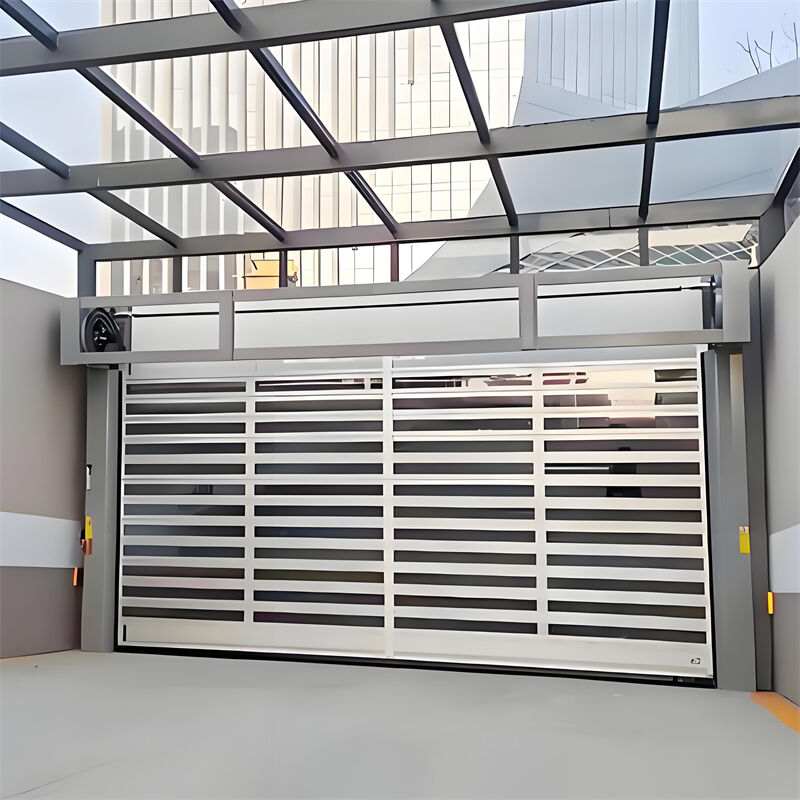

High Speed Roll Up Shutter Door High Durability For 500–800 Cycles Per Day For Industrial Access

High Speed Roll Up Shutter Door High Durability Designed For 500–800 Cycles Per Day For Industrial Access

Product Introduction

Fast-paced logistics environments require door systems that can keep up with constant movement. The High Speed Spiral Door is designed to deliver rapid opening, high durability, and smooth operation for industrial and commercial facilities.

This High Speed Roll Up Shutter Door features a spiral track structure that separates door panels during operation, reducing friction and extending service life. As a modern Aluminum Roll Up Shutter Door, it combines speed, strength, and reliability for demanding applications.

Advantages of Spiral Roll Up Shutter Door

Faster Logistics Flow

• Rapid opening speed
  Reduces waiting time for forklifts and vehicles.

Reduced Maintenance

• Non-contact spiral design
  Minimizes wear between door panels.

Improved Energy Efficiency

• Quick closing cycle
  Limits air exchange between zones.

Key Features

Spiral Roll Up Shutter Door Structure

• Helical track system
  Allows panels to move independently.
• Smooth operation
  Reduces noise and vibration.

Aluminum Roll Up Shutter Door Panels

• High-strength aluminum
  Provides durability and impact resistance.
• Lightweight structure
  Ensures efficient motor operation.

Servo Control System

• Precision motor control
  Enables stable and accurate door movement.
• Soft start and stop
  Protects mechanical components.

Safety Protection System

• Bottom safety buffer
  Prevents collision accidents.
• Optional sensors
  Enhances operational safety.

Product Specifications

Technical Specifications

Door Dimensions

• Width: 1000–7000 mm
• Height: 1500–5000 mm

Performance

• Opening speed: 0.6–1.5 m/s
• Closing speed: 0.6 m/s
• Daily cycles: up to 800 times

Power System

• Motor: 0.75–1.5 kW
• Servo control system

Applications

Logistics Warehouses

Ensures efficient goods movement in high-traffic areas.

Distribution Centers

Improves loading and unloading efficiency.

Industrial Factories

Separates production zones while maintaining workflow.

Commercial Entrances

Provides secure and fast access control.

Installation Options & Space Requirements

All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 900mm
b1/ b2 is the left/right lateral distance of at least 350 mm (distance from the corresponding edge of the door opening to the obstacle)
L is the depth of the room.
When measuring h, b1, b2 and L, take the smallest value as the final size.

The Spiral Lift High Speed Door can be adapted to various metal plant layouts:

• Large exterior openings
• Internal workshop partitions
• High headroom or limited side space

Multiple lifting configurations are available to meet site conditions.

FAQ

What is a spiral roll up shutter door?

A high-speed door with a spiral lifting system that reduces wear.

Is aluminum door durable?

Yes, aluminum panels provide strong and long-lasting performance.

Can it be used frequently?

Yes, designed for 500–800 cycles per day.

Get a Quote for Spiral High Speed Door

Looking for a reliable Spiral High Speed Door Supplier for your metal processing plant?
Contact our Turbo High Speed Door Factory to receive technical advice, customization support, and competitive pricing.
