Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High-Speed PVC Industrial Door

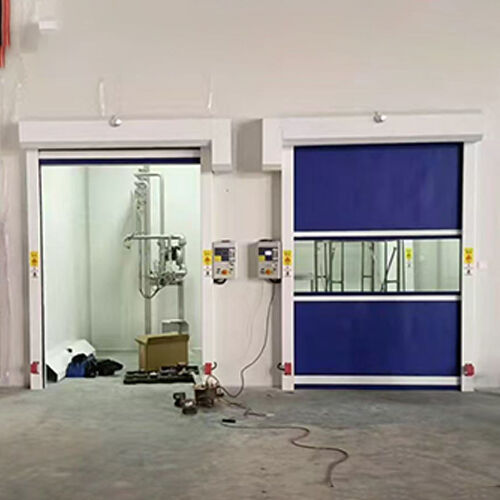

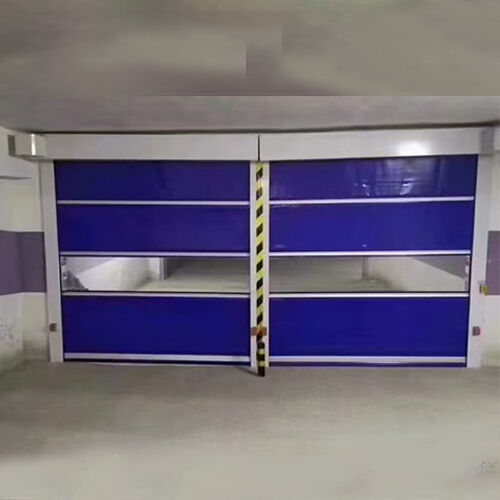

Clean production environments require door systems that support fast access while maintaining strict environmental control. The Industrial High Speed Door is specifically designed for clean workshops where controlling airflow, dust, and contamination is essential for product quality.
Unlike conventional industrial doors, this industrial fast door operates at high speed and features excellent sealing performance. Rapid opening and closing cycles help minimize air exchange between zones, supporting stable production conditions in clean manufacturing environments. With a durable curtain structure and intelligent control system, the door is ideal for facilities requiring both efficiency and cleanliness.
The Industrial High Speed Door uses smooth PVC materials that are easy to clean and resistant to contamination.
Non-porous curtain surface
Dust-resistant material
Easy maintenance design
Fast door movement is essential for controlling environmental conditions.
Opening speed up to 1.2 m/s
Rapid closing cycle
Smooth and stable operation
The sealing system prevents dust and airflow between different areas.
Side guide sealing brushes
Flexible bottom sealing edge
Tight curtain alignment
Modern clean workshops require automated solutions.
Radar motion sensors
Push-button operation
PLC control system integration
 |
|
Industrial High Speed Doors help maintain clean production areas by limiting airflow disturbance.
Fast door cycles reduce waiting time for workers and material transport.
Smooth curtain surfaces simplify cleaning and sanitation procedures.
Industrial fast doors enable efficient movement between clean zones and production areas.
Used between production and packaging areas.
Maintains controlled conditions for precision components.
Helps maintain hygienic production environments.
Supports environmental control in specialized production zones.
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
They help control air movement and maintain cleaner working environments.
Yes. Smooth PVC curtain surfaces are easy to clean and maintain.
Industrial High Speed Doors are designed for high-frequency operation.
|
|
|
Contact Changzhou YOHO Industrial Door Co., Ltd. for customized solutions, factory-direct pricing, and professional technical support.
