Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:

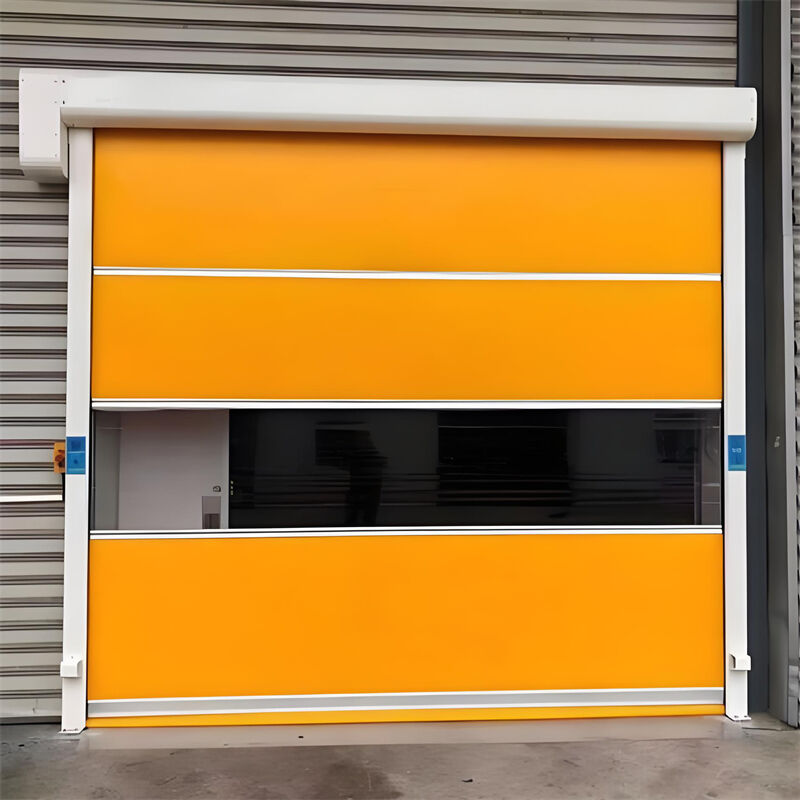

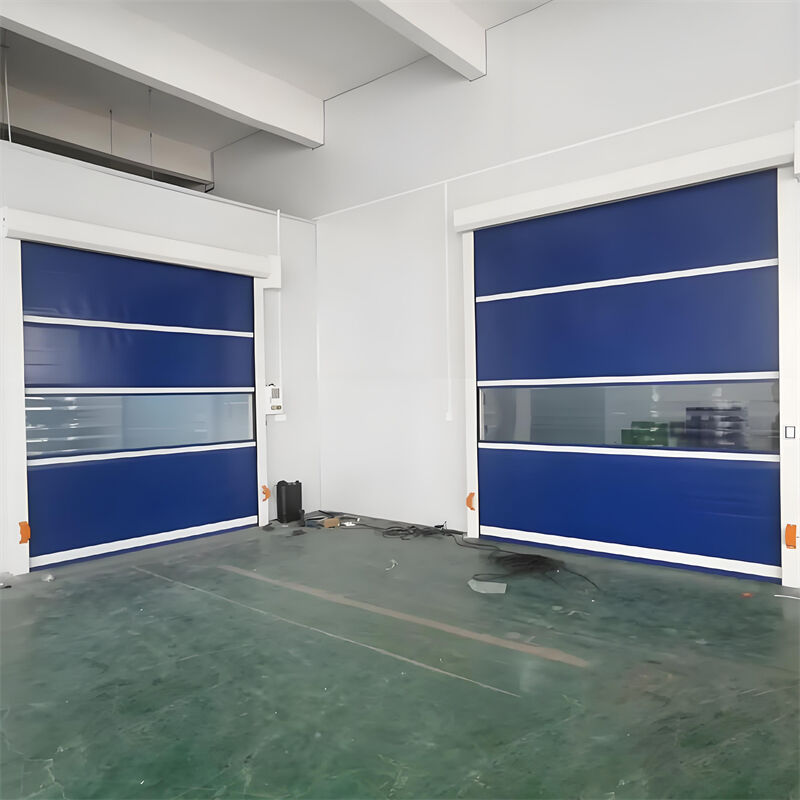

High-Speed PVC Industrial Door
Logistics centers depend on fast and continuous movement of goods to meet delivery schedules and customer expectations. However, many facilities face challenges such as forklift congestion, delays at internal passages, rising energy costs, and increasing pressure to improve operational efficiency. The PVC High Speed Door for Logistics Centers is designed to address these issues by providing rapid access between logistics zones while maintaining reliable performance throughout the day. With fast opening speeds, durable PVC construction, and intelligent control systems, this industrial fast door helps streamline material flow, reduce waiting time, and support efficient logistics operations in high-traffic environments.
Frequent forklift and pallet truck movement can create delays when access points cannot keep up with operational demand.
Every delay between storage, sorting, and dispatch areas can impact delivery performance and warehouse productivity.
Doors that remain open for extended periods increase heating and cooling costs.
Modern logistics facilities require doors that can integrate with automated equipment and warehouse systems.
|
|
|
Opening speed up to 1.5–2.0 m/s helps maintain smooth logistics flow and reduces waiting time.
Designed for intensive daily use and hundreds of operating cycles.
Flexible and wear-resistant material suitable for demanding logistics environments.
Compatible with radar sensors, remote controls, push buttons, pull cords, and PLC systems.
Photoelectric sensors and soft bottom edge protection help ensure safe operation.
Accelerates movement between receiving, storage, sorting, and shipping areas.
Helps forklifts and logistics vehicles maintain continuous operation.
Fast closing speeds reduce conditioned air loss and improve energy efficiency.
Integrates with AGVs, conveyor systems, and warehouse automation platforms.
Stable performance helps reduce downtime and maintenance interruptions.
| Material | PVC curtain / Galvanized steel / Stainless steel |
|---|---|
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for optimal sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control |
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Changzhou YOHO Industrial Door Co., Ltd. is a professional manufacturer specializing in Industrial High Speed Doors, Loading Dock Equipment, Sectional Overhead Doors, and Warehouse Access Solutions.
Our products are designed to meet the requirements of logistics centers, warehouses, manufacturing facilities, and industrial projects worldwide.
|
|
|
Because it improves traffic flow, reduces delays, and supports high-frequency logistics operations.
Yes. It is designed for intensive industrial use and frequent daily opening cycles.
Yes. Fast opening and closing reduce air exchange and help maintain stable indoor conditions.
Yes. The door supports PLC controls, radar sensors, AGVs, and conveyor systems.
Looking for a reliable PVC High Speed Door for your logistics center project?
Contact Changzhou YOHO Industrial Door Co., Ltd. for factory-direct pricing, customized solutions, technical support, OEM & ODM services, and fast worldwide delivery. Our team is ready to help improve logistics efficiency and optimize your facility's operational performance.
