Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High-Speed PVC Industrial Door

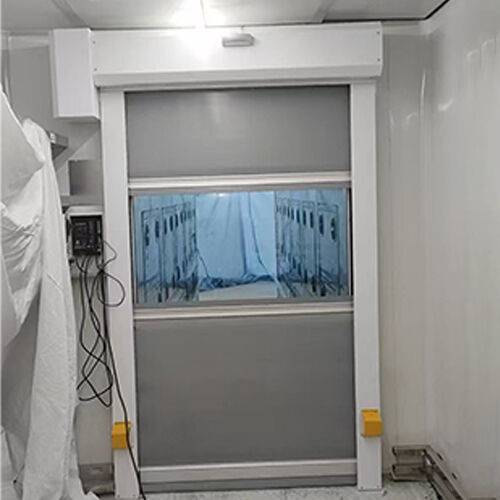

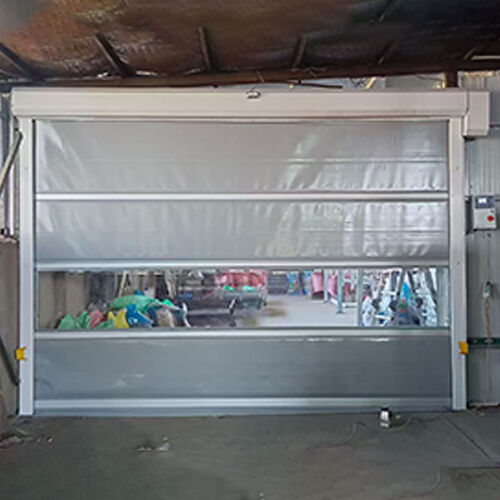

Modern logistics centers operate under constant pressure to move goods faster while controlling labor costs and maintaining efficient workflows. However, many facilities experience delays caused by slow access doors, forklift congestion, dust transfer between zones, and energy loss from doors that remain open too long. These problems become even more noticeable during peak shipping periods when hundreds of pallets and vehicles move through the facility every day. The PVC High-Speed Door for Logistics Centers is designed to keep material flow moving efficiently. By combining rapid opening speeds, durable PVC construction, and intelligent control systems, it helps logistics operators reduce waiting times, improve traffic flow, and support uninterrupted warehouse operations.
Forklifts and pallet trucks often queue at busy access points, reducing productivity.
Delays between storage, sorting, and shipping areas can affect order fulfillment speed.
Frequent door openings increase air exchange and HVAC expenses.
Logistics centers require doors capable of operating hundreds of cycles every day.
|
|
|
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Changzhou YOHO Industrial Door Co., Ltd. specializes in Industrial High Speed Doors, Loading Dock Equipment, Sectional Overhead Doors, and Warehouse Access Solutions.
We help distributors, contractors, and logistics operators implement reliable door solutions that improve efficiency and reduce operating costs.
|
|
|
High-speed doors improve forklift traffic flow, reduce waiting time, and help maintain efficient warehouse operations.
Yes. PVC high-speed doors are designed for high-frequency operation and can support hundreds of cycles per day.
Most industrial high-speed doors open between 1.0 m/s and 2.0 m/s, helping reduce traffic delays.
