Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:

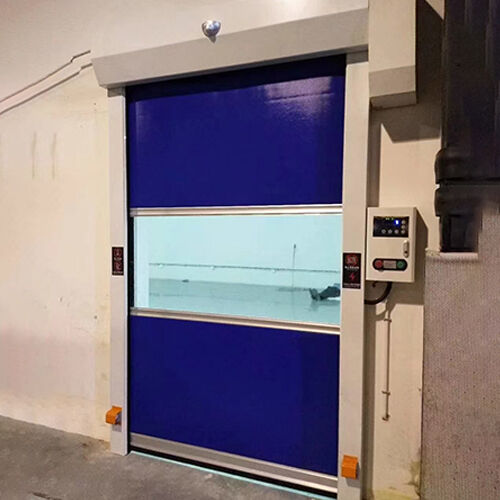

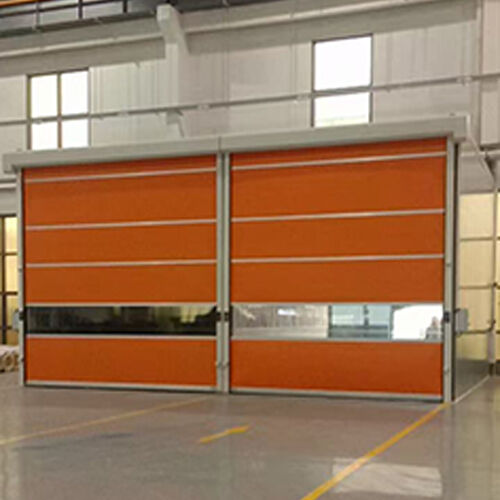

High-Speed PVC Industrial Door
Textile factories need clean production environments, stable temperature and humidity, and uninterrupted material movement. Dust, fiber particles, slow access points, and energy loss can affect fabric quality and production efficiency. This Industrial High Speed Door is designed to help textile manufacturers maintain cleaner workshops, improve workflow, and reduce operating costs.
Airborne lint and fibers can spread between production areas, affecting product quality and equipment performance.
Many fabrics require controlled environmental conditions throughout the production process.
Carts, forklifts, and operators need fast access between weaving, dyeing, inspection, and packaging areas.
Frequent door openings increase HVAC workload and operating costs.
|
|
|
Reduces dust, lint, and particle transfer between production zones.
Supports temperature and humidity control required for textile processing.
Faster movement of raw materials, finished fabrics, forklifts, and operators.
Fast opening and tight sealing minimize conditioned air loss.
Durable PVC curtain and servo drive system ensure long-term reliability.
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Opening speed up to 2.0 m/s with DSP servo control for smooth and precise movement.
Brush side seals and EPDM bottom seal help reduce dust transfer and air leakage.
Designed for over 1,000 operating cycles per day.
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
|
|
|
A PVC industrial high speed door with high sealing performance and servo motor control is ideal for controlling dust, improving efficiency, and maintaining stable production conditions.
Yes. Fast opening and closing speeds reduce air exchange, helping maintain temperature and humidity while lowering HVAC energy consumption.
High-quality industrial high speed doors can support over 1,000 cycles per day, making them suitable for high-traffic textile production facilities.
Looking for a reliable Industrial High Speed Door for your textile manufacturing project?
Contact Changzhou YOHO Industrial Door Co., Ltd. for factory-direct pricing, customized solutions, OEM & ODM services, and professional technical support.
