Lugar de origen:
Porcelana
Nombre de la marca:
YOHO
Certificación:
ISO 9001/CE
Número de modelo:
Puerta espiral de alta velocidad

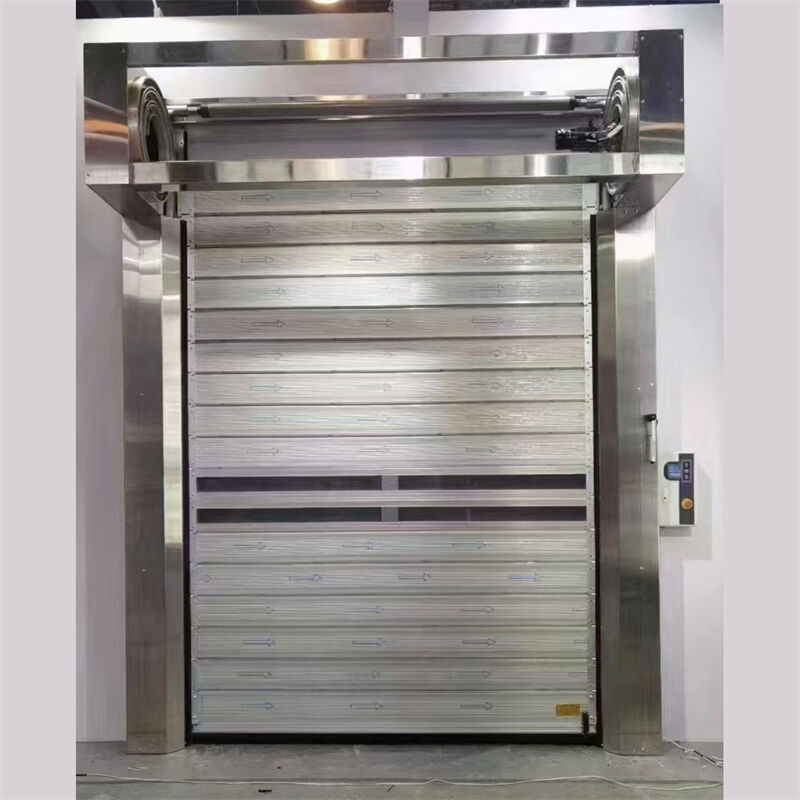

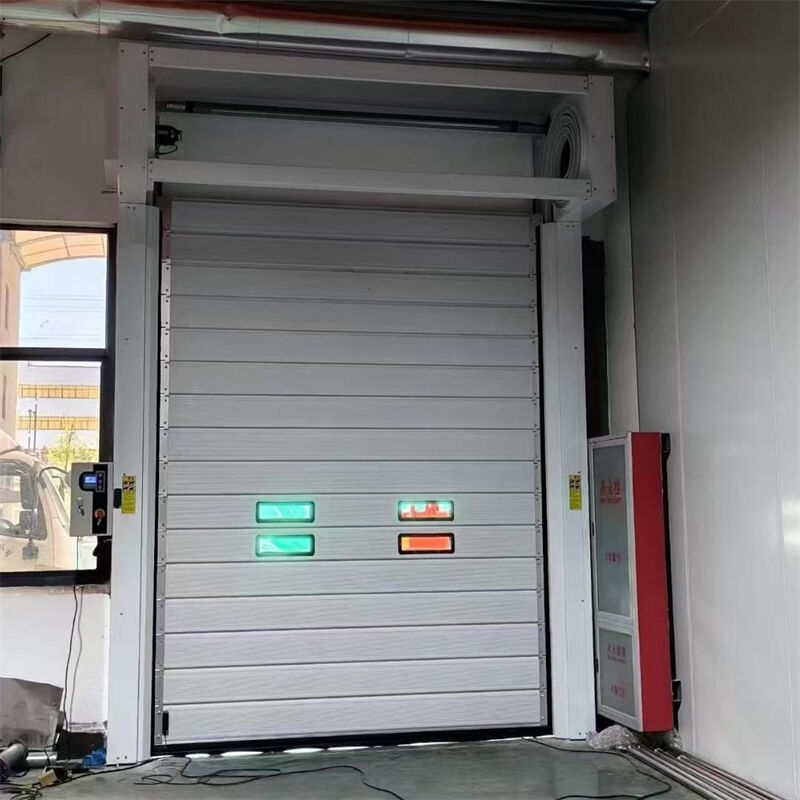

The Insulated Spiral High Speed Door is a high-performance industrial door designed for facilities that require fast operation combined with excellent thermal insulation.
Also known as a Thermal Spiral Door, PU Insulated High Speed Door, or Energy Saving High Speed Door, this advanced rigid door system combines insulated aluminum panels with a high-speed spiral lifting mechanism to provide superior temperature control and efficient industrial access.
Unlike standard PVC high speed doors, the insulated spiral high speed door uses rigid aluminum sandwich panels filled with high-density polyurethane foam. This structure provides better thermal performance, improved sealing, and stronger durability for demanding industrial environments.
It is widely used in warehouses, manufacturing plants, logistics centers, food-related facilities, and buildings where reducing energy loss and maintaining indoor conditions are important.
| Parameter | Description |
|---|---|
| Maximum Available Size | Door width: 1000–7000 mm Door height: 1500–5000 mm |
| Lifting Mechanism | The aluminum alloy turbine guide rail ensures high-speed operation of the door curtain during opening and closing. The rotational friction between the door curtain and the rail effectively controls noise. Based on the on-site installation structure, it can be divided into: turbine suction type, elliptical suction type, vertical lifting type, 90-degree standard corner lifting type, or other rail configurations. The standard configuration is the turbine suction type; other lifting methods require prior arrangement with our sales personnel. |
| Operating speed | Opening speed: 0.6-1.5 M/S (adjustable) Closing speed: 0.6 M/S (adjustable) |
| Door panel materials | The outer layer is constructed from aluminum alloy; the single-layer aluminum alloy skin has a thickness of 0.7 mm, while the overall door panel thickness measures 40 or 43 mm. The interior of the door panel is filled with polyurethane, achieving a density of up to 50 kg/m³. A variety of painted color options are available for the door panels. |
| Sealing performance | Multiple seals, including guide rail seals, door panel middle seals, and door body bottom seals, ensure airtightness and isolation between the inside and outside of the door. |
| Wind resistance | Maximum wind speed of 8 on the Beaufort scale, which may intensify to 10 on the Beaufort scale. |
| Manual functions | In the event of a power outage, the motor brake can be released at any time, and the door can be lifted using the balancing system. This effectively solves the problem of the door being unable to open due to power failure or malfunction. |
| Switching method | Standard one-button control box with emergency stop switch. Optional features include: radar sensing, magnetic loop sensing, pull-cord switch, and remote control activation. |
| Reserved port | The electrical control system includes provisions for: infrared safety switches, magnetic induction switches, radar induction switches, pull-cord switches, remote control switches, and double-door interlocking, ensuring strong compatibility. |
An Insulated High Speed Door is an industrial door designed to combine rapid opening performance with thermal insulation capability.
Traditional high speed doors mainly focus on traffic efficiency, while insulated spiral doors provide additional benefits:
The insulated spiral high speed door is especially suitable for industrial buildings where doors are opened frequently but maintaining stable indoor conditions is also important.
The key feature of this thermal spiral door is the insulated aluminum panel construction.
The door panel consists of:
This insulated construction helps minimize heat transfer between indoor and outdoor environments.
The biggest advantage of the insulated high speed door is its ability to reduce energy loss.
The polyurethane insulated panel helps:
Frequent door opening can cause significant air exchange in industrial buildings.
The thermal spiral door reduces:
It is an ideal solution for companies focusing on energy efficiency.
The insulated spiral high speed door adopts multiple sealing structures:
Advantages:
With:
the insulated spiral high speed door can be installed in:
Compared with traditional insulated sectional doors, the thermal spiral door provides:
It is suitable for areas requiring both speed and insulation.
The rigid spiral structure reduces mechanical friction and improves service life.
Compared with traditional insulated roll-up doors:
Check:
Recommended:
Proper maintenance ensures stable operation and long-term insulation performance.
|
|
|
Temperature-sensitive warehouses require reliable insulation and fast access.
Applications:
Benefits:
Food production environments require clean and energy-efficient access solutions.
Applications:
Advantages:
Applications:
Benefits:
Applications:
Benefits:
With:
the insulated spiral high speed door can be installed in:
Benefits:
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Changzhou YOHO Industrial Door Co., Ltd. specializes in manufacturing insulated spiral high speed doors and customized industrial door solutions.
Our products are designed for:
Our factory provides:
Available:
We support:
|
|
|
An insulated spiral high speed door is a rigid industrial door using aluminum panels filled with polyurethane foam to provide both high-speed operation and thermal insulation.
The PU foam core reduces heat transfer and improves energy efficiency, helping maintain stable indoor temperatures.
Yes. The aluminum rigid panel structure and Class 9 wind resistance allow outdoor industrial installation.
Insulated high speed doors use thicker rigid panels with PU foam filling, providing better thermal performance compared with standard PVC high speed doors.
Yes. Polycarbonate vision panels can be customized to improve visibility and safety.
Application: Distribution Center
The customer needed a fast industrial door that could reduce energy loss during frequent warehouse operations.
We supplied insulated spiral high speed doors with PU-filled aluminum panels to improve temperature separation and operational efficiency.
Looking for a reliable Insulated High Speed Door Manufacturer or Thermal Spiral Door Supplier in China?
Changzhou YOHO Industrial Door Co., Ltd. provides:
Contact us today for product information and factory quotation.
