Beaufort 10 Wind Resistance Spiral High Speed Door with Rigid Aluminum Panels and 40mm Insulated Panels

Beaufort 10 Wind Resistance Spiral High Speed Door with Rigid Aluminum Panels and 40mm Insulated Panels

Strong Wind Resistance

Beaufort 10 Wind Resistant Door

Outdoor Loading Dock Door

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

Spiral High Speed Door

Chat Now
Request A Quote
Beaufort 10 Wind Resistance Spiral High Speed Door with Rigid Aluminum Panels and 40mm Insulated Panels Beaufort 10 Wind Resistance Spiral High Speed Door with Rigid Aluminum Panels and 40mm Insulated Panels Beaufort 10 Wind Resistance Spiral High Speed Door with Rigid Aluminum Panels and 40mm Insulated Panels
Product Details
Product Name:
Spiral High Speed Door
Wind Resistance:
Beaufort 10 (approx. 28m/s)
Structure:
Spiral Turbine Housing With Rigid Aluminum Panels
Material:
Aluminum Alloy + Polyurethane (Density 50 Kg/m3)
Opening/Closing Speed:
0.6-1.5 M/s (adjustable)
Power:
0.75-1.5KW
Panel Thickness:
40mm Insulated Panels
Sound Insulation:
24dB
Max Size:
Door Width 1000-7000mm, Height 1500-5000mm
Application:
Outdoor Loading Dock Areas
Highlight:

Strong Wind Resistance

,

Beaufort 10 Wind Resistant Door

,

Outdoor Loading Dock Door

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiable
Packaging Details
Plywood case
Delivery Time
10-15 Days
Payment Terms
T/T
Supply Ability
300 Units per Month
Related Products
Good price Beaufort 10 Wind Resistant Spiral High Speed Door with 40mm Insulated Panels for Coastal Industrial Facilities online

Beaufort 10 Wind Resistant Spiral High Speed Door with 40mm Insulated Panels for Coastal Industrial Facilities

Chat Now
Good price Space-Saving Turbine System Spiral High Speed Door with 40mm Insulated Panels and 0.6-1.5 m/s Adjustable Speed online

Space-Saving Turbine System Spiral High Speed Door with 40mm Insulated Panels and 0.6-1.5 m/s Adjustable Speed

Chat Now
Good price Space-Saving Turbine System Spiral High Speed Door with 0.6-1.5 m/s Adjustable Speed and 40mm Insulated Panels online

Space-Saving Turbine System Spiral High Speed Door with 0.6-1.5 m/s Adjustable Speed and 40mm Insulated Panels

Chat Now
Good price Turbo Spiral Lifting System Aluminum High Speed Door 1.5m/s Rapid Opening Industrial Access online video

Turbo Spiral Lifting System Aluminum High Speed Door 1.5m/s Rapid Opening Industrial Access

Chat Now
Contact Us
86--18021983369
yohao260105@gmail.com
Chat Now
Product Description

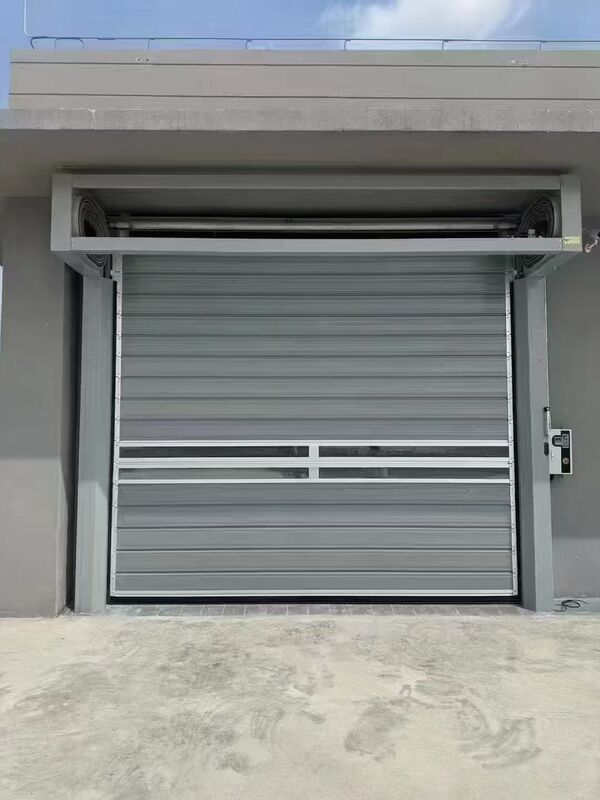

Strong Wind Resistance Spiral High Speed Door For Outdoor Loading Dock Areas
A Strong Wind Resistance Spiral High Speed Door is built for outdoor loading docks where doors face constant wind pressure. Rigid aluminum panels and a reinforced frame deliver a high wind resistance rating while the spiral turbine system keeps operation fast and space-efficient.
Engineered to Stand Up to Wind
Outdoor docks are exposed to gusts that can distort or damage light doors. This door uses rigid aluminum panels with a reinforced frame and a spiral turbine that holds the panels firmly, providing strong wind resistance up to Beaufort 10 (around 28m/s) so the opening stays sealed and reliable even in rough weather.
Key Advantages
  • High Wind Resistance: Rated for wind speeds up to Beaufort 10, keeping the door stable and sealed in exposed outdoor conditions.
  • Rigid Aluminum Panels: Stiff insulated panels resist deformation under wind load far better than flexible curtain doors.
  • Fast, Sealed Operation: Speeds of 0.6-1.5m/s keep dock traffic flowing while effective sealing reduces draughts and dust.
  • Compact Spiral Housing: The spiral turbine minimizes overhead space while gripping the panels securely against the wind.
Product Specifications
Wind Resistance Beaufort 10 (approx. 28m/s)
Structure Spiral turbine housing with rigid aluminum panels
Material Aluminum Alloy + Polyurethane (Density 50 kg/m3)
Opening/Closing Speed 0.6-1.5 m/s (adjustable)
Power 0.75-1.5KW
Panel Thickness 40mm insulated panels
Sound Insulation 24dB
Max Size Door width 1000-7000mm, height 1500-5000mm
Safety Device Buffer safety edge at the bottom of the door
Power Supply 380V 50Hz / 220V 50Hz
Typical Applications
  • Outdoor loading dock areas
  • Exposed warehouse entrances
  • Facilities in windy regions
  • External logistics passages
  • Docks facing open ground or coast
Frequently Asked Questions
How much wind can the door withstand?
The door is rated for wind speeds up to Beaufort 10, approximately 28m/s.
Why is a spiral door good for windy sites?
Rigid aluminum panels and the spiral turbine hold the door firmly against wind load, unlike flexible curtain doors.
Is it insulated?
Yes. It uses 40mm insulated aluminum panels with a polyurethane core.
Can the size be customized?
Yes. Customized sizes are available to suit each opening.
We provide technical consultation, OEM services, and bulk order solutions for strong wind resistance spiral high speed doors for outdoor loading dock areas.
