Space-Saving Turbine System Spiral High Speed Door with 40mm Insulated Panels and 0.6-1.5 m/s Adjustable Speed

A Space-Saving Turbine System Spiral High Speed Door is engineered for production facilities where space above and beside the opening is limited. Its rigid aluminum panels coil into a compact spiral turbine housing, requiring minimal headroom and no side tracks, thereby maximizing available space for equipment and workflow.

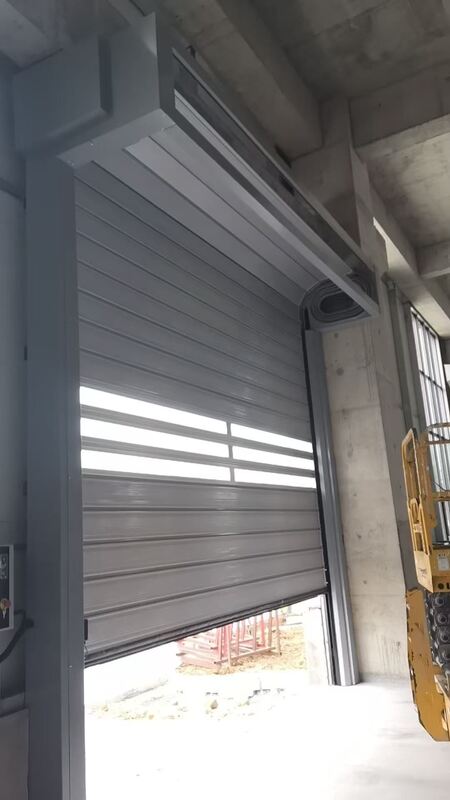

The space-saving turbine system lifts rigid panels directly into a cylindrical spiral housing above the opening. Because panels roll tightly into the turbine rather than stacking under the ceiling, the door requires significantly less overhead depth than conventional sectional or roll-up doors, while keeping both door jambs completely clear.

• Compact Spiral Turbine Housing: Panels coil into a cylindrical turbine, minimizing required overhead depth above the opening.
• No Side Tracks Required: Self-supporting spiral design keeps door jambs free, protecting aisle width in tight production areas.
• Fast and Quiet Operation: Opening and closing speeds of 0.6-1.5m/s maintain workflow efficiency with smooth, quiet spiral action.
• Insulated Rigid Panels: Aluminum panels with polyurethane core provide insulation, sealing, and clean modern appearance.

• Compact production facilities
• Workshops with limited headroom
• Manufacturing lines with tight side clearance
• Food and electronics production areas
• Clean and hygienic production zones

How does the turbine system save space?
Rigid panels coil into a compact spiral housing above the opening, requiring minimal headroom and no side tracks.

What speeds does the door achieve?
Opening and closing speeds are adjustable between 0.6m/s and 1.5m/s.

Is the door insulated?
Yes. It uses 40mm insulated aluminum panels with a polyurethane core for thermal and sound performance.

Can the size be customized?
Yes. The door is available in customized sizes to suit each opening.

We provide technical consultation, OEM services, and bulk order solutions for space-saving turbine system spiral high speed doors for compact production facilities.
