Turbo Spiral Lifting System Aluminum High Speed Door 1.5m/s Rapid Opening Industrial Access

Turbo Spiral Lifting System

1.5m/s Rapid Opening Speed

Shaftless Helical Lifting Drive

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

YOHO-SHD-TS15

Chat Now

Request A Quote

Product Details

Product Name:

Spiral High Speed Door

Lifting System:

Turbo Spiral Lifting System (shaftless)

Opening Speed:

Up To 1.5 M/s (adjustable)

Closing Speed:

0.6 M/s (adjustable)

Material:

Aluminum Alloy + Polyurethane (50 Kg/m3)

Max Size:

Width 1000-7000 Mm; Height 1500-5000 Mm

Power:

0.75-1.5 KW

Wind Resistance:

Beaufort 8 (up To 10)

Safety Device:

Infrared Safety Switches, Bottom Buffer, Emergency Stop

Structure Of Door:

Spiral Type / Oval Spiral Type / Vertical Lift Type

Application:

Factories, Warehouses, Logistics Centers, Automated Facilities

Highlight:

Turbo Spiral Lifting System

1.5m/s Rapid Opening Speed

Shaftless Helical Lifting Drive

Payment & Shipping Terms

Minimum Order Quantity

1 Unit

Price

Negotiable

Packaging Details

Plywood package

Delivery Time

10-15 days

Payment Terms

T/T

Supply Ability

300 units per month

Wind Resistance Rated Spiral High Speed Door Aluminum Panel Outdoor Dock Industrial Entrance

Chat Now

High-Strength Aluminum Alloy Structure Spiral High Speed Door Rigid Panel Industrial Entrance

Chat Now

Fast Opening Speed Aluminum Spiral High Speed Door 1.5m/s Rapid Cycle Industrial Access

Chat Now

Turbo Spiral Lifting System Aluminum High Speed Door 1.5m/s Rapid Opening Industrial Access

Chat Now

86--18021983369

yohao260105@gmail.com

Chat Now

Product Description

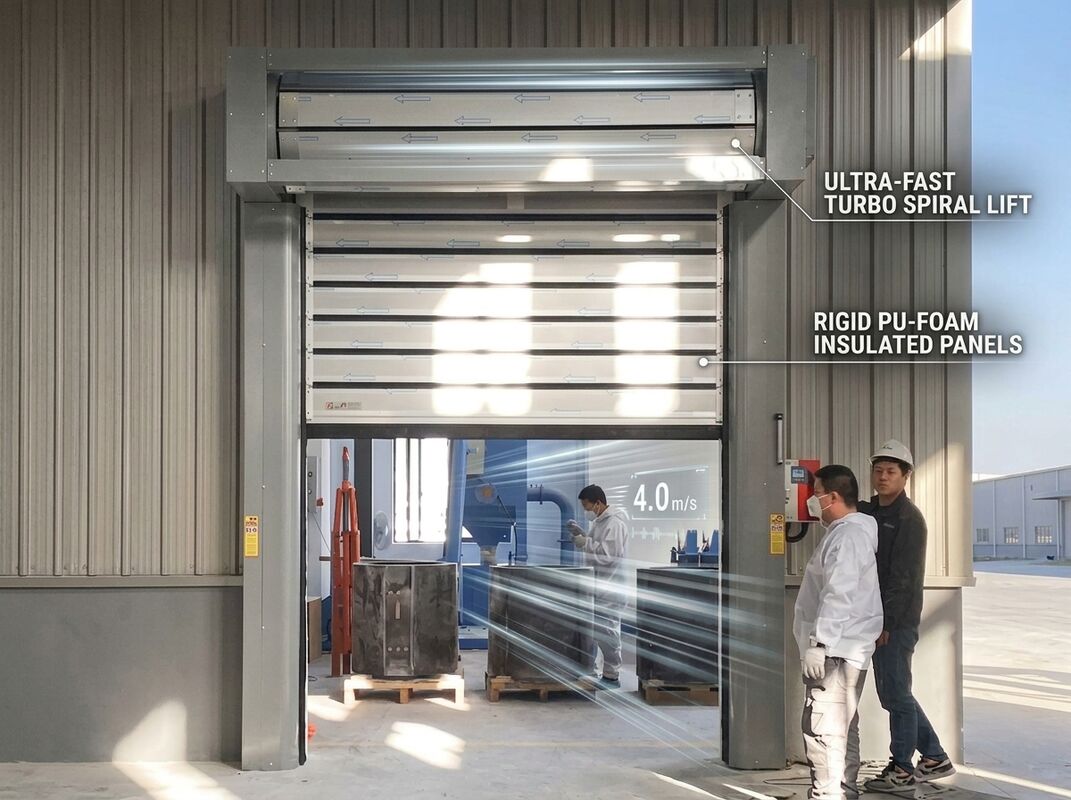

Turbo Spiral Lifting System Aluminum High Speed Door

Our Turbo Spiral Lifting System Aluminum High Speed Door is a rigid industrial door engineered for high-frequency openings in factories, warehouses, logistics centers and automated facilities. The advanced turbo spiral lifting mechanism delivers opening speeds up to 1.5m/s while keeping operation smooth, quiet and low-maintenance.

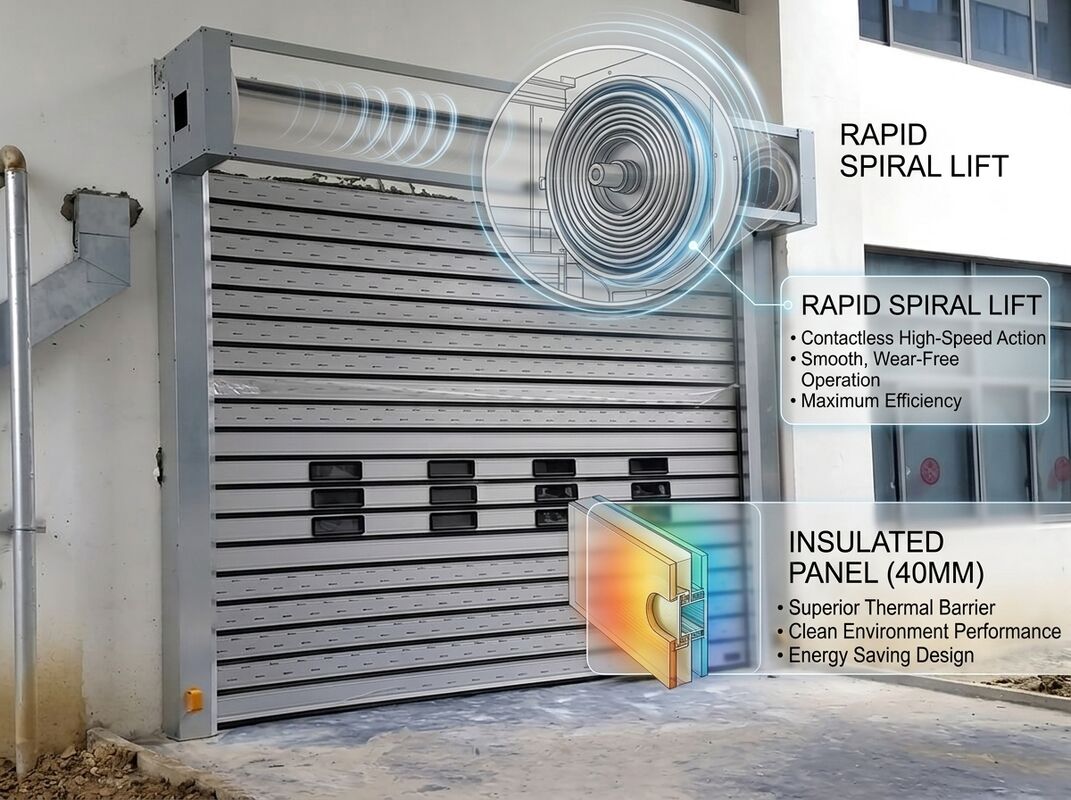

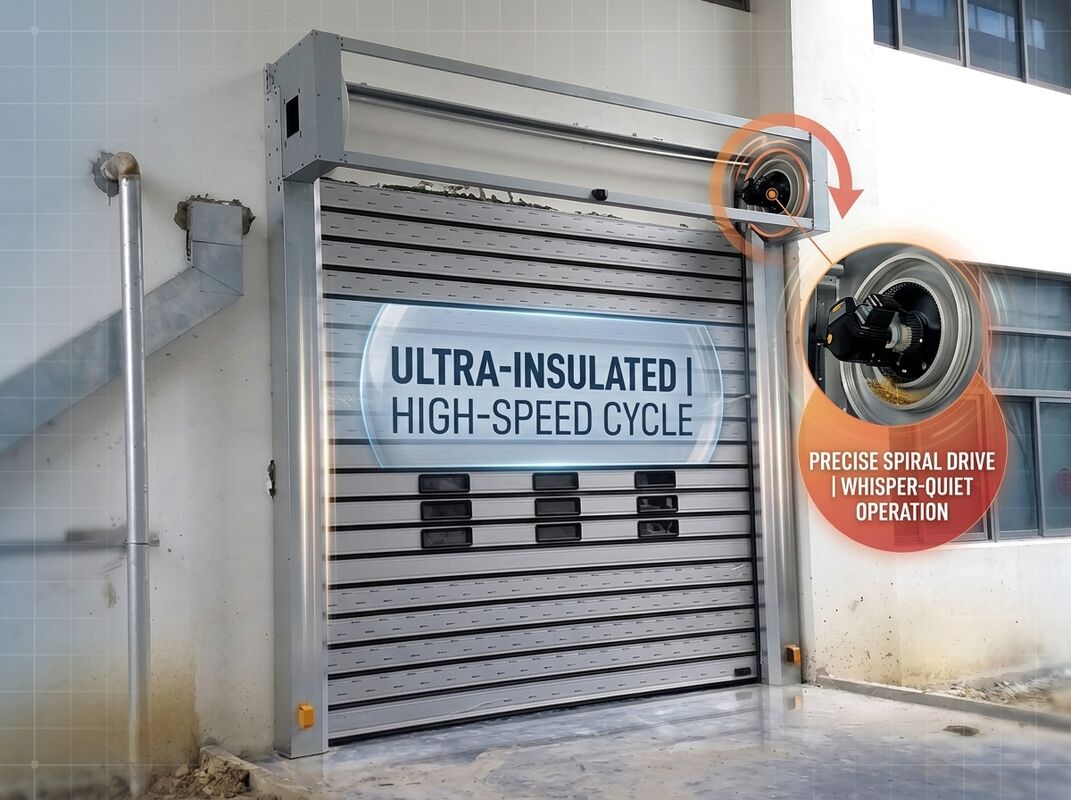

Unlike conventional rolling doors that wrap around a roller shaft, the turbo spiral lifting system guides rigid aluminum panels through a precision spiral track. This shaftless design reduces mechanical wear, cuts noise and extends service life, making it an ideal rapid access solution for demanding industrial environments.

Product Specifications

Parameter	Description
Maximum Available Size	Door width: 1000-7000 mm; Door height: 1500-5000 mm
Lifting System	Turbo spiral lifting system with aluminum alloy guide rail; shaftless spiral track design
Operating Speed	Opening speed: up to 1.5 m/s (adjustable); Closing speed: 0.6 m/s (adjustable)
Door Panel Material	Aluminum alloy outer skin 0.7 mm; panel thickness 40 or 43 mm; polyurethane foam core up to 50 kg/m3
Sealing Performance	Guide rail seals, panel middle seals and bottom seals for airtight isolation
Wind Resistance	Up to Beaufort scale 8, may intensify to 10
Manual Function	Motor brake release and balancing system for power failure operation
Control Options	One-button control box with emergency stop; optional radar, magnetic loop, pull-cord and remote control

Key Features of Turbo Spiral Lifting System

1.5m/s rapid opening improves traffic flow and reduces waiting time
Shaftless spiral lifting drive minimizes friction, noise and maintenance
Rigid aluminum panels with PU insulation provide strength and energy saving
High cycle capability for continuous industrial operation
Multiple lifting configurations: spiral type, oval spiral type, vertical lift type
Optional polycarbonate vision windows and full safety device integration

Applications

Automotive manufacturing workshops, machinery plants, warehouses, logistics and distribution centers, automated storage systems and industrial building entrances.

Contact Us

Email: yohao260105@gmail.com
WhatsApp: +8618021983369
OEM & ODM service welcome. Customized sizes available.
