Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High-Speed PVC Industrial Door
Food manufacturers face constant challenges in maintaining hygiene standards while keeping production lines running efficiently. Traditional doors often remain open for extended periods, allowing dust, insects, and unconditioned air to enter critical production areas. This not only increases contamination risks but can also affect product quality, food safety compliance, and operating costs.

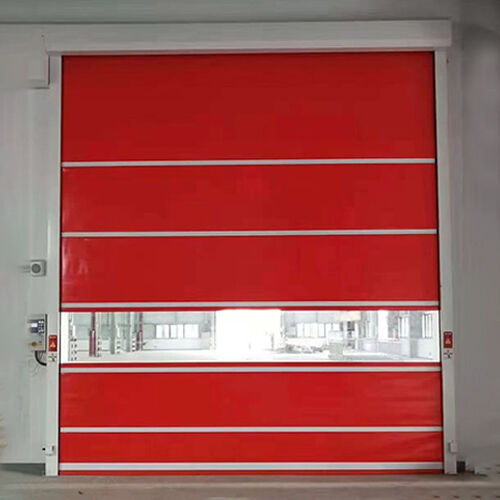

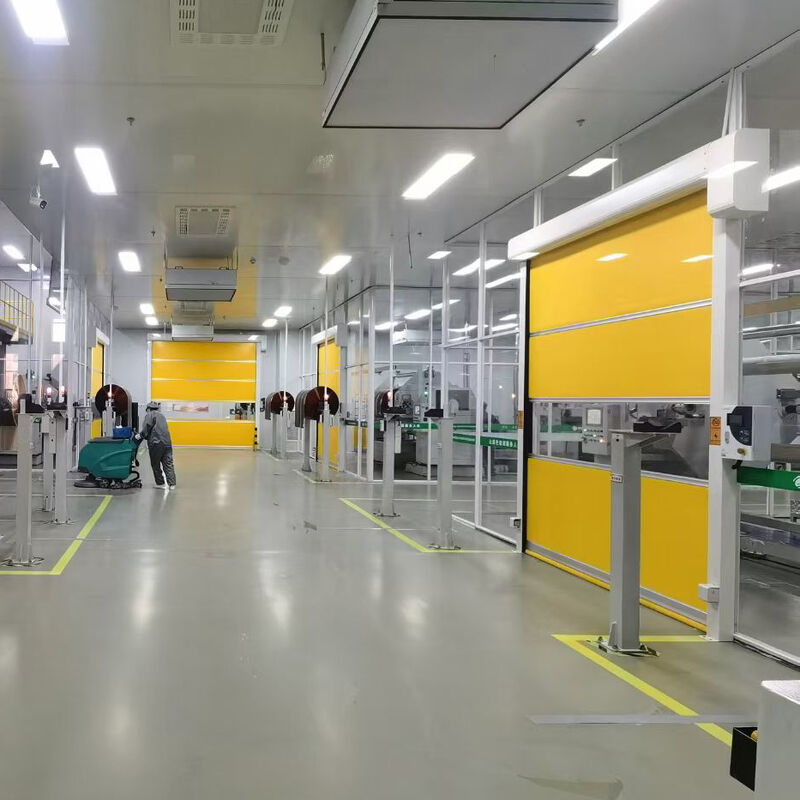

The PVC High Speed Door is specifically designed for food processing facilities where cleanliness, temperature control, and workflow efficiency are essential. With rapid opening and closing speeds, hygienic PVC materials, and a highly effective sealing system, this Industrial Fast Door helps food manufacturers create cleaner production environments while supporting uninterrupted daily operations.
Open doorways allow contaminants to enter processing and packaging zones, increasing the risk of product contamination.
Conditioned air escapes every time a door remains open, forcing HVAC systems to work harder.
Raw material zones, processing rooms, and packaging areas often require different environmental standards.
Traditional doors create bottlenecks for workers, carts, and forklifts moving throughout the facility.
The door opens and closes within seconds, reducing waiting time and improving production efficiency.
Ideal for facilities with frequent movement of materials and personnel.
Side sealing brushes and bottom seals help create a more controlled environment.
Improves cleanliness in food production and packaging areas.
The smooth PVC surface can be cleaned quickly during routine sanitation procedures.
Suitable for humid processing environments and wash-down areas.
Helps maintain stable temperatures and controlled production conditions.
Improves energy efficiency and reduces HVAC load.
Supports HACCP, GMP, and food safety management practices.
Allows smooth movement without interrupting workflow.
Minimizes damage caused by accidental impacts.
Helps improve comfort for employees and equipment.
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0 mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Separate receiving and processing zones.
Helps maintain cleaner packaging environments.
Supports continuous production operations.
Improves hygiene and operational efficiency.
Reduces energy loss and maintains environmental stability.
Because it helps reduce contamination risks, improves hygiene management, and supports efficient production flow.
Yes. The sealing system is designed to limit dust, insects, and unwanted airflow entering production areas.
Yes. The smooth PVC curtain surface is designed for easy cleaning and routine sanitation.
Yes. The door helps reduce air exchange and improve temperature stability.
Contact Changzhou YOHO Industrial Door Co., Ltd. to get customized Industrial Fast Door solutions for food processing facilities.
|
|
|
