2mm Thickness Gualvanized Steel Fire Rated Sectional Overhead Door For High-Traffic Warehouse Environments

MOQ: IUNIT
Price: Negotiable
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
Sectional Overhead Door
Product Name:
Sectional Overhead Door
Material:
SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate
Thickness Of Guiding Rail:
2mm
Thickness Of Panel:
40mm, 50mm, And 80mm
Size:
Customized Size
Maximum Available Size:
Door Width: 1000mm–8000mm, Door Height: 1500mm–10000mm
Thickness Of Panel Mateiral:
0.326 / 0.45mm / 0.55mm / 0.6mm
Wind Resistance:
Level 11
Speed:
0.2-0.4m / S
Torsion Spring:
≥30,000 Times
Sound Insulation:
24dB
Watertight:
Level 3 (water Pressure 30Pa)
Application:
High-Traffic Warehouse Environments
Highlight:

Gualvanized Steel Sectional Overhead Door

,

2mm Sectional Overhead Door

,

Traffic Sectional Overhead Door

Product Description

2mm Thickness Gualvanized Steel Optional Fire Rated Sectional Overhead Door For High-Traffic Warehouse Environments

Product Introduction

In logistics-intensive environments, door systems must withstand constant use while maintaining reliable performance. The sectional overhead door is designed to provide efficient access control and long-term durability for warehouses and industrial facilities.

This industrial sectional overhead door features a robust panel structure combined with a vertical lifting mechanism, allowing smooth operation even under high-frequency use. It is also available as a commercial sectional overhead door, offering flexibility for different building types. Optional fire rated sectional overhead door configurations further enhance safety in critical applications.

Advantages of Sectional Overhead Doors Commercial Use

  • Optimized Logistics Flow
  • Reduced Waiting Time
  • Improved Dock Efficiency
  • Enhanced Safety in Operations

Key Features of Sectional Overhead Door

Industrial Panel Construction

  • Galvanized steel panels
  • Reinforced structural design
  • Long-term durability

Insulated Overhead Door System

  • PU foam core insulation
  • Energy-saving performance
  • Temperature control capability

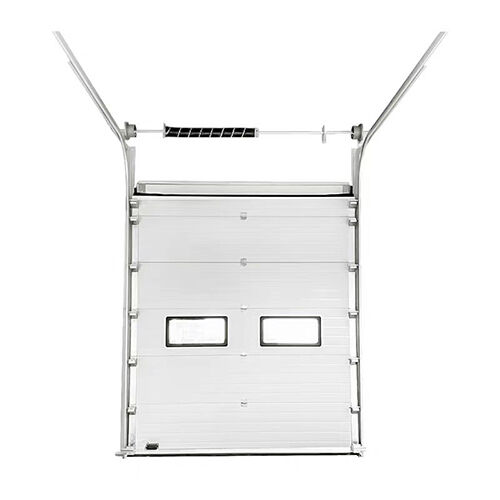

Overhead Track System

  • Vertical lift mechanism
  • Ceiling-mounted rails
  • Smooth movement

Fire Rated Sectional Overhead Door Option

  • Fire-resistant panel system
  • Safety compliance support
  • Suitable for industrial buildings

Smart Control System

  • Motorized operation
  • Remote control access
  • Automation integration

Product Specifications

Item Description
Material SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate
Thickness of Panel Mateiral 0.326 / 0.45mm / 0.55mm / 0.6mm
Thickness of Guiding Rail Gualvanized Steel,thickness: 2mm
Thickness of Panel 40mm / 50mm
Width of Panel 430mm / 550mm
Density of Sandwiches 48kg/m3
Surface Treatment Power coating,thickness of coating:30um
Heat Preservation 4.5W/m.h
Wind Resistance Beaufort scale 11, 28m/s
Noise Level: ≤60db
Sound Insulation Level 24 Db
Fire Retardation: Class A
Speed 0.2-0.4m / s
Max Dimension 12m * 8m
Sealing Performance EPDM rubber all round sealing : two side, top, bottom,between door panels
Steel cord Flexible ,3.8mm
Power Supply 380V 50Hz / 220V 50Hz
Service Life 10 years
Emergency Operation Manual Hoist Chain to open the door in case of power off
Balance System a. Balance the weight of door through the torsion spring
b. Easily manual operation: 140N to open
c. Spring brake device:Anti-broken device
d. Service Life:100 thousand open & close
e. Prolong the service life of the motor
Safety Airbag protection, door anti-fall device, wire rope anti-break protection device.
Optional Item Window,pedestrian door

2mm Thickness Gualvanized Steel Fire Rated Sectional Overhead Door For High-Traffic Warehouse Environments 0

Installation method

2mm Thickness Gualvanized Steel Fire Rated Sectional Overhead Door For High-Traffic Warehouse Environments 1

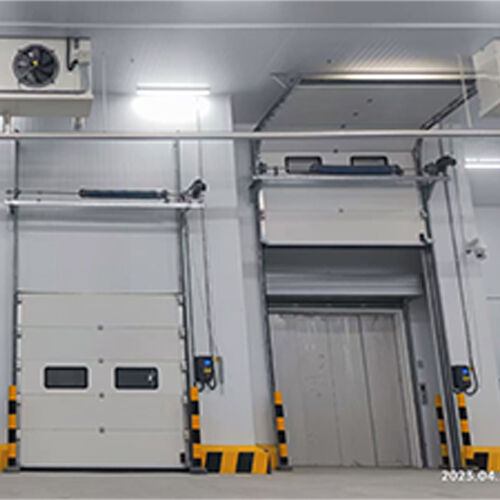

Applications of Sectional Overhead Door

  • Warehouse Loading Areas
  • Distribution Centers
  • Factory Entrances
  • Commercial Storage Facilities
  • Industrial Dock Systems

FAQ

Can sectional overhead doors be used in logistics centers?

Yes, they are ideal for high-traffic logistics environments.

Are fire rated sectional overhead doors necessary?

They are recommended for facilities requiring fire safety compliance.

Is the door suitable for heavy industrial use?

Yes, industrial sectional overhead door systems are built for durability.

2mm Thickness Gualvanized Steel Fire Rated Sectional Overhead Door For High-Traffic Warehouse Environments 2

2mm Thickness Gualvanized Steel Fire Rated Sectional Overhead Door For High-Traffic Warehouse Environments 3
