Wind Resistance Automotive Factory High Speed Door For Automotive Manufacturing

Products

Wind Resistance Automotive Factory High Speed Door For Automotive Manufacturing

MOQ:	IUNIT
Price:	negotiation
Standard Packaging:	plywood package
Delivery Period:	10~15DAYS
Payment Method:	T/T
Supply Capacity:	300 unit per month

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

Certification

ISO 9001/CE

Model Number

High-Speed PVC Industrial Door

Name:

Industrial High Speed Door

Color:

Yellow/Blue/Red/Grey/White/Transparent

Size:

3x3 M Or Customized (max Size:6x8m)

Voitage:

380V Or 220V

Panel Material:

Anti-skid Checkered Plate

Material:

PVC Curtain / Galvanized Steel / Stainless Steel

Power:

0.75-1.5KW

Door Width:

1000 Mm - 6000 Mm

Door Height:

1500 Mm - 6000 Mm

Application:

Logistics & Warehousing

Product Description

Wind Resistance Automotive Factory High Speed Door For Automotive Manufacturing

Product Introduction

Automotive manufacturing plants operate with continuous assembly lines and frequent material transfer. The Industrial PVC High Speed Door for Automotive Plants ensures smooth access between production zones while maintaining environmental control and workflow efficiency.

This automotive factory high speed PVC door supports body shops, parts assembly areas, and paint buffer zones.

Product Specifications:

Parameter	Description
Material	PVC curtain / Galvanized steel / Stainless steel
Max Door Size	Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm
Operating Speed	Opening Speed: 0.6 - 1.2 m/s (adjustable); Closing Speed: 0.6 m/s (adjustable)
Curtain Material	0.8 - 2.0 mm thick curtain, color options: Blue, Orange, Gray
Motor Power	0.75-1.5KW (depending on size & speed)
Temperature Range	-10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel)
Sealing Performance	High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing
Wind Resistance	Max Wind Resistance: Class 6 (can be reinforced to Class 8)
Manual Function	In case of power failure or malfunction, the door can be manually opened with a wrench.
Power Requirements	220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards.
Insulation Protection	IP54 rating, providing water and dust protection, suitable for harsh environments.
Switching Methods	Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc.

Product Characteristics

Impact-Resistant PVC Curtain

Flexible curtain tolerates minor forklift contact.

Fast Cycle Performance

Optimized for high-frequency assembly operations.

Compact Structure

Suitable for narrow automotive plant corridors.

Safety Integration

Photocells and bottom edge sensors included.

Advantages in Automotive Industry

Supports Lean Manufacturing

Reduces waiting time in production flow.

Durable for Industrial Use

Withstands heavy daily cycles.

Cost-Effective Solution

More affordable than rigid spiral doors.

Application Areas

Automotive assembly lines
Parts storage rooms
Internal logistics corridors
Paint buffer entrances
Packaging and dispatch zones

Detailed Feature Focus: Impact Recovery Curtain System

Flexible Material Response

Curtain flexes under minor collision.

Optional Self-Reinserting Design

Automatically resets after displacement.

Reinforced Bottom Bar

Improves stability during operation.

FAQs

Is it suitable for automotive plants?

Yes, designed for high-cycle industrial environments.

Can it withstand forklift contact?

Yes, flexible PVC reduces damage risk.

Does it support automation?

Yes, compatible with factory systems.

Do you offer customized projects?

Yes, OEM and export supply available.

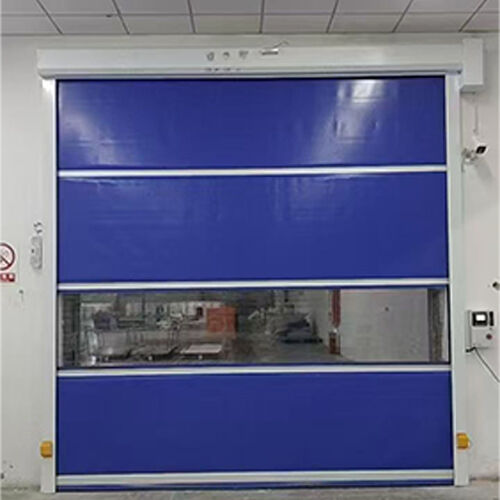

Wind Resistance Automotive Factory High Speed Door For Automotive Manufacturing 0
