Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
High-Speed PVC Industrial Door
In food processing facilities, maintaining hygiene standards is just as important as maintaining production efficiency. Every time a door remains open, dust, insects, moisture, and unconditioned air can enter the production area, increasing contamination risks and creating challenges for food safety management. At the same time, busy production lines require fast and reliable access for workers, carts, forklifts, and raw materials.

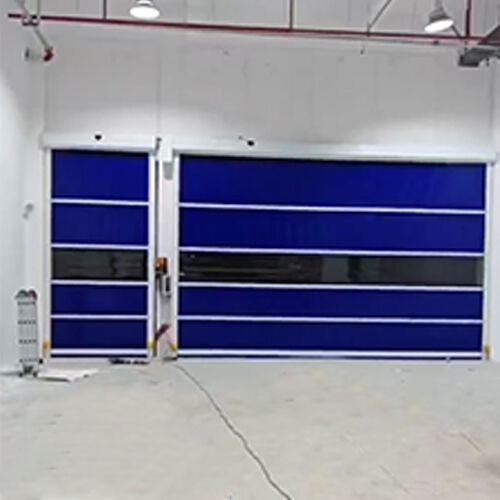

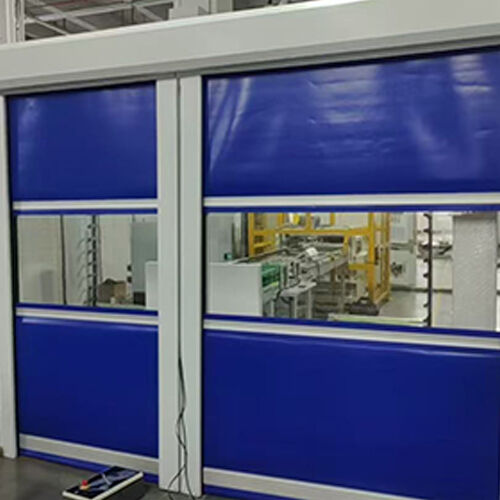

The High-Speed PVC Door for Food Processing Plants is specifically designed to help food manufacturers create cleaner, safer, and more efficient production environments. With a washable food-grade PVC curtain, rapid operating speed, and excellent sealing performance, this Industrial Fast Door minimizes contamination risks while supporting continuous production flow. It is an ideal solution for food factories seeking to improve hygiene control, reduce energy loss, and optimize internal logistics.
Open doorways can allow insects, dust, and airborne particles to enter processing and packaging zones, affecting product quality and compliance.
Raw material rooms, preparation areas, processing workshops, and packaging zones often require different hygiene standards.
Frequent traffic between production areas can cause conditioned air to escape, increasing refrigeration and HVAC costs.
Traditional doors can create bottlenecks for workers, pallet carts, and forklifts moving throughout the facility.
Rapid door operation allows personnel and materials to move efficiently between work areas.
Supports high-frequency traffic during peak production periods.
The PVC curtain can be cleaned regularly and easily as part of sanitation procedures.
Designed for facilities that require strict cleanliness standards.
Side guides and bottom sealing systems help create a more controlled environment.
Improves environmental separation between production zones.
Suitable for humid environments and frequent cleaning operations.
Resists corrosion caused by cleaning chemicals and moisture.
| Parameter | Description |
|---|---|
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Max Door Size | Door Width: 1000 mm - 6000 mm; Door Height: 1500 mm - 6000 mm |
| Operating Speed | Opening Speed: 0.8-2.0 m/s (adjustable); Closing Speed: 0.5-0.8 m/s (adjustable) |
| Curtain Material | 0.8/1.2/1.5/2.0mm thick curtain, color options: Blue, Orange, Gray |
| Motor Power | 0.75-1.5KW (depending on size & speed) |
| Temperature Range | -10°C to 60°C (PVC); -10°C to 60°C (Steel/Stainless Steel) |
| Sealing Performance | High-quality brush seals on tracks; Bottom equipped with EPDM seal structure for better sealing |
| Wind Resistance | Max Wind Resistance: Class 6 (can be reinforced to Class 8) |
| Manual Function | In case of power failure or malfunction, the door can be manually opened with a wrench. |
| Power Requirements | 220V/13A Single-phase/50Hz-60Hz, IP54 control box, meets national electrical safety standards. |
| Insulation Protection | IP54 rating, providing water and dust protection, suitable for harsh environments. |
| Switching Methods | Standard one-button switch with emergency stop. Optional: Radar sensing, Ground magnetic sensing, Pull-rope switch, Remote control, etc. |
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Maintains hygiene between receiving and processing zones.
Helps keep packaging areas cleaner and more controlled.
Supports strict sanitation management.
Reduces energy loss while maintaining workflow efficiency.
Improves logistics efficiency and environmental control.
Supports food preservation and cold chain management.
Because it helps improve hygiene management, reduce contamination risks, and maintain efficient production flow.
Yes. The curtain is designed for routine cleaning and sanitation procedures.
Yes. The sealing system significantly reduces the entry of insects, dust, and airborne particles.
Yes. Fast opening and closing speeds help reduce temperature loss and improve energy efficiency.
Yes. We provide OEM and ODM services for food factories, processing plants, and clean production facilities.
Looking for a reliable Food Grade PVC High Speed Door solution for your food processing facility?
Contact Changzhou YOHO Industrial Door Co., Ltd. today, let us help you improve food safety, reduce contamination risks, lower energy costs, and create a more efficient food production environment.
|
|
|
