Heavy Duty Sectional Overhead Door 24dB Sound Insulation Commercial Sectional Garage Doors

Heavy Duty Sectional Overhead Door 24dB Sound Insulation Commercial Sectional Garage Doors

MOQ: IUNIT
Price: Negotiable
Standard Packaging: plywood package
Delivery Period: 10~15DAYS
Payment Method: T/T
Supply Capacity: 300 unit per month
Detail Information
Place of Origin
China
Brand Name
YOHO
Certification
ISO 9001/CE
Model Number
Sectional Overhead Door
Product Name:
Heavy Duty Sectional Overhead Door
Material:
SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate
Thickness Of Panel Mateiral:
0.326 / 0.45mm / 0.55mm / 0.6mm
Maximum Available Size:
Door Width: 1000mm–8000mm, Door Height: 1500mm–10000mm
Size:
Customized Size
Wind Resistance:
Level 11
Speed:
0.2-0.4m / S
Thickness Of Guiding Rail:
2mm
Torsion Spring:
≥30,000 Times
Thickness Of Panel:
40mm, 50mm, And 80mm
Sound Insulation:
24dB
Watertight:
Level 3 (water Pressure 30Pa)
Application:
Wholesale Markets
Highlight:

Heavy Duty Sectional Overhead Door

,

Sectional Overhead Door 24dB

,

Heavy Duty Overhead Door 24dB

Product Description

Industrial Sectional Overhead Door for Wholesale Markets

Wholesale markets operate as high-volume trading hubs where goods move rapidly between suppliers, distributors, and retailers. Door systems in these environments must withstand constant opening cycles, vehicle traffic, and mixed-use conditions. An Industrial Sectional Overhead Door delivers a robust lift-up solution that supports efficient circulation, organized access, and long-term durability in wholesale market facilities.


Why Sectional Overhead Doors Suit Wholesale Facilities

Vertical Lift Design for Busy Market Layouts

The upward-opening structure keeps ground-level space clear for carts, pallets, and forklifts.

Stable Operation Under Repetitive Use

Designed to handle repeated daily cycles common in wholesale trading.

Adaptable to Open & Semi-Enclosed Structures

Works well in covered markets and industrial-style wholesale halls.


Key Features for Wholesale Market Applications

Heavy-Duty Industrial Door Panels

Steel or aluminum construction resists impact and daily wear.

Reinforced Track & Balancing System

Ensures smooth lifting even with frequent operation.

Reliable Sealing Performance

Helps limit dust and airflow between trading and storage zones.


Product Specifications

Item Description
Material SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate
Thickness of Panel Mateiral 0.326 / 0.45mm / 0.55mm / 0.6mm
Thickness of Guiding Rail Gualvanized Steel,thickness: 2mm
Thickness of Panel 40mm / 50mm
Width of Panel 430mm / 550mm
Density of Sandwiches 48kg/m3
Surface Treatment Power coating,thickness of coating:30um
Heat Preservation 4.5W/m.h
Wind Resistance Beaufort scale 11, 28m/s
Noise Level: ≤60db
Sound Insulation Level 24 Db
Fire Retardation: Class A
Speed 0.2-0.4m / s
Max Dimension 12m * 8m
Sealing Performance EPDM rubber all round sealing : two side, top, bottom,between door panels
Steel cord Flexible ,3.8mm
Power Supply 380V 50Hz / 220V 50Hz
Service Life 10 years
Emergency Operation Manual Hoist Chain to open the door in case of power off
Balance System a. Balance the weight of door through the torsion spring
b. Easily manual operation: 140N to open
c. Spring brake device:Anti-broken device
d. Service Life:100 thousand open & close
e. Prolong the service life of the motor
Safety Airbag protection, door anti-fall device, wire rope anti-break protection device.
Optional Item Window,pedestrian door

Installation method

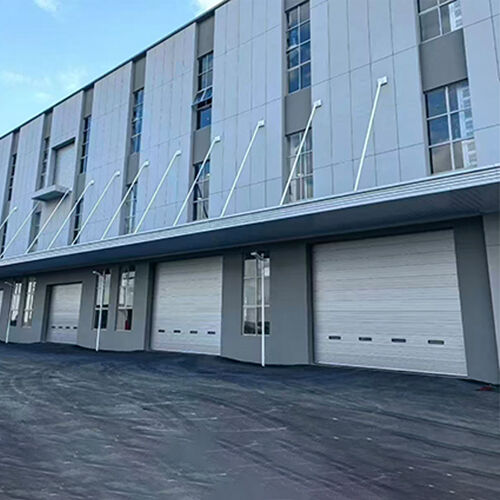

Heavy Duty Sectional Overhead Door 24dB Sound Insulation Commercial Sectional Garage Doors 0

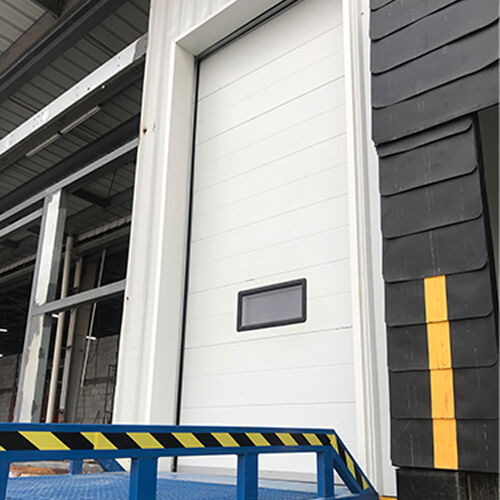

Heavy Duty Sectional Overhead Door 24dB Sound Insulation Commercial Sectional Garage Doors 1

Safety & Traffic Protection

Mechanical Safety Devices

Includes spring break and cable protection systems.

Enhanced Visibility for Mixed Traffic

Optional vision panels help prevent collisions.

Controlled Door Movement

Supports safe operation in crowded loading zones.


Operation & Control Options

Manual Operation for Smaller Openings

Suitable for secondary access points.

Automatic Operation for Main Entrances

Improves efficiency during peak trading hours.

Access Control Integration

Supports key switches or basic access management.


Application Areas in Wholesale Markets

Bulk Goods Receiving Zones

Facilitates supplier deliveries and unloading.

Internal Trading & Storage Areas

Separates sales zones from stock areas.

Shared Loading & Unloading Bays

Supports continuous vehicle and forklift movement.

Market Service & Maintenance Areas

Provides controlled access for support operations.


Customization Options

Door Size & Track Configuration

Adapted to different stall and warehouse layouts.

Windows, Pass Doors & Accessories

Improves visibility and pedestrian flow.

Surface Finish & Color Options

Supports zoning identification within large markets.


FAQ – Wholesale Markets

Are sectional overhead doors suitable for high-traffic wholesale areas?

Yes, they are designed for frequent industrial operation.

Can multiple vendors use the same door?

Yes, automatic or controlled access options support shared use.

Is insulation necessary in wholesale markets?

Insulation depends on whether the area is enclosed or temperature-sensitive.


Get a Door Solution for Wholesale Markets

Wholesale Facility Consultation

Support for selecting doors based on traffic and layout.

Bulk Supply & Project Support

Ideal for large wholesale centers and market developments.
