Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
Sectional Overhead Door

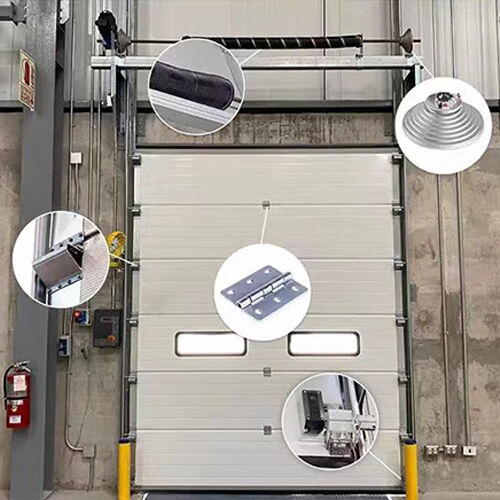

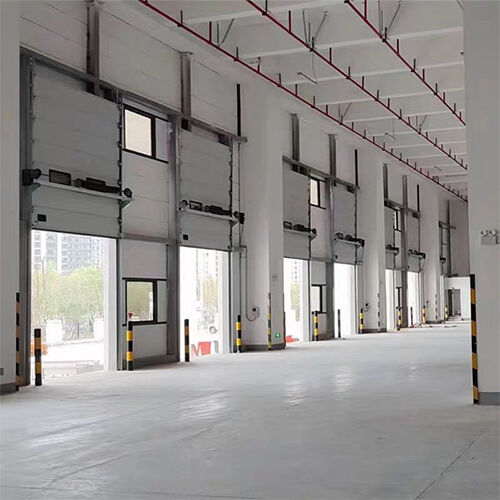

E-commerce fulfillment centers operate under constant pressure for speed and accuracy. Doors in these facilities must support fast material movement, frequent opening cycles, and seamless coordination with automated systems. An Industrial Sectional Overhead Door provides a reliable lift-up solution that improves internal logistics flow while maintaining durability and space efficiency.
Fulfillment centers require doors that can handle repeated daily operation without performance loss.
Sectional overhead doors help separate zones while keeping logistics pathways clear.
The door opens upward along tracks, leaving aisles and conveyor paths unobstructed.
Designed to support high-cycle use common in e-commerce environments.
Compatible with conveyors, AGVs, and sorting systems.
Steel or aluminum panels withstand constant warehouse activity.
Ensures balanced lifting and long-term operational stability.
Helps maintain controlled internal conditions and reduce airflow disturbance.
| Item | Description |
|---|---|
| Material | SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral | 0.326 / 0.45mm / 0.55mm / 0.6mm |
| Thickness of Guiding Rail | Gualvanized Steel,thickness: 2mm |
| Thickness of Panel | 40mm / 50mm |
| Width of Panel | 430mm / 550mm |
| Density of Sandwiches | 48kg/m3 |
| Surface Treatment | Power coating,thickness of coating:30um |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort scale 11, 28m/s |
| Noise Level: | ≤60db |
| Sound Insulation Level | 24 Db |
| Fire Retardation: | Class A |
| Speed | 0.2-0.4m / s |
| Max Dimension | 12m * 8m |
| Sealing Performance | EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord | Flexible ,3.8mm |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years |
| Emergency Operation | Manual Hoist Chain to open the door in case of power off |
| Balance System | a. Balance the weight of door through the torsion spring b. Easily manual operation: 140N to open c. Spring brake device:Anti-broken device d. Service Life:100 thousand open & close e. Prolong the service life of the motor |
| Safety | Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item | Window,pedestrian door |
Supports unloading and material intake operations.
Separates workflows while allowing fast access.
Maintains organized movement between processing stages.
Facilitates efficient order release and vehicle loading.
Adapted to building height and workflow design.
Improves efficiency and personnel movement.
Matches warehouse branding and functional zoning.
Suitable for steel structures and high-bay warehouses.
Designed to minimize downtime in busy fulfillment centers.
Yes, it is designed for frequent operation in logistics environments.
Yes, automatic sectional doors can integrate with conveyors and controls.
Insulated options are recommended for climate-controlled fulfillment areas.
Professional guidance for layout and door selection.
Support for large-scale fulfillment and logistics projects.
|
|
|
