| MOQ: | IUNIT |
| Price: | Negotiable |
| Standard Packaging: | plywood package |
| Delivery Period: | 10~15DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 300 unit per month |

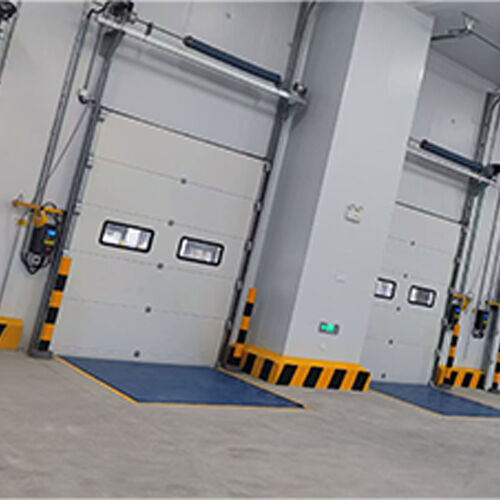

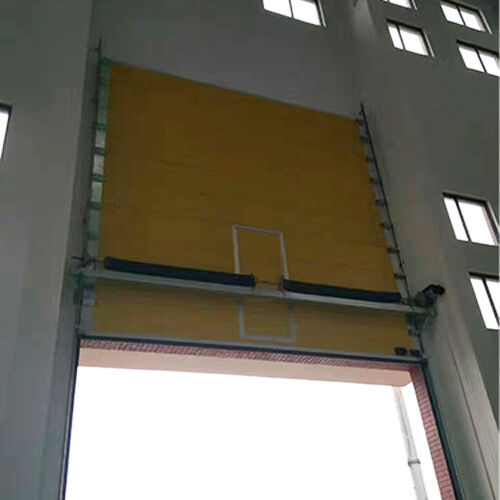

Multi-tenant industrial buildings accommodate multiple companies operating within the same facility. These shared environments require doors that offer reliable access control, space efficiency, and durability while adapting to different tenant needs. The Industrial Sectional Overhead Door provides flexible operation and long-term performance for shared industrial spaces.
Each tenant may have different workflows and schedules. A Sectional Lift-up Door allows independent access without interfering with neighboring units.
The vertical opening design preserves interior and exterior space, making it ideal for compact or shared loading and traffic areas.
Suitable for light manufacturing, warehousing, assembly, and logistics tenants within the same building.
Durable components minimize service frequency, lowering long-term maintenance costs.
Uniform door design improves overall building aesthetics and management efficiency.
|
Item |
Description |
|
Material |
SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
|
Thickness of Panel Mateiral |
0.326 / 0.45mm / 0.55mm / 0.6mm |
|
Thickness of Guiding Rail |
Gualvanized Steel,thickness: 2mm |
|
Thickness of Panel |
40mm / 50mm |
|
Width of Panel |
430mm / 550mm |
|
Density of Sandwiches |
48kg/m3 |
|
Surface Treatment |
Power coating,thickness of coating:30um |
|
Heat Preservation |
4.5W/m.h |
|
Wind Resistance |
Beaufort scale 11, 28m/s |
|
Noise Level: |
≤60db |
|
Sound Insulation Level |
24 Db |
|
Fire Retardation: |
Class A |
|
Speed |
0.2-0.4m / s |
|
Max Dimension |
12m * 8m |
|
Sealing Performance |
EPDM rubber all round sealing : two side, top, bottom,between door panels |
|
Steel cord |
Flexible ,3.8mm |
|
Power Supply |
380V 50Hz / 220V 50Hz |
|
Service Life |
10 years |
|
Emergency Operation |
Manual Hoist Chain to open the door in case of power off |
|
Balance System |
a. Balance the weight of door through the torsion spring |
|
Safety |
Airbag protection, door anti-fall device, wire rope anti-break protection device. |
|
Optional Item |
Window,pedestrian door |
![]()
![]()
Steel or aluminum sectional panels withstand daily use by different tenants.
Ensures smooth operation even with varying usage intensity across units.
Supports continuous use in shared industrial environments.
Includes spring break and cable break devices for shared-use safety.
Improves visibility in shared corridors and loading zones.
Supports key switches, remote controls, and access systems for tenant-level management.
Cost-effective solution for storage or low-frequency access areas.
Motorized operation improves efficiency in busy tenant spaces.
Separates operational areas while maintaining easy access.
Supports organized logistics flow among multiple users.
Acts as a reliable industrial partition door.
Provides controlled access to shared technical areas.
Yes, they are widely used in multi-tenant facilities due to flexibility and durability.
Yes, doors can be configured with separate access systems.
No, heavy-duty design ensures low maintenance under shared use.
|
|
|
