| MOQ: | IUNIT |
| Price: | Negotiable |
| Standard Packaging: | plywood package |
| Delivery Period: | 10~15DAYS |
| Payment Method: | T/T |
| Supply Capacity: | 300 unit per month |
The main entrances of factories are critical for both logistics efficiency and security. Entrances must accommodate heavy vehicle traffic, frequent forklift operations, and large equipment movement. Our Industrial Lift-up Door, also known as a Sectional Overhead Door, offers durable construction, smooth operation, and high reliability to meet the demands of busy factory main entrances.

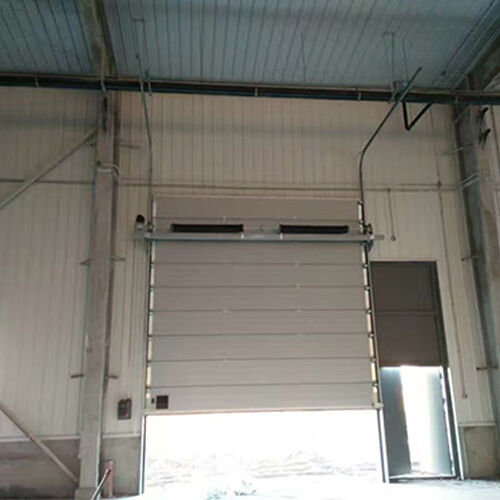

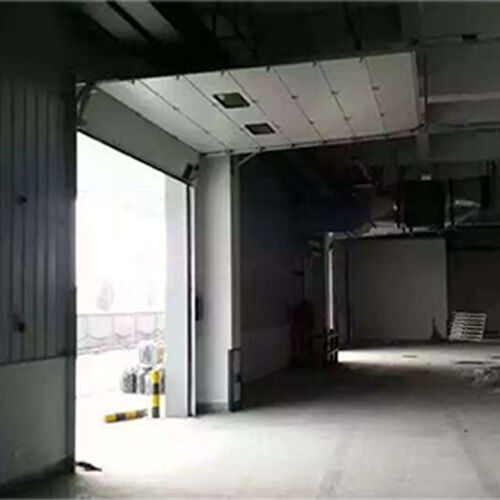

A Sectional Overhead Door is made of multiple horizontal panels that lift vertically along overhead tracks. This Factory Lift-up Door design saves space while allowing large vehicles and equipment to pass easily.
Equipped with torsion springs or motorized drives, the Industrial Lift-up Door with Tracks operates smoothly and reliably, even under frequent heavy-duty usage.
Main entrances see continuous truck and forklift activity. Heavy Duty Industrial Doors are built to withstand this stress while maintaining long-term performance.
Quick opening and closing speeds reduce waiting times for logistics operations.
Vertical lifting panels keep the floor area free, allowing seamless vehicle and equipment movement.
|
Item |
Description |
|
Material |
SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
|
Thickness of Panel Mateiral |
0.326 / 0.45mm / 0.55mm / 0.6mm |
|
Thickness of Guiding Rail |
Gualvanized Steel,thickness: 2mm |
|
Thickness of Panel |
40mm / 50mm |
|
Width of Panel |
430mm / 550mm |
|
Density of Sandwiches |
48kg/m3 |
|
Surface Treatment |
Power coating,thickness of coating:30um |
|
Heat Preservation |
4.5W/m.h |
|
Wind Resistance |
Beaufort scale 11, 28m/s |
|
Noise Level: |
≤60db |
|
Sound Insulation Level |
24 Db |
|
Fire Retardation: |
Class A |
|
Speed |
0.2-0.4m / s |
|
Max Dimension |
12m * 8m |
|
Sealing Performance |
EPDM rubber all round sealing : two side, top, bottom,between door panels |
|
Steel cord |
Flexible ,3.8mm |
|
Power Supply |
380V 50Hz / 220V 50Hz |
|
Service Life |
10 years |
|
Emergency Operation |
Manual Hoist Chain to open the door in case of power off |
|
Balance System |
a. Balance the weight of door through the torsion spring |
|
Safety |
Airbag protection, door anti-fall device, wire rope anti-break protection device. |
|
Optional Item |
Window,pedestrian door |
![]()
Panels are available in Steel Sectional Door or aluminum variants, both resistant to impacts and industrial wear.
Ensures stability and smooth operation for frequent daily cycles.
Designed for busy factory entrances with multiple openings per hour.
Effective sealing protects interior spaces from dust, drafts, and external weather conditions.
Ideal for standard entrance zones where insulation is not critical.
Insulated Lift-up Doors provide thermal control for offices or storage areas connected to main entrances.
Insulated panels help minimize noise from external traffic entering production areas.
Facilitates smooth inbound logistics for trucks and forklifts.
Supports efficient outbound operations without workflow interruptions.
Ensures safe and quick access for heavy equipment.
Insulated panels improve energy efficiency and indoor comfort for connected office areas.
Select high-cycle doors for busy main entrances.
Insulated doors recommended for temperature-sensitive areas.
Motorized doors are preferred for main entrances with high traffic volume.
Yes, they are ideal for high-traffic, heavy-duty entrances.
Yes, designed for continuous industrial use.
Yes, insulated doors maintain temperature and noise control.
Yes, size, panels, insulation, and controls are fully customizable.
We provide expert guidance for selecting doors for factory main entrances.
Supports large-scale orders and OEM customization for industrial clients.
|
|
|
