Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
Sectional Overhead Door

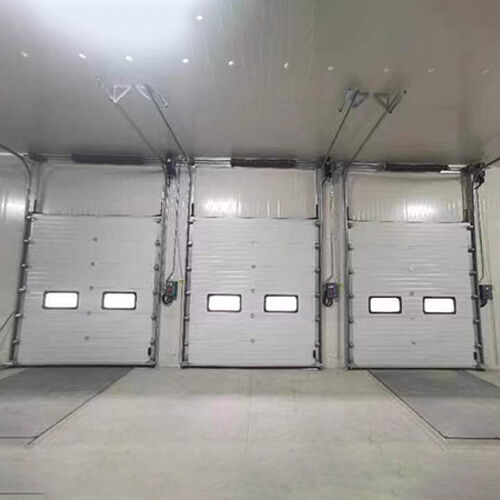

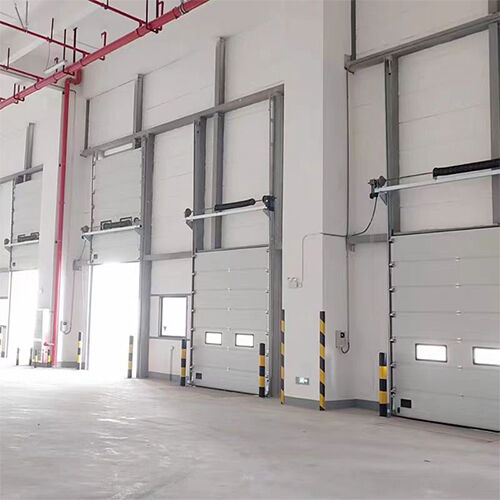

Industrial parks and zones often house multiple manufacturing, warehousing, and logistics operations. Entrances need to accommodate heavy vehicle traffic, large-scale deliveries, and diverse industrial activities. Our Industrial Lift-up Door, also known as a Sectional Overhead Door, is designed to deliver durability, efficient access, and operational safety across large industrial complexes.
Options include Steel Sectional Doors or lightweight aluminum panels suitable for different industrial applications.
High-quality tracks and torsion springs provide stable lifting for large door panels.
Built to handle dozens of cycles per day, suitable for industrial zones with continuous operation.
Effective seals prevent dust, drafts, and temperature fluctuations from affecting indoor operations.
|
|
| Item | Description |
|---|---|
| Material | SUS 304 Stainless Steel,Aluminium Alloy,Color Coating Plate |
| Thickness of Panel Mateiral | 0.3 - 0.6mm Color-Coated Steel |
| Thickness of Guiding Rail | Gualvanized Steel,thickness: 2mm |
| Thickness of Panel | 40mm / 50mm / 80mm |
| Width of Panel | 430mm / 550mm |
| Density of Sandwiches | 48kg/m3 |
| Surface Treatment | Power coating,thickness of coating:30um |
| Heat Preservation | 4.5W/m.h |
| Wind Resistance | Beaufort scale 11, 28m/s |
| Noise Level: | ≤60db |
| Sound Insulation Level | 24 Db |
| Fire Retardation: | Class A |
| Speed | 10-15 m / min |
| Max Dimension | 12m * 8m |
| Sealing Performance | EPDM rubber all round sealing : two side, top, bottom,between door panels |
| Steel cord | Flexible ,3.8mm |
| Power Supply | 380V 50Hz / 220V 50Hz |
| Service Life | 10 years |
| Emergency Operation | Manual Hoist Chain to open the door in case of power off |
| Balance System | a. Balance the weight of door through the torsion spring b. Easily manual operation: 140N to open c. Spring brake device:Anti-broken device d. Service Life:100 thousand open & close e. Prolong the service life of the motor |
| Safety | Airbag protection, door anti-fall device, wire rope anti-break protection device. |
| Optional Item | Window,pedestrian door |
Facilitates smooth loading and unloading of goods.
Reliable access for raw materials and finished products.
Supports high-frequency truck and forklift movement.
Provides safe and controlled access to workshops and service bays.
Optional insulated doors improve energy efficiency and comfort in office sections.
Contact Us:
Whatsapp:+8618021983369
Oem service:
Welcome customized size
We are experience factory for OEM&ODM service
Yes, they are ideal for multi-building zones with heavy traffic.
Yes, designed for high-frequency industrial use.
Insulated options are available for offices, storage, or climate-sensitive zones.
Yes, size, panel type, insulation, and control systems are fully customizable.
|
|
|
We provide guidance on layout, specifications, and industrial door selection.
Supports large-scale orders and OEM customization for distributors and industrial contractors.
