Place of Origin:
China
Brand Name:
YOHO
Certification:
ISO 9001/CE
Model Number:
Insulated High-Speed Door

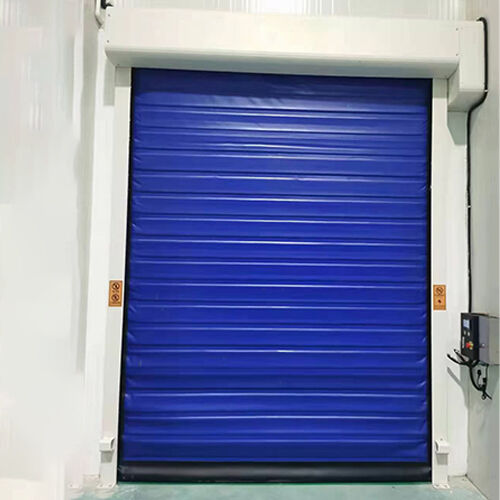

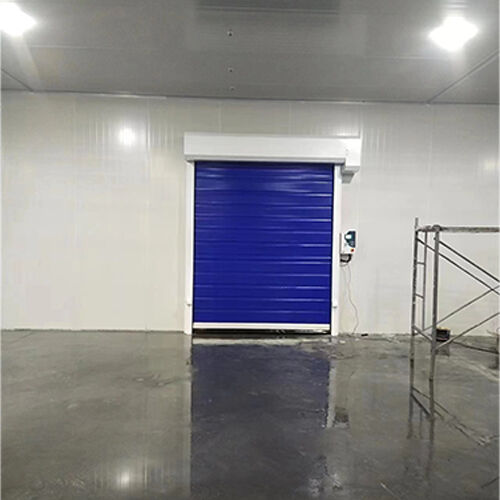

The Insulated High-Speed Door for indoor energy-saving passages is designed to reduce energy loss, maintain temperature stability, and improve workflow efficiency in industrial and commercial facilities.
This door is ideal for internal passages connecting different zones, such as workshops, warehouses, and processing areas, where maintaining ambient temperature and reducing energy consumption is critical. The door combines thick insulated PVC curtain (7–12 mm) with robust galvanized steel or stainless steel frame, ensuring fast operation, energy efficiency, and reliable safety protection.
| Parameter | Description |
| Material | PVC curtain / Galvanized steel / Stainless steel |
| Maximum Door Size | Width: 1000–6000 mm; Height: 1500–6000 mm |
| Operating Speed | Opening: 0.6–1.2 m/s (adjustable); Closing: 0.6 m/s (adjustable) |
| Curtain Thickness & Color | 7-12mm mm thick PVC curtain; available in Blue, Orange, Gray |
| Motor Power | 0.75-3.8kW (depends on door size and speed) |
| Temperature Range | Under normal temperature conditions, the temperature must not be lower than 5°C. |
| Sealing Performance | High-quality brush seals on tracks; bottom EPDM seal for superior sealing |
| Wind Resistance | Up to Class 6 (reinforceable to Class 8) |
| Manual Operation | Can be manually opened with a wrench during power failure or malfunction |
| Power Requirements | 220V / 13A, Single-phase, 50–60Hz; IP54 control box; complies with electrical safety standards |
| Protection & Insulation | IP54 rating for water and dust protection; suitable for harsh environments |
| Control & Switching Options | Standard: one-button switch with emergency stop; Optional: Radar sensor, Ground magnetic sensor, Pull-rope switch, Remote control |
The Insulated High-Speed Door is ideal for indoor passages where energy saving and temperature stability are required:
No. This door is designed for ambient-temperature indoor passages only, not for sub-zero or refrigerated environments.
The insulated PVC curtain and tight sealing reduce air exchange between zones, minimizing energy loss from HVAC systems.
Yes. The door supports hundreds or thousands of cycles per day without performance degradation.
Yes. Frame material (galvanized steel or stainless steel), curtain thickness, and door dimensions can all be tailored to your facility requirements.
The main advantage of this insulated high-speed door lies in its thick PVC insulated curtain:
This ensures stable internal temperatures and significant energy savings in indoor passages.
|
|
|
