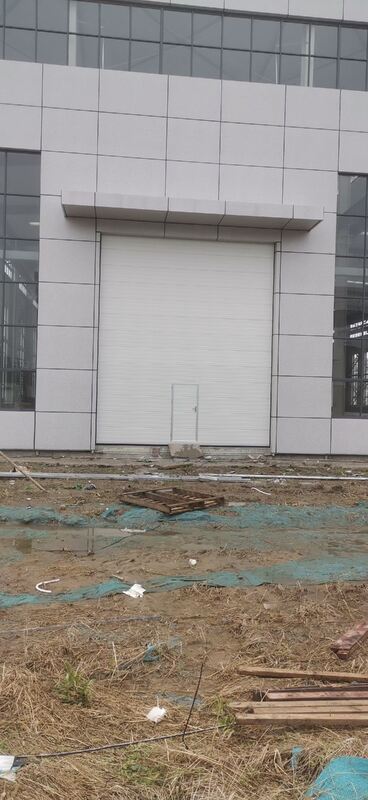

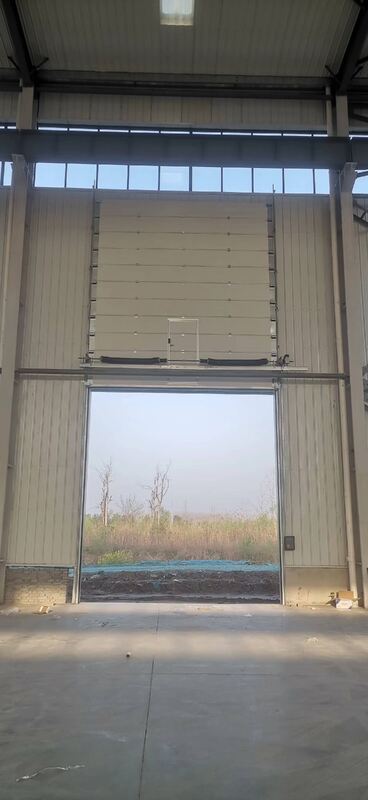

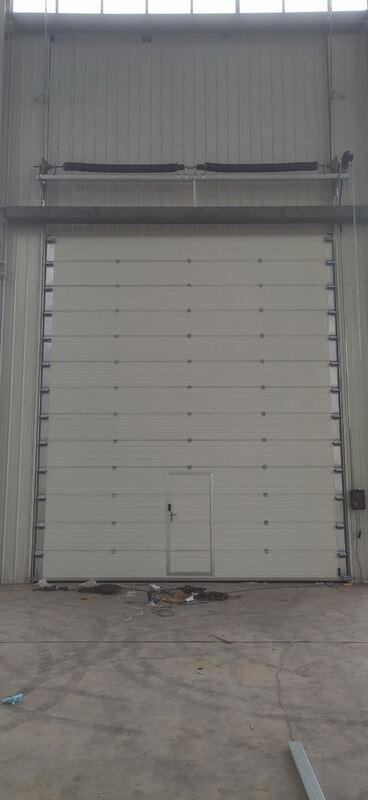

Integrated Pedestrian Door Industrial Sectional Overhead Door with 24dB Sound Insulation and Level 7-8 Wind Resistance

Integrated Pedestrian Door Industrial Sectional Overhead Door with 24dB Sound Insulation and Level 7-8 Wind Resistance

Integrated Pedestrian Door

Staff Access Overhead Door

Wicket Door Sectional Overhead

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

Sectional Overhead Door

Chat Now
Request A Quote
Integrated Pedestrian Door Industrial Sectional Overhead Door with 24dB Sound Insulation and Level 7-8 Wind Resistance Integrated Pedestrian Door Industrial Sectional Overhead Door with 24dB Sound Insulation and Level 7-8 Wind Resistance Integrated Pedestrian Door Industrial Sectional Overhead Door with 24dB Sound Insulation and Level 7-8 Wind Resistance
Product Details
Product Name:
Sectional Overhead Door
Pedestrian Door Type:
Integrated Wicket Door
Pedestrian Door Features:
Lock And Self-closing Hinge
Panel Material:
SUS 304 Stainless Steel / Color-Coated Steel Plate
Panel Thickness:
40mm / 50mm / 80mm
Wind Resistance:
Level 7-8
Speed:
0.2-0.4m/s
Torsion Spring:
30,000+ Cycles
Sound Insulation:
24dB
Application:
Facility Staff Access Corridors
Highlight:

Integrated Pedestrian Door

,

Staff Access Overhead Door

,

Wicket Door Sectional Overhead

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiable
Packaging Details
Plywood case
Delivery Time
10-15 Days
Payment Terms
T/T
Supply Ability
300 Units per Month
Related Products
Good price Flexible Lift Configuration Industrial Sectional Overhead Door for Low-Headroom Building Openings with 24dB Sound Insulation online

Flexible Lift Configuration Industrial Sectional Overhead Door for Low-Headroom Building Openings with 24dB Sound Insulation

Chat Now
Good price Anti-Drop Protection Industrial Sectional Overhead Door with Wire-Rope Anti-Break and Spring Anti-Broken Devices online

Anti-Drop Protection Industrial Sectional Overhead Door with Wire-Rope Anti-Break and Spring Anti-Broken Devices

Chat Now
Good price Anti-Drop Protection Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and 24dB Sound Insulation online

Anti-Drop Protection Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and 24dB Sound Insulation

Chat Now
Good price Anti-Pinch Anti-Drop Quiet Operation Industrial Sectional Overhead Door for Safety Facility Entrances online

Anti-Pinch Anti-Drop Quiet Operation Industrial Sectional Overhead Door for Safety Facility Entrances

Chat Now
Contact Us
86--18021983369
yohao260105@gmail.com
Chat Now
Product Description
Integrated Pedestrian Door Industrial Sectional Overhead Door For Facility Staff Access Corridors
An Integrated Pedestrian Door Industrial Sectional Overhead Door is designed for facility staff access corridors where personnel need a quick, safe route in and out. A walk-through wicket door is built into the overhead panel, so employees can pass through without activating the main door, reducing wear and saving energy.
A Cleaner Route for Staff Movement
The integrated pedestrian door provides a dedicated personnel passage within the sectional door itself. This avoids cutting a separate opening into the building envelope and keeps the corridor sealed. The wicket door matches the panel's insulation and finish for a consistent, professional appearance.
Key Advantages
Separate Pedestrian Passage
Staff move through the corridor using the integrated wicket door, independent of the vehicle-grade main opening.
Reduced Motor Wear and Energy Use
Frequent short entries no longer require cycling the full door, extending motor life and lowering running costs.
Consistent Insulation and Finish
The pedestrian door shares the panel's sandwich construction, EPDM sealing, and surface finish for uniform performance.
Secure and Easy to Operate
A lock and self-closing hinge keep the passage secure, while balanced operation makes daily use effortless.
Product Specifications
Panel Material SUS 304 Stainless Steel / Color-Coated Steel Plate
Panel Thickness 40mm / 50mm / 80mm
Guiding Rail Galvanized steel, 2mm
Panel Width 430mm / 550mm
Pedestrian Door Integrated wicket door with lock and self-closing hinge
Wind Resistance Level 7-8
Speed 0.2-0.4m/s
Torsion Spring Life 30,000+ cycles
Sound Insulation 24dB
Sealing EPDM rubber all-round sealing
Power Supply 380V 50Hz / 220V 50Hz
Operating Automatic with manual chain hoist backup
Typical Applications
  • Facility staff access corridors
  • Personnel passages beside vehicle entrances
  • Office-to-warehouse transition doors
  • Buildings needing combined vehicle and pedestrian access
  • Facilities prioritizing energy-efficient staff movement
Frequently Asked Questions
Can staff enter without opening the main door?
Yes. The integrated pedestrian door provides a dedicated walk-through passage at all times.
Which panel materials and thicknesses are available?
Panels are offered in SUS 304 stainless steel or color-coated steel plate, with 40mm, 50mm, or 80mm thickness options.
Does the pedestrian door affect insulation?
No. It shares the panel construction and all-round sealing, so insulation is maintained.
Is it suitable for heavy daily use?
Yes. It is designed for frequent personnel traffic and reduces wear on the main door motor.
Get a Quote for Sectional Overhead Doors with Integrated Pedestrian Door
We provide technical consultation, OEM services, and bulk order solutions for industrial sectional overhead doors with an integrated pedestrian door for facility staff access corridors.
