Integrated Pedestrian Door Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and Sound Insulation 24dB for High-Traffic Warehouses

Integrated Pedestrian Door Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and Sound Insulation 24dB for High-Traffic Warehouses

Integrated Pedestrian Door

High Traffic Warehouse Door

Sectional Door Personnel Access

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

Sectional Overhead Door

Chat Now
Request A Quote
Integrated Pedestrian Door Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and Sound Insulation 24dB for High-Traffic Warehouses Integrated Pedestrian Door Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and Sound Insulation 24dB for High-Traffic Warehouses Integrated Pedestrian Door Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and Sound Insulation 24dB for High-Traffic Warehouses
Product Details
Product Name:
Sectional Overhead Door
Pedestrian Door Type:
Integrated Wicket Door
Pedestrian Door Features:
Lock And Self-closing Hinge
Panel Material:
SUS 304 Stainless Steel / Color-Coated Steel Plate
Panel Thickness:
40mm / 50mm / 80mm
Wind Resistance:
Level 7-8
Speed:
0.2-0.4m/s
Torsion Spring:
30,000+ Cycles
Sound Insulation:
24dB
Application:
High-Traffic Warehouse Entrances
Highlight:

Integrated Pedestrian Door

,

High Traffic Warehouse Door

,

Sectional Door Personnel Access

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiable
Packaging Details
Plywood case
Delivery Time
10-15 Days
Payment Terms
T/T
Supply Ability
300 Units per Month
Related Products
Good price Flexible Lift Configuration Industrial Sectional Overhead Door for Low-Headroom Building Openings with 24dB Sound Insulation online

Flexible Lift Configuration Industrial Sectional Overhead Door for Low-Headroom Building Openings with 24dB Sound Insulation

Chat Now
Good price Anti-Drop Protection Industrial Sectional Overhead Door with Wire-Rope Anti-Break and Spring Anti-Broken Devices online

Anti-Drop Protection Industrial Sectional Overhead Door with Wire-Rope Anti-Break and Spring Anti-Broken Devices

Chat Now
Good price Anti-Drop Protection Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and 24dB Sound Insulation online

Anti-Drop Protection Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and 24dB Sound Insulation

Chat Now
Good price Anti-Pinch Anti-Drop Quiet Operation Industrial Sectional Overhead Door for Safety Facility Entrances online

Anti-Pinch Anti-Drop Quiet Operation Industrial Sectional Overhead Door for Safety Facility Entrances

Chat Now
Contact Us
86--18021983369
yohao260105@gmail.com
Chat Now
Product Description
Integrated Pedestrian Door Industrial Sectional Overhead Door For High-Traffic Warehouse Entrances

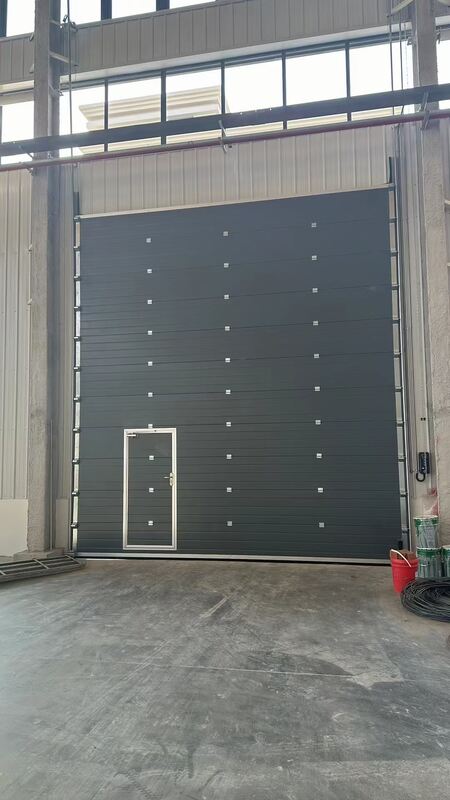

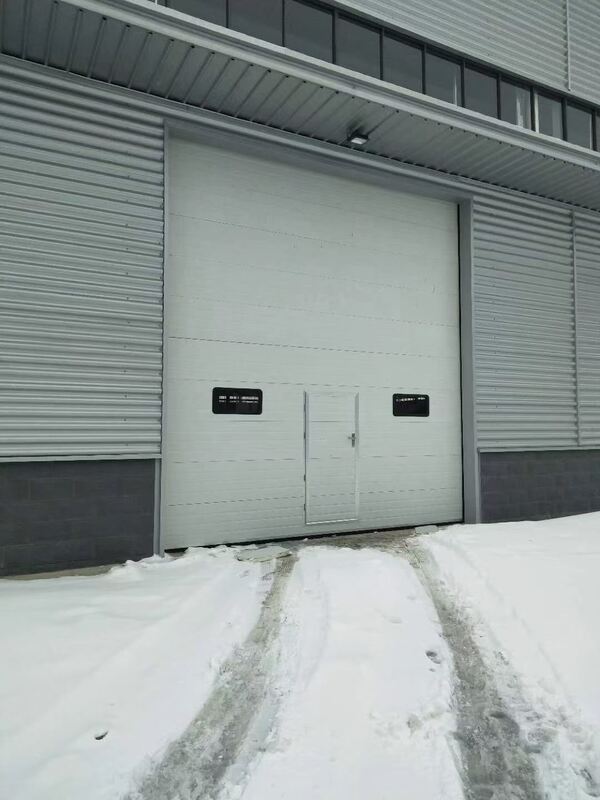

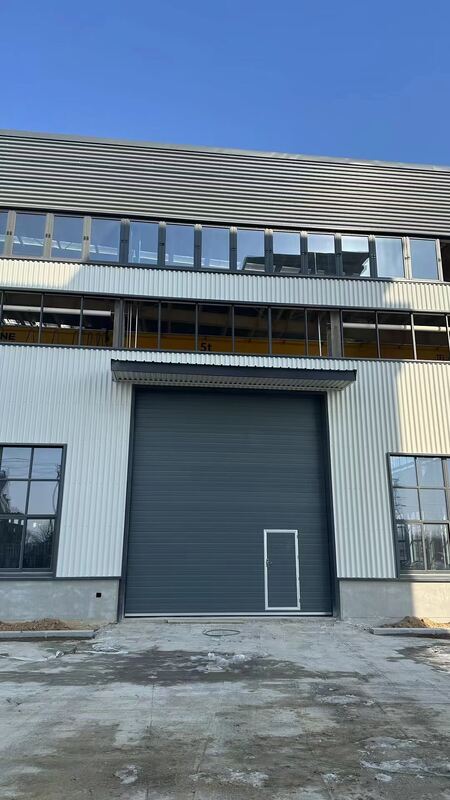

An Integrated Pedestrian Door Industrial Sectional Overhead Door combines a full-size sectional overhead door with a built-in walk-through wicket door in one panel. Staff can enter and exit freely without opening the main door, which speeds up daily traffic at busy warehouse entrances while keeping the building sealed against wind, dust, and heat loss.
One Door, Two Access Modes
The integrated pedestrian door is built directly into a reinforced section of the overhead panel. It shares the same insulation, sealing, and surface finish, so there is no need for a separate opening in the wall. Personnel use the wicket door for quick foot traffic, while vehicles use the full opening when loading or unloading.
Key Advantages
  • Fast Daily Personnel Traffic: A dedicated walk-through door lets staff move in and out quickly without the motor cycling the full door up and down all day.
  • Sealed and Insulated Opening: The integrated wicket shares the panel construction and all-round EPDM sealing, so insulation performance is not compromised.
  • Reinforced Panel Structure: The section around the pedestrian door is reinforced to maintain panel rigidity and smooth track operation.
  • Safety-Compliant Design: Equipped with a self-closing hinge and lock, keeping the pedestrian passage secure and closed when not in use.
Product Specifications
Panel Material SUS 304 Stainless Steel / Color-Coated Steel Plate
Panel Thickness 40mm / 50mm / 80mm
Guiding Rail Galvanized steel, 2mm
Panel Width 430mm / 550mm
Pedestrian Door Integrated wicket door with lock and self-closing hinge
Wind Resistance Level 7-8
Speed 0.2-0.4m/s
Torsion Spring Life 30,000+ cycles
Sound Insulation 24dB
Sealing EPDM rubber all-round sealing
Power Supply 380V 50Hz / 220V 50Hz
Operating Automatic with manual chain hoist backup
Typical Applications
  • High-traffic warehouse personnel entrances
  • Distribution centers with constant staff movement
  • Facilities requiring separate vehicle and pedestrian access
  • Buildings where wall space for a second door is limited
  • Loading bays with frequent driver and staff entry
Frequently Asked Questions
Why choose an integrated pedestrian door?
It provides separate walk-through access without cutting a second opening in the wall or opening the full door each time.
Which panel materials and thicknesses are available?
Panels are offered in SUS 304 stainless steel or color-coated steel plate, with 40mm, 50mm, or 80mm thickness options.
Is the pedestrian door secure?
Yes. It is fitted with a lock and self-closing hinge to keep the passage closed and secure.
Can the position of the wicket door be customized?
Yes. The pedestrian door position can be arranged to suit site traffic flow.
We provide technical consultation, OEM services, and bulk order solutions for industrial sectional overhead doors with an integrated pedestrian door for high-traffic warehouse entrances.
