Space-Saving Vertical-Opening Industrial Sectional Overhead Door with Wind Resistance Level 7-8 for Narrow Urban Warehouses

Space-Saving Vertical-Opening Industrial Sectional Overhead Door with Wind Resistance Level 7-8 for Narrow Urban Warehouses

Space Saving Vertical Opening

Narrow Footprint Overhead Door

Ceiling Track Sectional Door

Place of Origin:

China

Brand Name:

YOHO

Certification:

ISO 9001/CE

Model Number:

Sectional Overhead Door

Chat Now
Request A Quote
Space-Saving Vertical-Opening Industrial Sectional Overhead Door with Wind Resistance Level 7-8 for Narrow Urban Warehouses Space-Saving Vertical-Opening Industrial Sectional Overhead Door with Wind Resistance Level 7-8 for Narrow Urban Warehouses Space-Saving Vertical-Opening Industrial Sectional Overhead Door with Wind Resistance Level 7-8 for Narrow Urban Warehouses
Product Details
Product Name:
Sectional Overhead Door
Opening Type:
Vertical-Opening (Ceiling Track)
Panel Material:
SUS 304 Stainless Steel / Color-Coated Steel Plate
Panel Thickness:
40mm / 50mm / 80mm
Wind Resistance:
Level 7-8
Speed:
0.2-0.4m/s
Torsion Spring:
30,000+ Cycles
Sound Insulation:
24dB
Application:
Narrow Urban Warehouses
Highlight:

Space Saving Vertical Opening

,

Narrow Footprint Overhead Door

,

Ceiling Track Sectional Door

Payment & Shipping Terms
Minimum Order Quantity
1 Unit
Price
Negotiable
Packaging Details
Plywood case
Delivery Time
10-15 Days
Payment Terms
T/T
Supply Ability
300 Units per Month
Related Products
Good price Flexible Lift Configuration Industrial Sectional Overhead Door for Low-Headroom Building Openings with 24dB Sound Insulation online

Flexible Lift Configuration Industrial Sectional Overhead Door for Low-Headroom Building Openings with 24dB Sound Insulation

Chat Now
Good price Anti-Drop Protection Industrial Sectional Overhead Door with Wire-Rope Anti-Break and Spring Anti-Broken Devices online

Anti-Drop Protection Industrial Sectional Overhead Door with Wire-Rope Anti-Break and Spring Anti-Broken Devices

Chat Now
Good price Anti-Drop Protection Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and 24dB Sound Insulation online

Anti-Drop Protection Industrial Sectional Overhead Door with Wind Resistance Level 7-8 and 24dB Sound Insulation

Chat Now
Good price Anti-Pinch Anti-Drop Quiet Operation Industrial Sectional Overhead Door for Safety Facility Entrances online

Anti-Pinch Anti-Drop Quiet Operation Industrial Sectional Overhead Door for Safety Facility Entrances

Chat Now
Contact Us
86--18021983369
yohao260105@gmail.com
Chat Now
Product Description

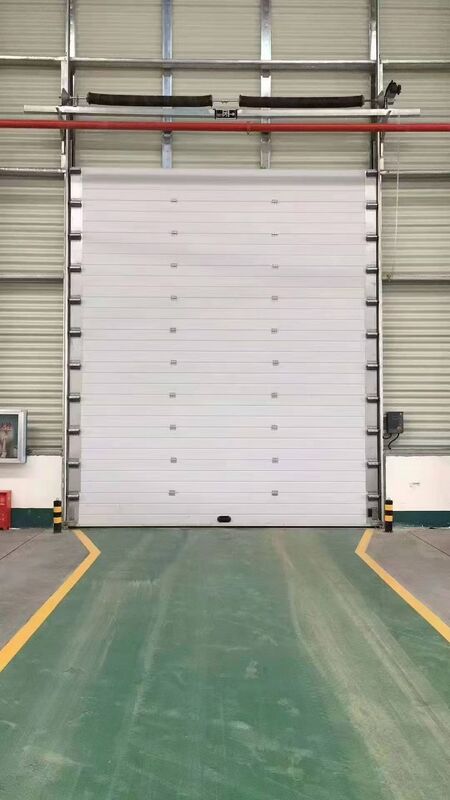

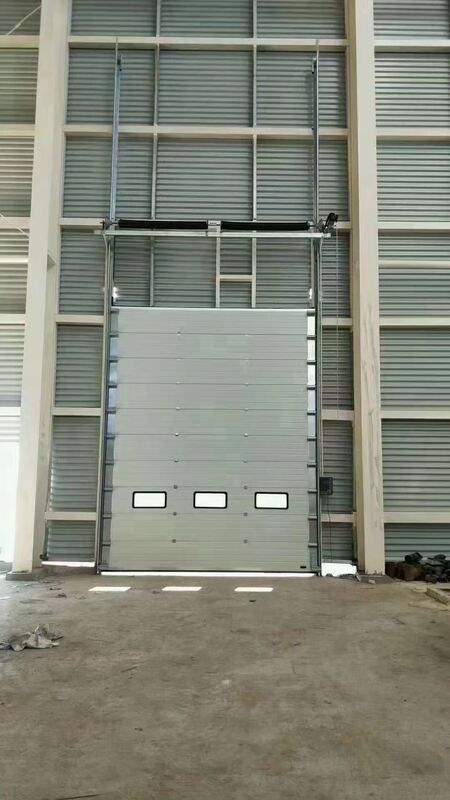

Space-Saving Vertical-Opening Industrial Sectional Overhead Door For Narrow Urban Warehouses
A Space-Saving Vertical-Opening Industrial Sectional Overhead Door is engineered for urban warehouses and distribution facilities where floor area and aisle width are limited. Instead of swinging or sliding outward, the door panels travel vertically along ceiling-mounted tracks, so the full opening remains clear and no ground-level operating space is lost.
Why Vertical Opening Saves Space

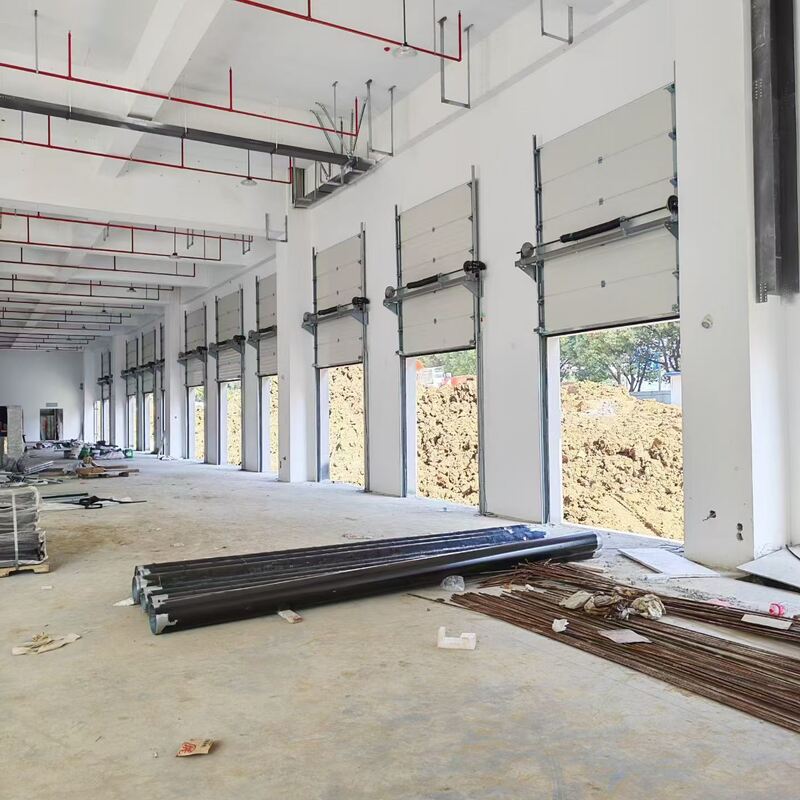

The space-saving vertical opening mechanism lifts the door panels up and back into the ceiling void, keeping the doorway footprint clear at all times. This makes the door ideal for narrow buildings where outward-swinging or sliding doors would block aisles, work zones, or vehicle routes.
Key Advantages
Zero Ground-Level Footprint
Panels glide along overhead tracks, freeing the entire approach area for forklifts, pallet jacks, and pedestrian traffic.
Built for Tight Urban Layouts
Vertical lift suits compact city warehouses where side clearance and headroom are restricted by neighboring buildings or internal racks.
Smooth Counterbalanced Operation
A torsion-spring balance system keeps the door lightweight to operate and reduces motor load for long-term energy savings.
Weather-Sealed and Insulated
Double-skinned sandwich panels with all-round EPDM sealing keep dust, water, and heat outside for a stable indoor environment.
Product Specifications
Panel Material SUS 304 Stainless Steel / Color-Coated Steel Plate
Panel Thickness 40mm / 50mm / 80mm
Guiding Rail Galvanized steel, 2mm
Panel Width 430mm / 550mm
Wind Resistance Level 7-8
Speed 0.2-0.4m/s
Torsion Spring Life 30,000+ cycles
Sound Insulation 24dB
Sealing EPDM rubber all-round sealing
Max Size Door width 1000-8000mm, height 1500-10000mm
Power Supply 380V 50Hz / 220V 50Hz
Operating Automatic with manual chain hoist backup
Typical Applications
  • Narrow urban warehouses and inner-city depots
  • Compact distribution hubs with limited aisle width
  • Retail back-of-house loading bays
  • Multi-tenant city logistics buildings
  • Facilities with restricted side clearance
Frequently Asked Questions
Does the door need space to swing or slide?
No. The panels open vertically along ceiling tracks, so no ground-level operating space is required.
Which panel materials and thicknesses are available?
Panels are offered in SUS 304 stainless steel or color-coated steel plate, with 40mm, 50mm, or 80mm thickness options.
Can it be customized for narrow openings?
Yes. Width and height are fully customizable to fit tight urban layouts.
What happens during a power failure?
A manual hoist chain allows safe door operation when power is off.
Get a Quote for Space-Saving Vertical-Opening Doors
We provide technical consultation, OEM services, and bulk order solutions for space-saving vertical-opening industrial sectional overhead doors used in narrow urban warehouses.
